StarTech.com DK30CHDDPPD Docking Station USB-C Dual 4K with 60W Power Delivery, DP x1, HDMI x1, USB-C x1, USB 3.0 x4, RJ45 x1, 3.5mm Audio x1, SD Card x1, support Apple Intel & M1 (Dual 4K) / ChromeOS / Microsoft Windows / Ubuntu, 3yr warra
StarTech.com DK30CHDDPPD Docking Station USB-C Dual 4K with 60W Power Delivery, DP x1, HDMI x1, USB-C x1, USB 3.0 x4, RJ45 x1, 3.5mm Audio x1, SD Card x1, support Apple Intel & M1 (Dual 4K) / ChromeOS / Microsoft Windows / Ubuntu, 3yr warra
- Brand: StarTech.com
- MPN: DK30CHDDPPD
- Part #: MOASTT4200226
- UPC: 065030868242
View all shipping info
- Brand: StarTech.com
- MPN: DK30CHDDPPD
- Part #: MOASTT4200226
- UPC: 065030868242
Similar in-stock products available at PB Tech right now
What PB Tech customers are saying about this product...
See More Reviews"A great little unit with good connectivity. It will be well used across a few laptops at various times. Currently allowing a smaller storage capacity laptop with limited bconnectiv ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular USB-C Docking Stations
HP Elite HP USB-C Dock G5 2X USB 2.0,2X DisplayPort,1X HDMI,1X...
Targus DOCK310 USB-C & USB 3.0 Dual 4K DisplayLink Docking...
Kensington SD4850P USB-C Triple 4K Docking Station, with 100w...
Targus DOCK182 USB-C Dual 4K DisplayLink Docking Station with...

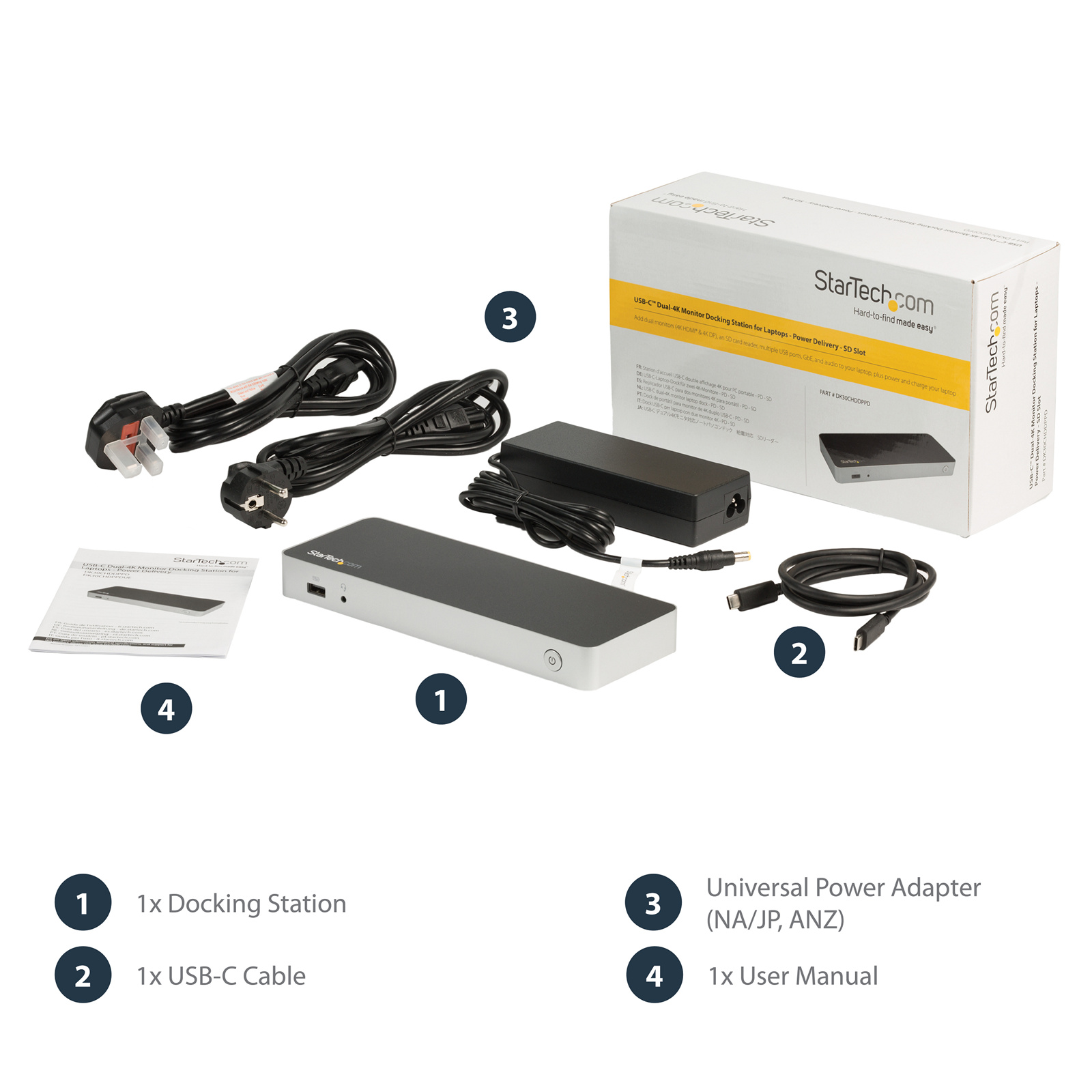

HP 5TW13AA USB-C/A Universal Dock G2 - 100 W- USB Type C, - 4 x...
StarTech.com DK30CHDDPPD Docking Station USB-C Dual 4K with 60W Power Delivery, DP x1, HDMI x1, USB-C x1, USB 3.0 x4, RJ45 x1, 3.5mm Audio x1, SD Card x1, support Apple Intel & M1 (Dual 4K) / ChromeOS / Microsoft Windows / Ubuntu, 3yr warra
- Brand: StarTech.com
- MPN: DK30CHDDPPD
- Part #: MOASTT4200226
- UPC:065030868242
Product URL: https://www.pbtech.com/au/product/MOASTT4200226/StarTechcom-DK30CHDDPPD-Docking-Station-USB-C-Dual?is-review=1
Features
https://www.startech.com/en-us/cards-adapters/dk30chddppd
Add dual monitors (4K HDMI® & 4K DP), an SD card reader, multiple USB ports, GbE, and audio to your laptop, plus power and charge your laptop
- FULL FEATURE USB-C DOCK: 4K 30Hz HDMI + 4K 30Hz DisplayPort video, 4x USB-A 5Gbps (incl. BC 1.2 fast charge port), 60W PD, Gigabit Ethernet & 3.5mm headset audio; supports 2 extended displays on Macbook Pro/Air with Intel processor or Apple M1 chip
- SUPPORT FOR SD/SDXC MEDIA: This USB-C docking station has an SD slot supporting SD/SDXC cards, great for additional storage or backup using Windows File History or MacOS Time Machine
- EASY INSTALLATION: This universal USB-C port replicator incl. a 1m (3.3ft) USB-C host cable, front facing power button, and works w/ Windows, macOS, Chrome OS, and Ubuntu
- WIDE DEVICE COMPATIBILITY: Multi monitor USB Type-C dock with HDMI & DP works w/ Thunderbolt 3 (TB3) laptops & Ultrabooks; USB-C laptops, Ultrabooks, Chromebooks (MacBooks, HP, Dell, Lenovo & Surface)
- 60W POWER DELIVERY: This USB Type-C docking station powers and charges while you work with 60W PD; great for ultrathin laptops like Lenovo ThinkPad T Series, X1 Carbon, Surface Pro7
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
This dual-monitor USB-C™ dock transforms your MacBook or Windows® laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD™ card reader slot.
The USB-C docking station features USB Power Delivery 2.0 (60W), to power and charge your laptop as you work. It's the perfect companion for your MacBook Pro or other Thunderbolt™ 3 equipped laptop.
Create a dual-4K video workstation
The USB-C dock expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink® and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:
1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz
1x 4K HDMI display at 3840 x 2160 resolution @ 30Hz

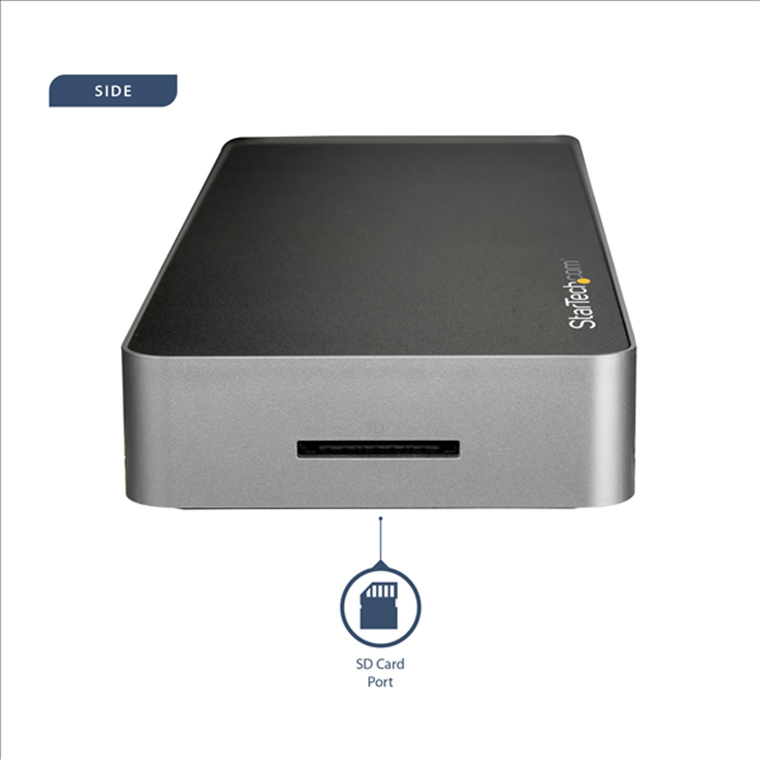

SD card reader
The dock provides direct access to your SD memory cards or microSD™ cards (with adapter). The SD card slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.
Ample connections
The dock provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and a combined 3.5 mm audio and microphone port.

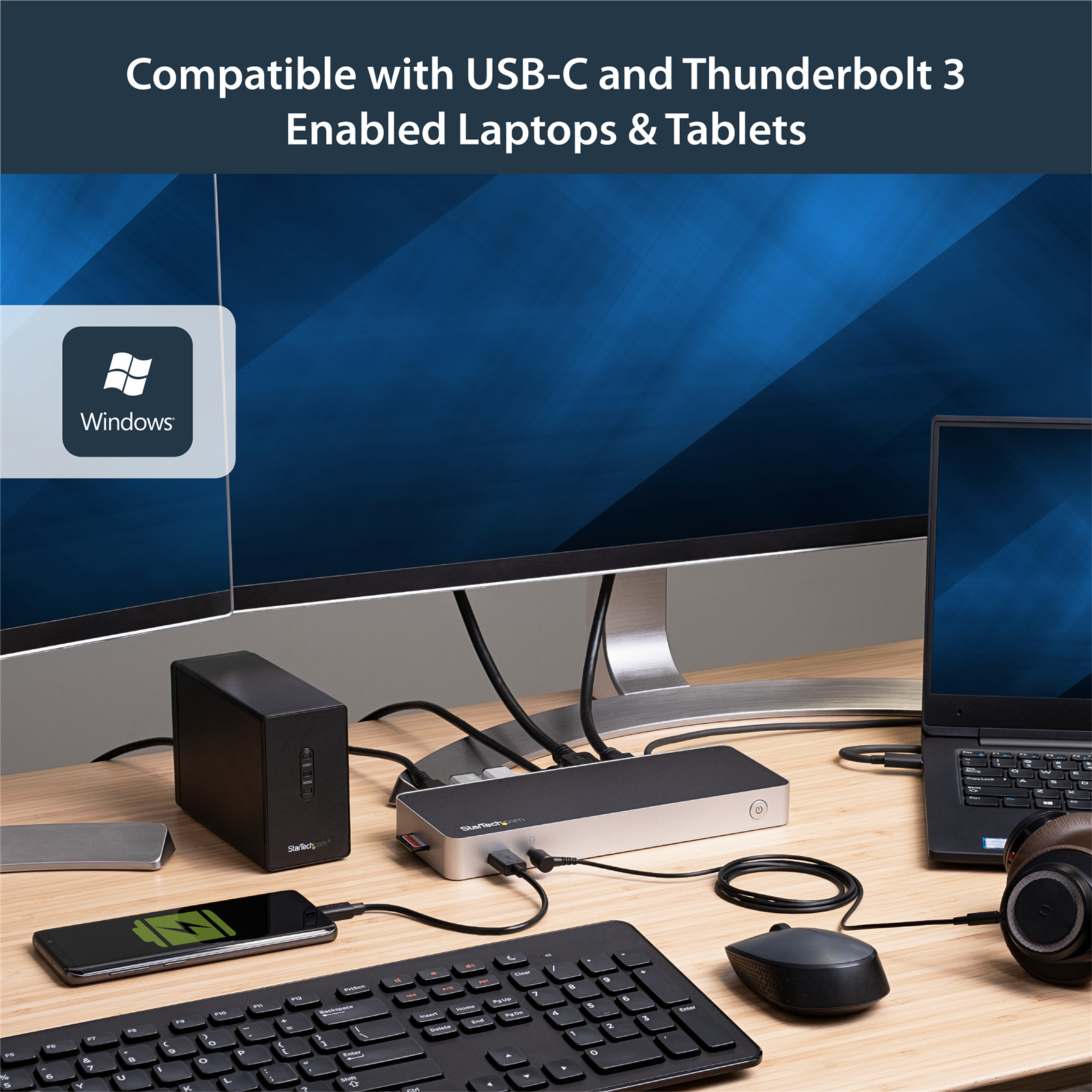

Universal support
Compatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.
Specifications
HARDWARE
4K Support
Yes
Bus Type
USB-C
Chipset ID
DisplayLink - DL-5700
Genesys Logic - GL3215
VIA Labs - VL813
Texas Instruments - TPS65983
Displays Supported
2
Fast-Charge Port(s)
Yes
Industry Standards
USB Power Delivery Specification Rev. 2.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Interface
USB 3.0
PERFORMANCE
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
General Specifications
Supports SD 4.0 and UHS-II (Ultra High Speed) for high speed file transfers, with bus speed up to 312MB/s
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
HDMI (DP Alt Mode) - 3840 x 2160p @30Hz
DisplayPort (DisplayLink) - 3840 x 2160p @30Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Memory Media Type
SD/MMC (Secure Digital/Multimedia Card)
SDHC (Secure Digital High Capacity)
SDXC (Secure Digital eXtended Capacity)
microSD (Micro Secure Digital) (adapter required)
microSDHC (Micro Secure Digital High Capacity) (adapter required)
microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes

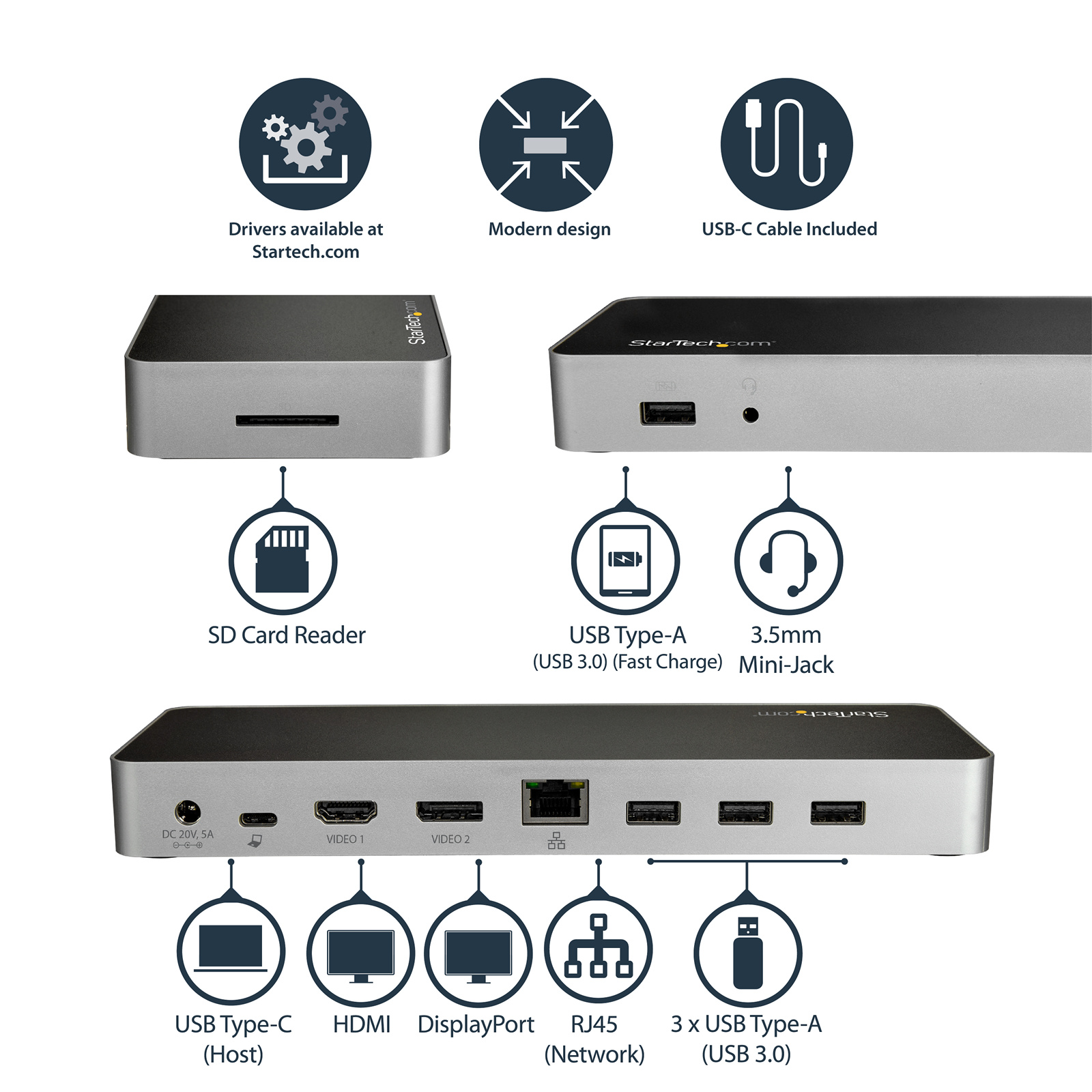

CONNECTOR(S)
Connector Type(s)
1 - DisplayPort (20 pin) Female
1 - HDMI (19 pin) Female
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
3 - USB Type-A (9 pin) USB 3.0 Female
1 - RJ-45 Female
1 - 3.5 mm Mini-Jack (4 Position) Female
1 - SD / MMC Slot Female
SOFTWARE
OS Compatibility
Windows® 7, 8, 8.1, 10
macOS 10.11 - 10.12, 10.14
Chrome OS™ v55+
SPECIAL NOTES / REQUIREMENTS
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
4K resolution is supported on both video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolutions
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
The card reader supports popular SD cards (SDSC, SDHC and SDXC including UHS cards), and is backwards compatible with older SD card versions. The card reader will also support microSD™ and miniSD™ (with adapter) and MMCmobile™, RS-MMC™ and MMCplus™ (with adapter).
System and Cable Requirements
USB-C enabled computer with an available USB Type-C port
POWER
Center Tip Polarity
Positive
Input Current
2 A
Input Voltage
100 ~ 240 AC
Output Current
5 A
Output Voltage
20V DC
Power Delivery
60W
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
0~95% RH
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)

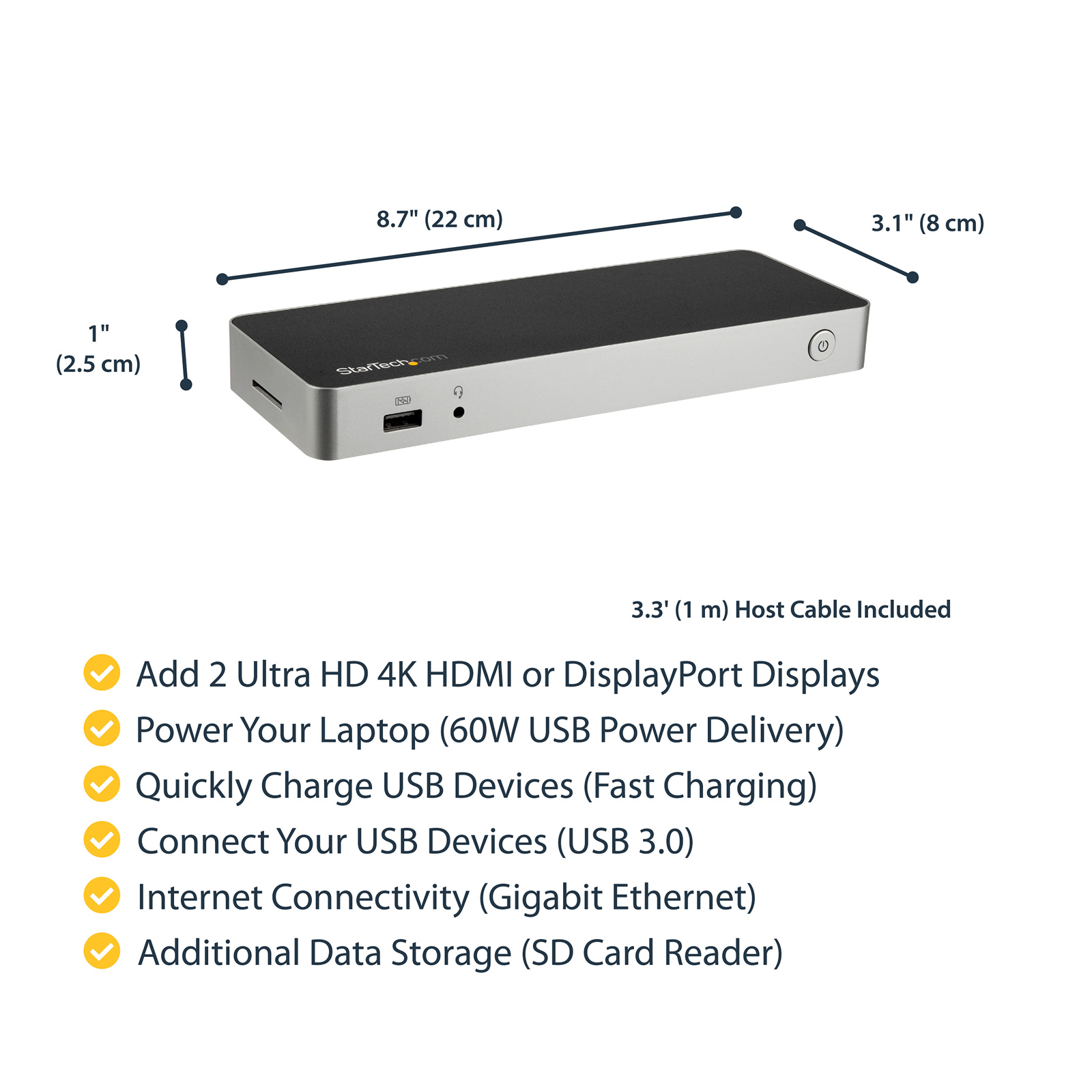

PHYSICAL CHARACTERISTICS
Cable Length
39.4 in [1000 mm]
Color
Black & Silver
Enclosure Type
Plastic
Product Height
1 in [25 mm]
Product Length
8.7 in [220 mm]
Product Weight
9.2 oz [261 g]
Product Width
3.1 in [80 mm]
PACKAGING INFORMATION
Shipping (Package) Weight
2.9 lb [1.3 kg]
