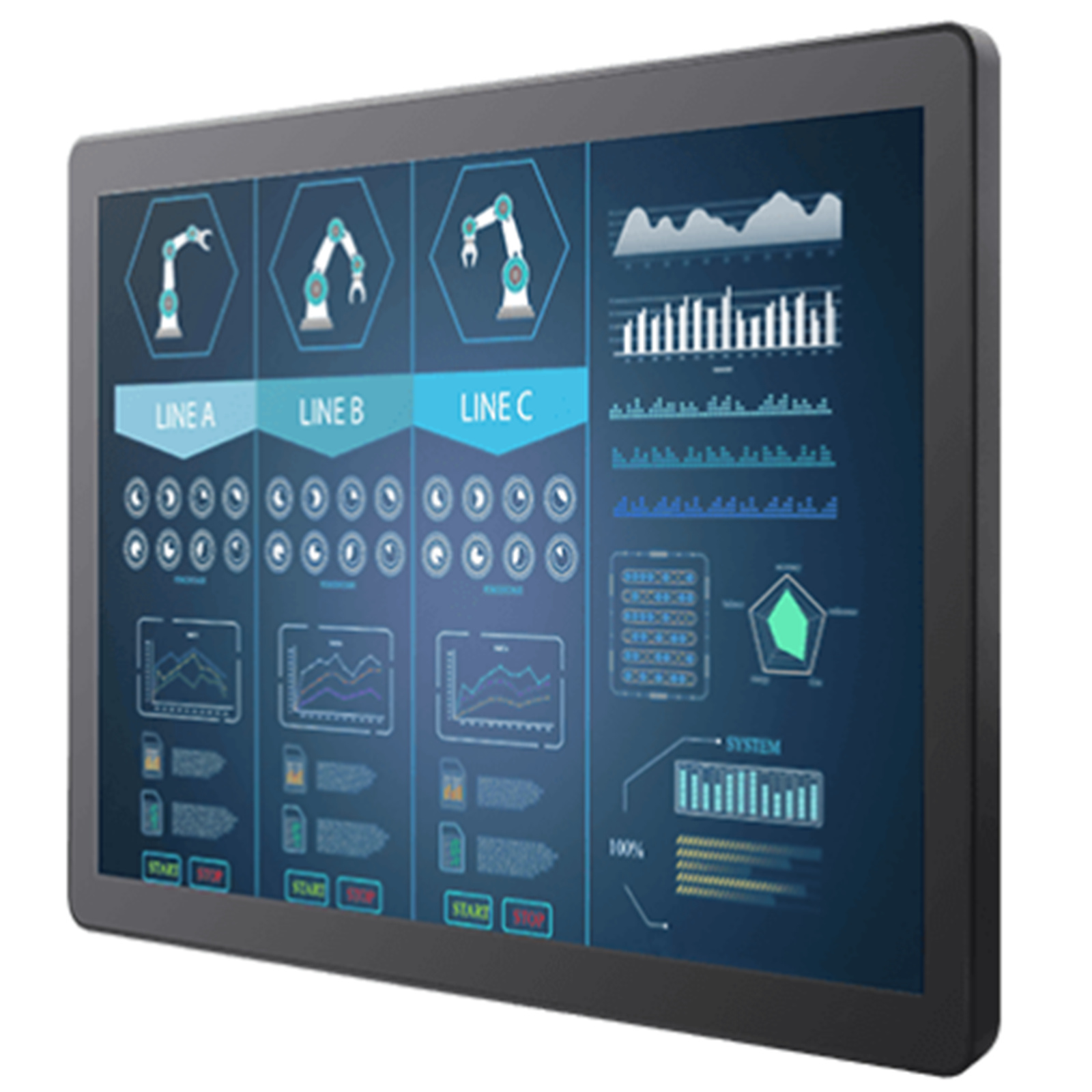

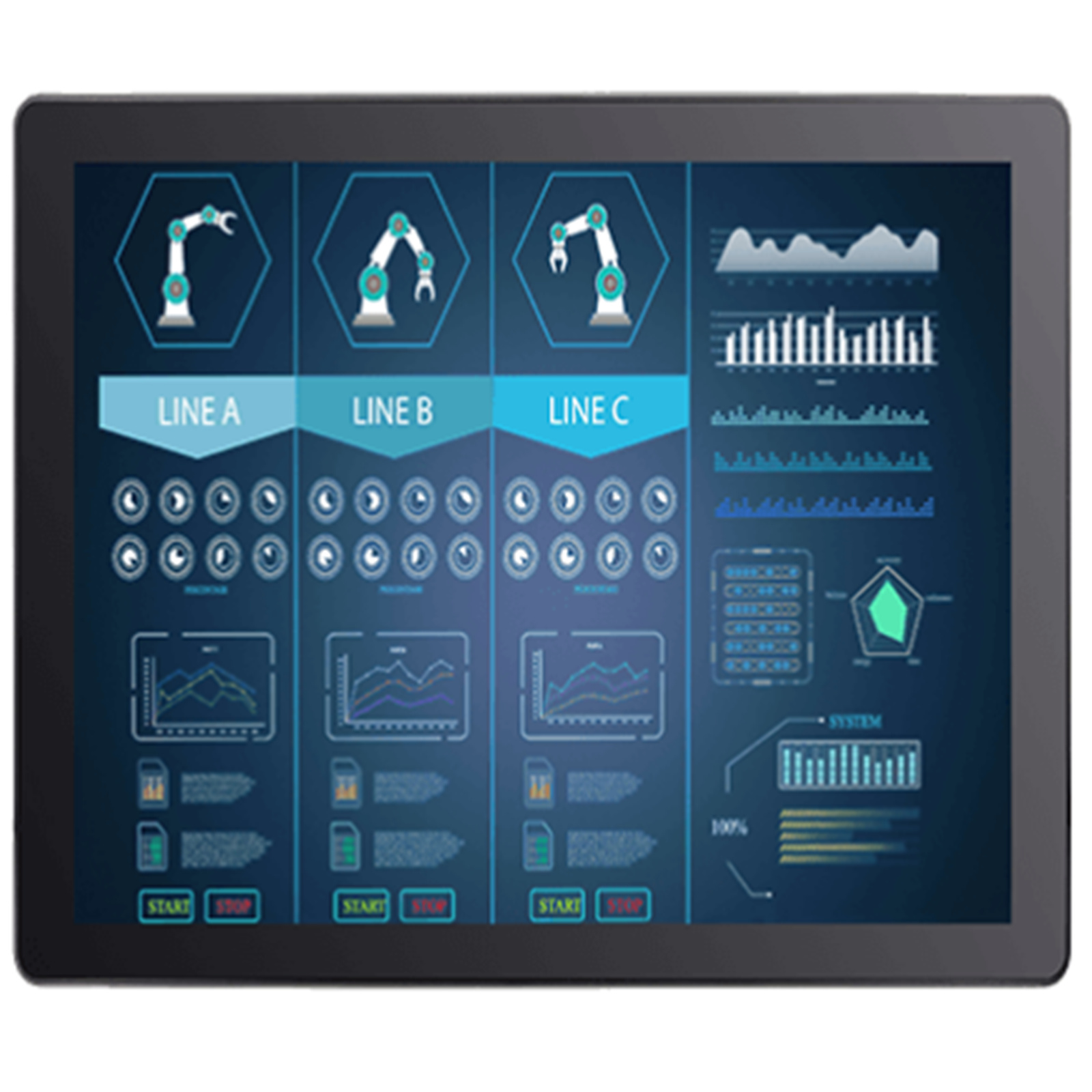

Winmate Touch Display R19L100-GCM1 19' PCAP, 1280 x 1024, 250 nits, Front IP65, 1xVGA,1 x HDMI, 1 x DVI (Optional), Fanless Design,12V DC input,VESA Mount/ Panel Mount

PB Tech price
PB Tech price
$ 1,296 .67
 +GST
$ 1,426 .34
 inc GST
$1,296.67  +GST
$1,426.34

Winmate Touch Display R19L100-GCM1 19' PCAP, 1280 x 1024, 250 nits, Front IP65, 1xVGA,1 x HDMI, 1 x DVI (Optional), Fanless Design,12V DC input,VESA Mount/ Panel Mount

  • Brand: Winmate
  • MPN: R19L100-GCM1
  • Part #: MONWMAR19L10001
  • UPC:
PB Tech price
$ 1,296 .67 $ 1,426 .34
 +GST  inc GST


Delivery: Order now and it ships on 03 Dec
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$1,296.67  +GST
$1,426.34

Features

Easy-to-Clean Flat Surface

Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.

Dust and Water Protection

The dust and waterproof display comply with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments.

Fanless Cooling System

The fanless design eliminates dust circulation for improved product longevity - especially in heavy-duty applications where dusty conditions are prevalent.

Comprehensive I/O Ports

Combining ruggedness with a range of I/O ports makes this device highly usable for heavy-duty industrial applications. Plus, the waterproof connectors come with screw-on caps for added protection.

Anti-Shock and Vibration

The G-Win series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensures the screen and housing are both rugged to the max.

- 19" 1280 x 1024 Resolution Front IP65 PCAP Display
- VGA input and HDMI input
- Projected Capacitive Multi-Touch
- Front IP65 for protection against water and dust

Specifications

Display

Size

19.0 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1280x1024

Panel Brightness

250 nits

Contrast Ratio

1000:1

View Angles

85,85,80,80

Display Color

16.7M Colors

Environment

Operating Humidity

10% to 90% (Non-Condensing)

Operating Temperature

0~50°C

Shock

40g for 11ms

Vibration

1.48/1.90/2.24 g rms for XYZ/ 5-500Hz

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB for Touch Screen

Video

1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)

Mechanical

Dimension

445 x 370 x 51 mm

Mounting

VESA Mount/ Panel Mount

Enclosure

Plastic Bezel & Metal back cover

Cooling System

Fanless Design

Accessory

Accessory

1 x VGA cable
1 x HDMI cable
100~240V AC to DC Adapter
Power Cord
Manual
VESA screws(Varies by product)

Optional Accessory

Remote Controller (Optional,Varies by product)

Power

Power Rating

12V DC input

Control

Button

5 Keys: - , + , Power , Esc , Enter

Manufacturer Part No:
R19L100-GCM1
Brand:
Product Type:
19' PCAP,
UPC
-
Product Family:
Touch Display
Shipping Weight:
6 kg
PB Part No:
MONWMAR19L10001
Product Model:
R19L100-GCM1
Warranty: 12 months *
