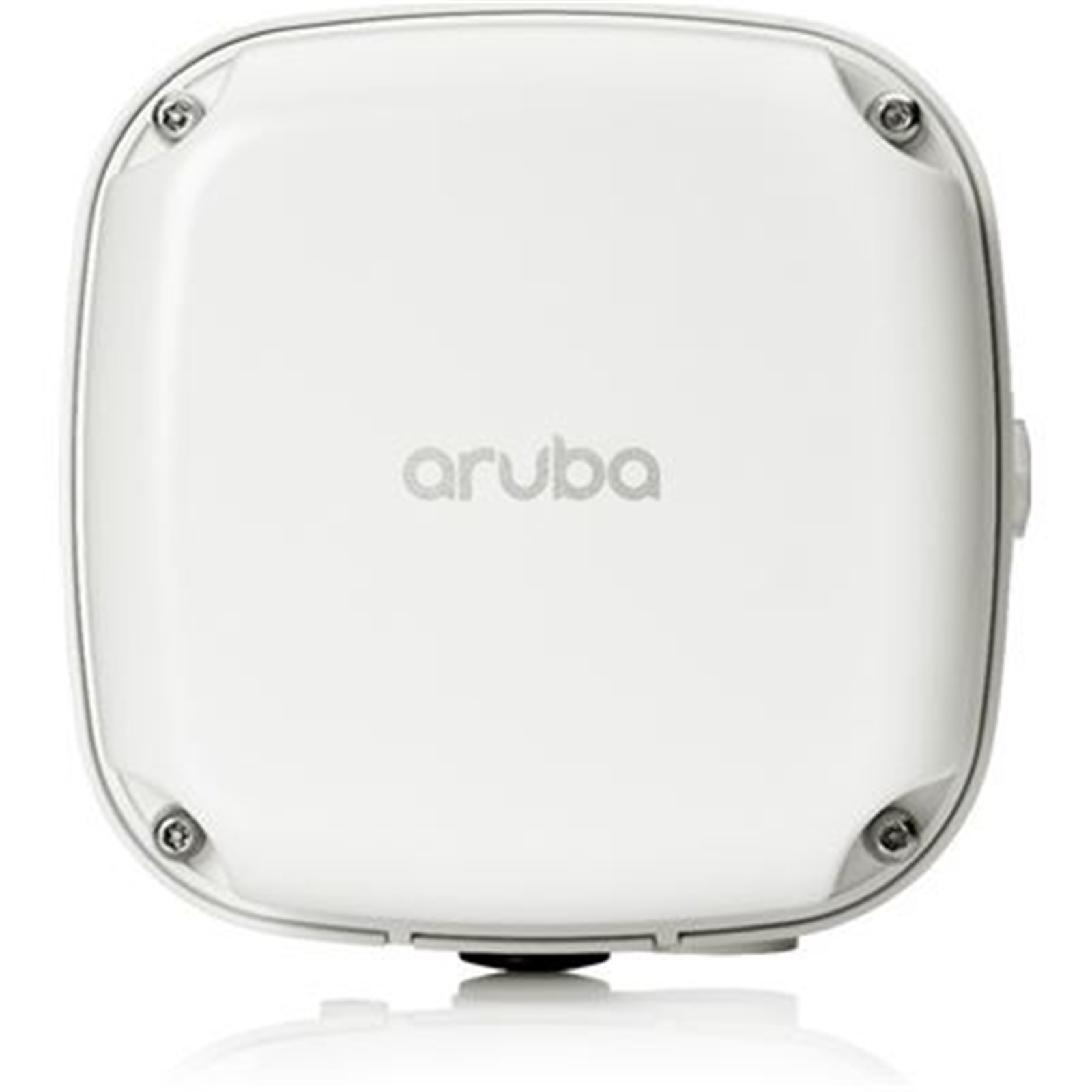

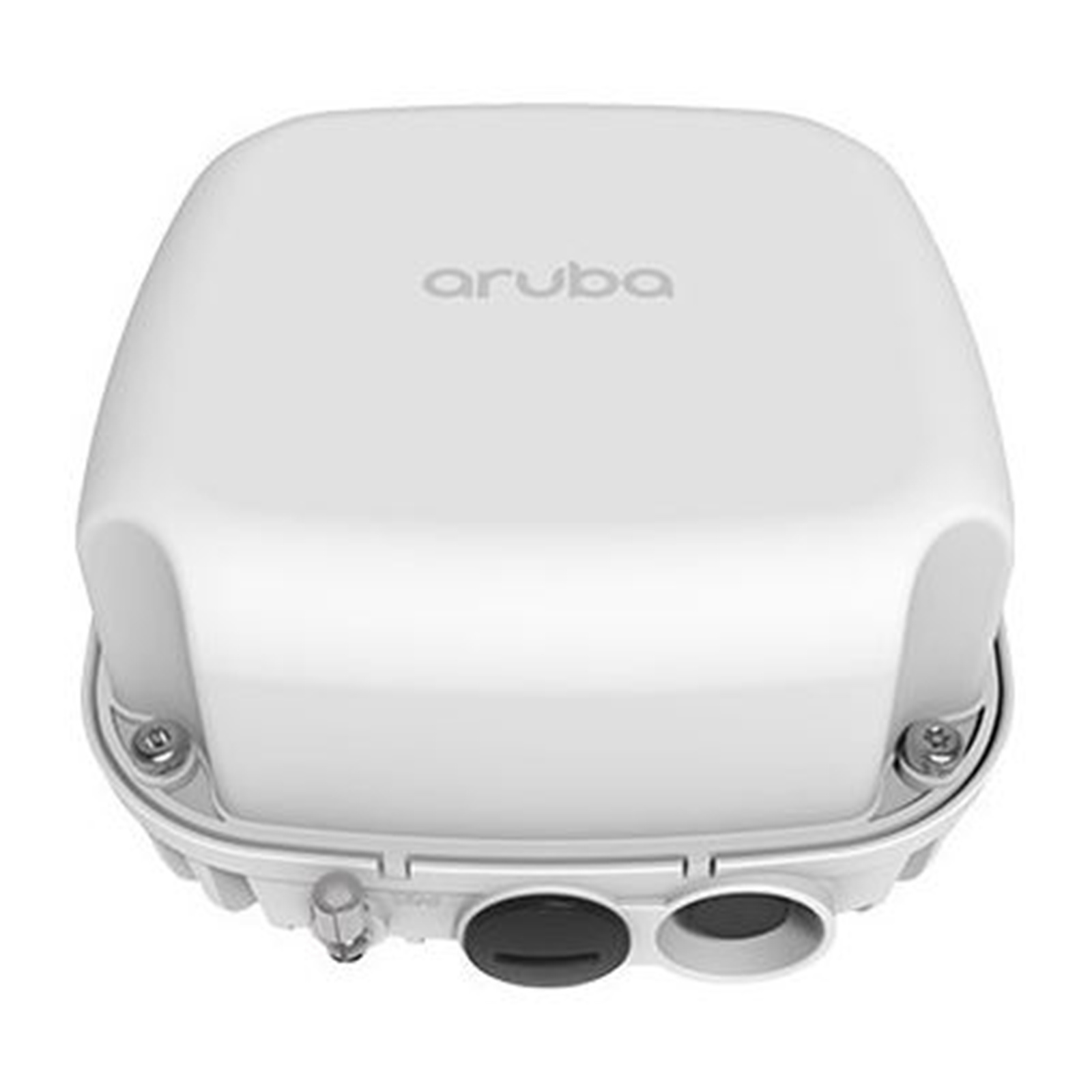

HPE AP-565 Wi-Fi 6 2x2:2 Outdoor Access Point
- Brand: HPE
- MPN: R4W43A
- Part #: NAPAUB5017241
- UPC:190017447346

Product URL: https://www.pbtech.com/au/product/NAPAUB5017241/HPE-AP-565-Wi-Fi-6-2x22-Outdoor-Access-Point
Features
The HPE Aruba R4W43A is a weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial-strength surge protection.
Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points (APs), R4W43A deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Specifications
Hardware Variants
Built-in Omni Directional Antennas
5 GHz Antennas 5.4 dBi
2.4 GHz Antennas 3.2 dBi
BLE/802.15.4 Antennas 3.3d Bi
Wi-Fi Radio Specifications
AP type
Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5GHz
Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
2.4GHz
Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
Available channels
Dependent on configured regulatory domain
Supported radio technologies
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
Supported modulation types
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n high-throughput (HT) support
HT 20/40
802.11ac very high throughput (VHT) support
VHT 20/40/80
802.11ax high efficiency (HE) support
HE20/40/80
Transmit power
Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements)
2.4 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)
5 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)
Note: conducted transmit power levels exclude antenna gain.
Maximum EIRP (limited by local regulatory requirements):
2.4 GHz band:
565: 29.2 dBm EIRP
567: 33 dBm EIRP
5 GHz band:
565: 31.4 dBm EIRP
567: 32.7 dBm EIRP
Power
Maximum (worst-case) power consumption
15.6W
Maximum (worst case) power consumption in idle mode
4.2W
Maximum (worst case) power consumption in deep-sleep mode
1.7W
Power over Ethernet (PoE+)
802.3at-compliant
Mechanical
Dimensions
16.5 cm (W) x 16.5 cm (D) x 11 cm (H), 6.5" (W) x 6.5" (D) x 4.3" (H)
Environmental
Operating temperature
-40° C to +55° C (-40° F to +140° F) with full solar loading
Operating humidity
5% to 95% non-condensing internal
Storage and transportation temperature:
-40° C to +70° C (-40° F to +158° F)
