Features

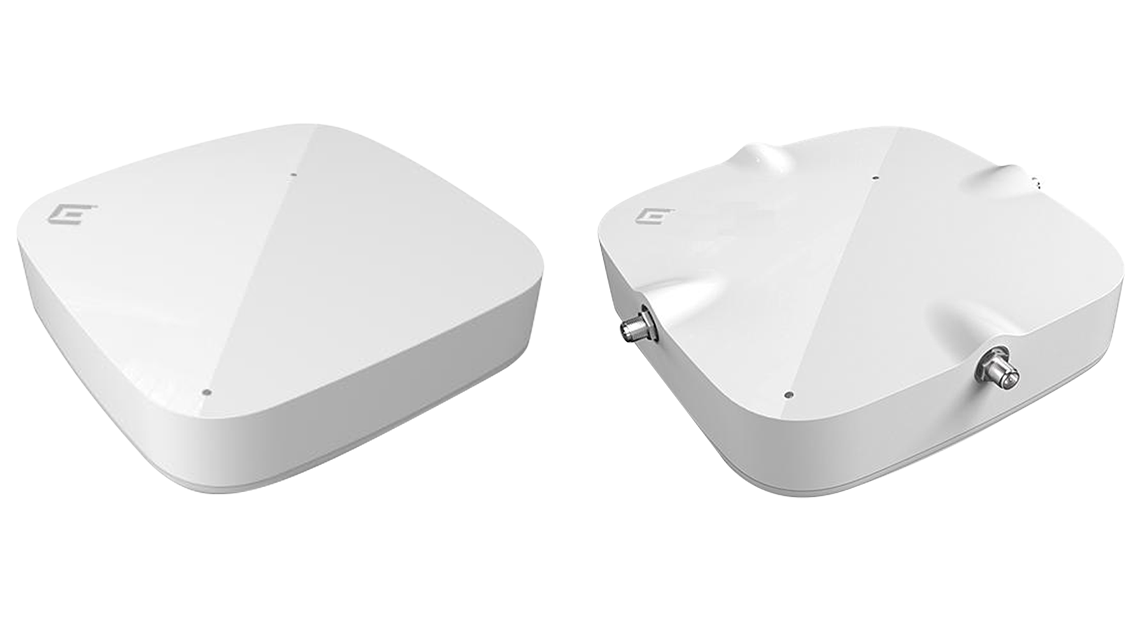

305C/CX Access Point
Advanced System On a Chip (SOC) radio technology delivers Wi-Fi 6 data rates up to 2.4 Gbps concurrently on both the 2.4 GHz and 5 GHz radios.
Software Selectable Radios (SSR)
Support for 5 GHz and 2.4 GHz concurrent, or dual 5 GHz operation delivers optimal radio management to provide the highest level of client performance.
Optimal RF Management User Experience
Adaptive RF management with AI/ML functionality provide intelligent selection of the best channels and transmit power for an optimal user experience.
Contextualized Security and Performance Optimization
User, device, and application profiling at the edge of the network identifies and fine-tunes network access and performance based on role and privileges, ensuring secure, compliant, and high-performance wireless connectivity.
For more information: https://www.extremenetworks.com/product/ap305c/
Specifications
Interfaces
(1) Autosensing 10/100/1000 BASE-T Ethernet PoE
(Power over Ethernet 802.3af) Port
USB2.0, Type A 5V, 0.9A
USB power <= 500 mA - 802.3af
USB power > 500 mA - 802.3at
Power Options
Power Draw: Typical: 9.98 W; Max: 11.28 W (w/o USB)
Typical: 14.98 W; Max: 16.28 W (w/USB)
802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45
power input pins: Wires 4,5,7,8 or 1,2,3,6)
Support 802.3af/802.3at Power over Ethernet injector
Power Specifications
IEEE 802.3af PoE Power
Physical
AP 305C: 5.2" x 5.2" x 1.5" (133mm x 133mm x 37mm)
AP 305CX: 5.8" x 5.8" x 1.5" (147mm x 147mm x 39mm)
AP 305C and AP 305CX: .9 lbs (.4kg)
TPM Chip
Antennas
AP305C - Internal Antennas
(3) Integrated dual band 2.4/5GHz omnidirectional antennas
(1) Integrated single band 5GHz omnidirectional antenna
AP305CX - External Antennas
(4) external omnidirectional 2.4/5 GHz dual band antennas
(RP SMA connectors)
Mounting
AP support 15/16 flush ceiling tile and is integrated to AP
Wall Mount sold as an accessory
Ceiling Tile Recessed 15/16" sold as an accessory
Built-in slot for Kensington type locks
Environmental
Operating: 0 to 40 °C, Storage: -40 to 70 °C
Humidity: 10% to 95% (non-condensing)
Environmental Discharge
+/-8 kV (contact discharge)/+/-15 kV (Air Discharge)
Environmental Compliance
UL2043 - Plenum Rated
Regulatory Compliance
Product Safety Certifications
IEC 62368/60950-1, EN 62368/60950-1, USA 62368/60950-1, AS/NZS
62368/60950.1
RoHS Directive 2011/65/EU
