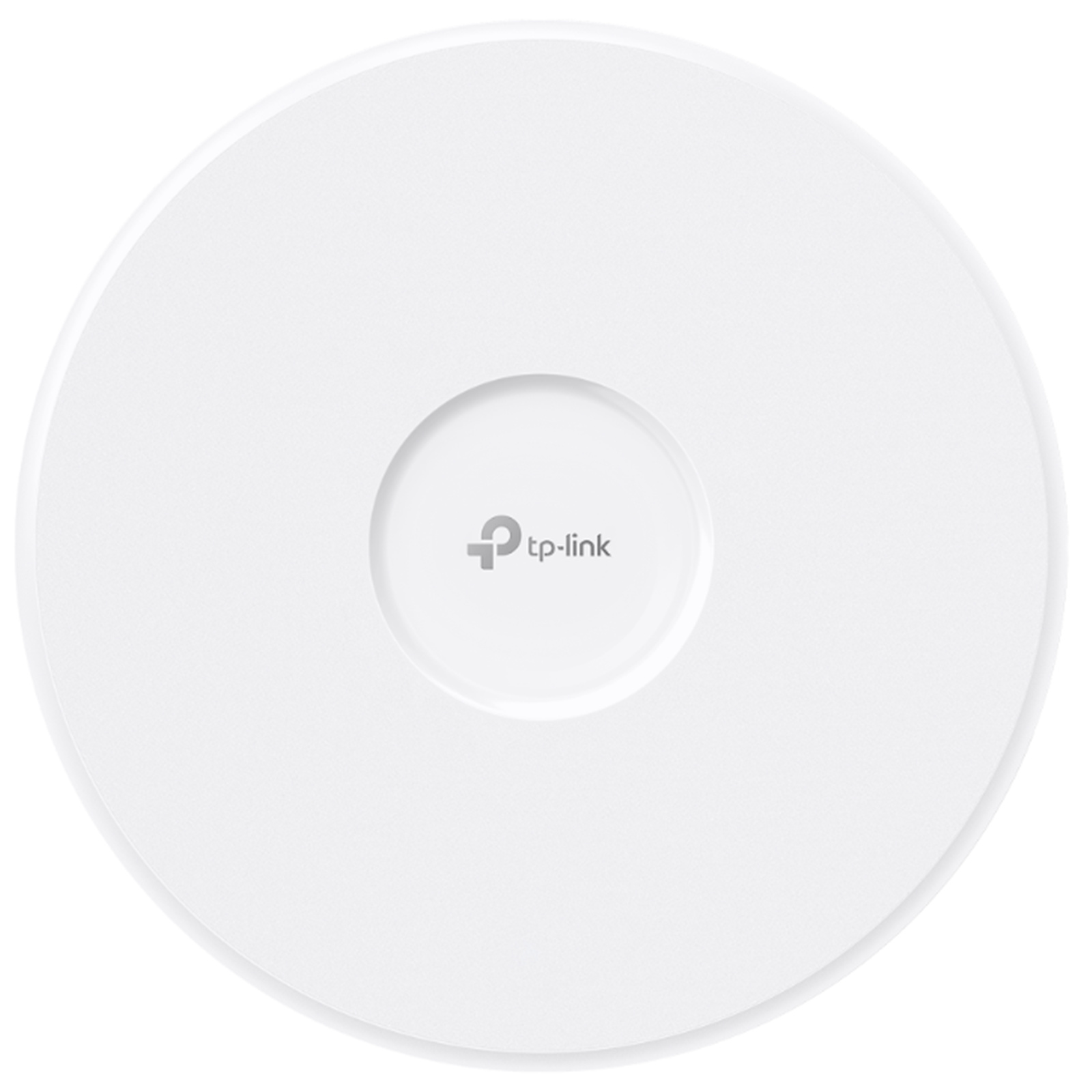

TP-Link Omada EAP783 (BE19000) Tri-Band 12-Stream Wi-Fi 7 Access Point with 10GbE x2 (PoE++ 39W)
TP-Link Omada EAP783 (BE19000) Tri-Band 12-Stream Wi-Fi 7 Access Point with 10GbE x2 (PoE++ 39W)
- Brand: TP-Link
- MPN: EAP783
- Part #: NAPTPL7831
- UPC:
View all shipping info
- Brand: TP-Link
- MPN: EAP783
- Part #: NAPTPL7831
- UPC:
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Indoor Access Points





TP-Link Omada EAP783 (BE19000) Tri-Band 12-Stream Wi-Fi 7 Access Point with 10GbE x2 (PoE++ 39W)
- Brand: TP-Link
- MPN: EAP783
- Part #: NAPTPL7831

Product URL: https://www.pbtech.com/au/product/NAPTPL7831/TP-Link-Omada-EAP783-BE19000-Tri-Band-12-Stream-Wi
Features
BE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- BE19000 Tri-Band Wi-Fi 7: 11520 Mbps (6 GHz) + 5760 Mbps (5 GHz) + 1376 Mbps (2.4 GHz). Buffering will no longer be a problem.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 2× 10G Port: Unlock the full potential of Wi-Fi 7.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
- Advanced Functions:Supports centralized management, mesh, and seamless roaming.
BE19000 Wi-Fi 7 Speed
Up to 19 Gbps tri-band Wi-Fi enables your devices to run at full speed.
Next-Gen Wi-Fi 7
Enjoy a smooth network with higher throughput and lower interference.
Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels.
Two 10G PoE++ Ports
Boosts overall throughput and offers flexible deployment with two 10 Gbps PoE++ ports.
Auto Channel Selection and Power Adjustment
Boost Wi-Fi performance and minimize interference for your network.
Intelligent Power Management
Offers more reliable network operation for your business.
Centralised Cloud Management
Manage the whole network locally or from the cloud.
Omada Mesh Technology
More flexible and convenient wireless deployment.?
PoE++ Power
Supports both 12V DC and 802.3bt PoE++ for flexible installations.
Specifications
HARDWARE FEATURES
Interface
2× 10G Ethernet Port
Power Supply
802.3bt PoE++ or 12V DC

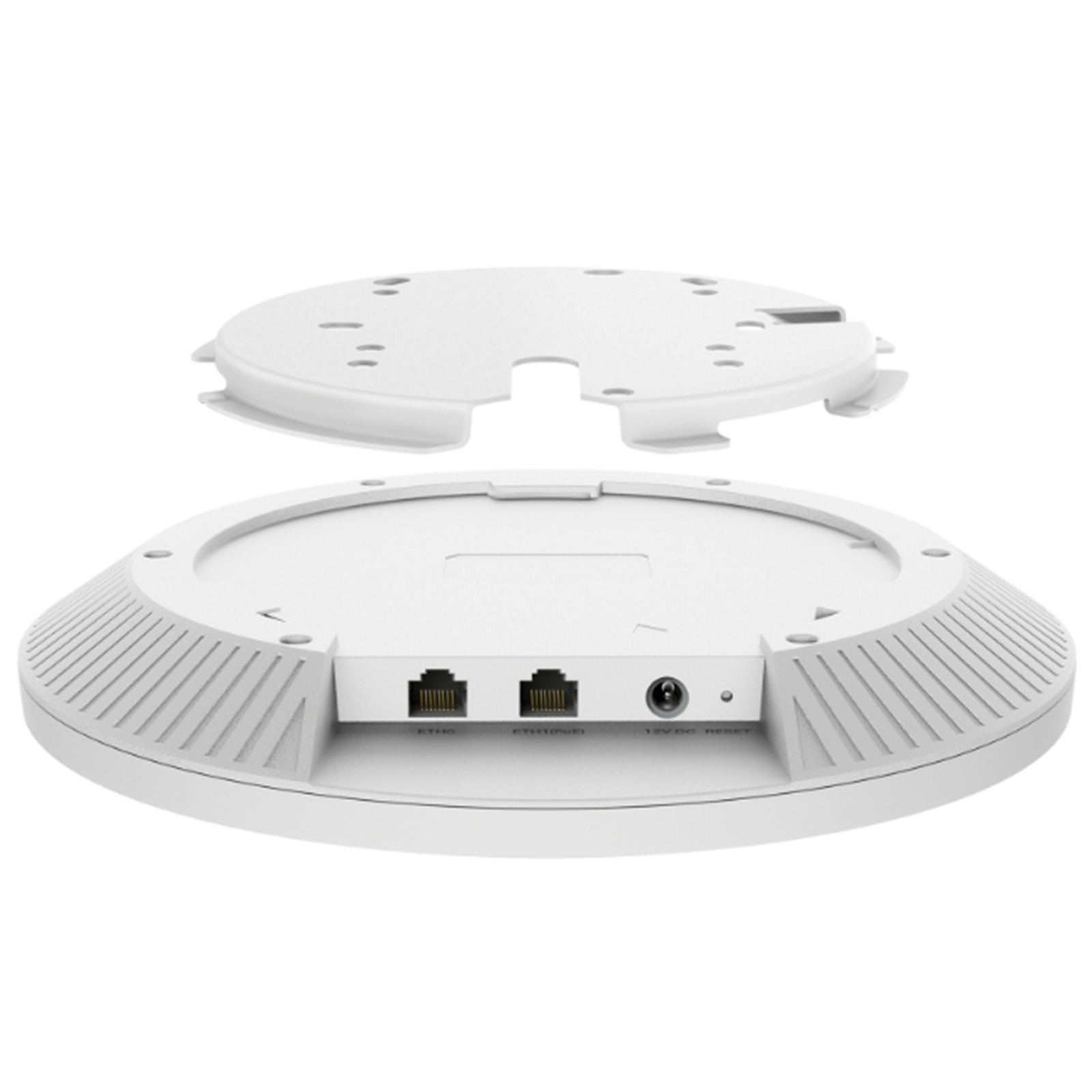

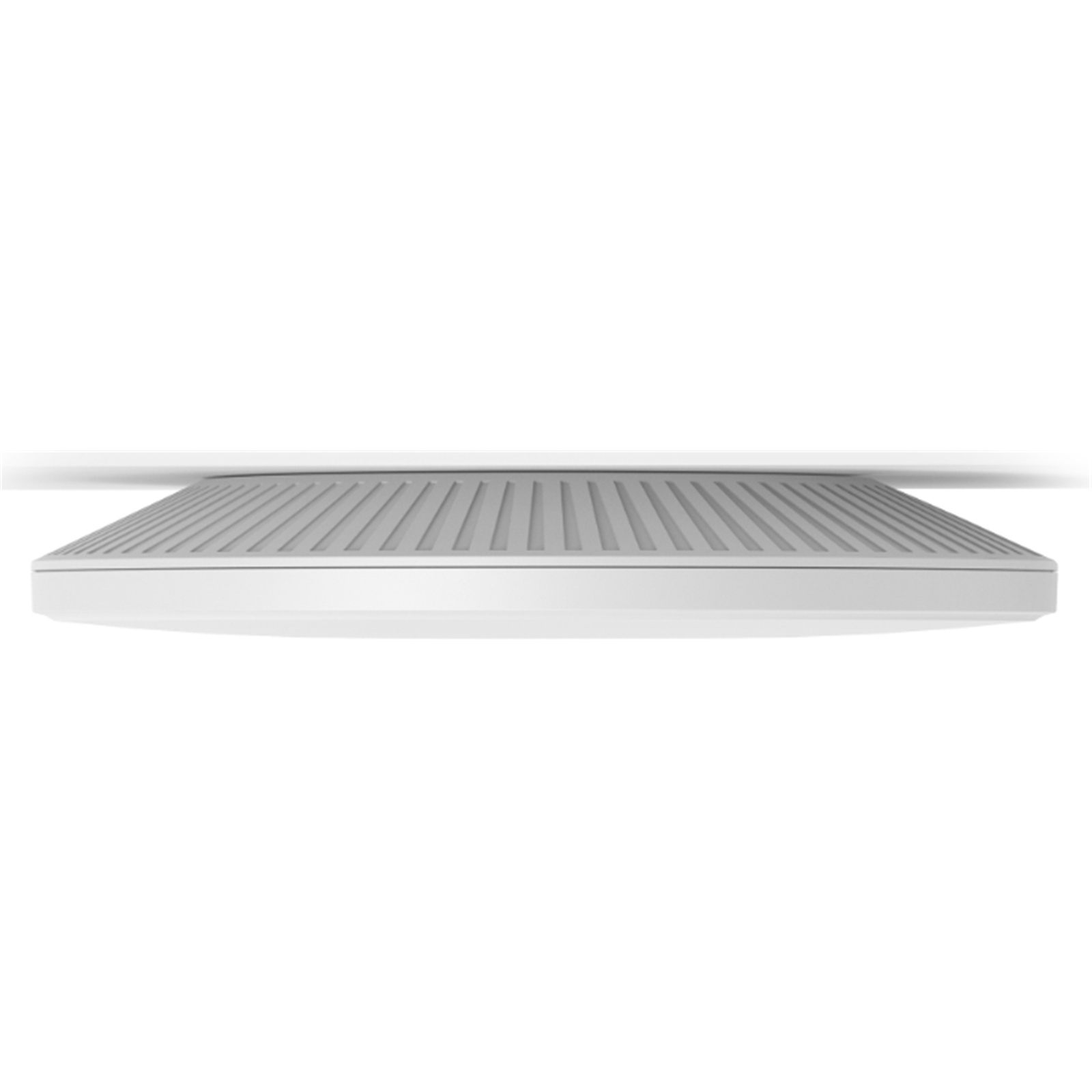

Mounting
Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Frequency
6 GHz, 5 GHz, and 2.4 GHz
Signal Rate
6 GHz: Up to 11520 Mbps
5 GHz: Up to 8640 Mbps
2.4 GHz: Up to 1376 Mbps
Wireless Functions
MLO
4K-QAM
MU-MIMO
HE320
Mesh
Automatic Channel Selection and Power Adjustment
BBS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS
Wireless Schedule
Reboot Schedule
Wireless Security
PPSK
Captive Portal Authentication
WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
