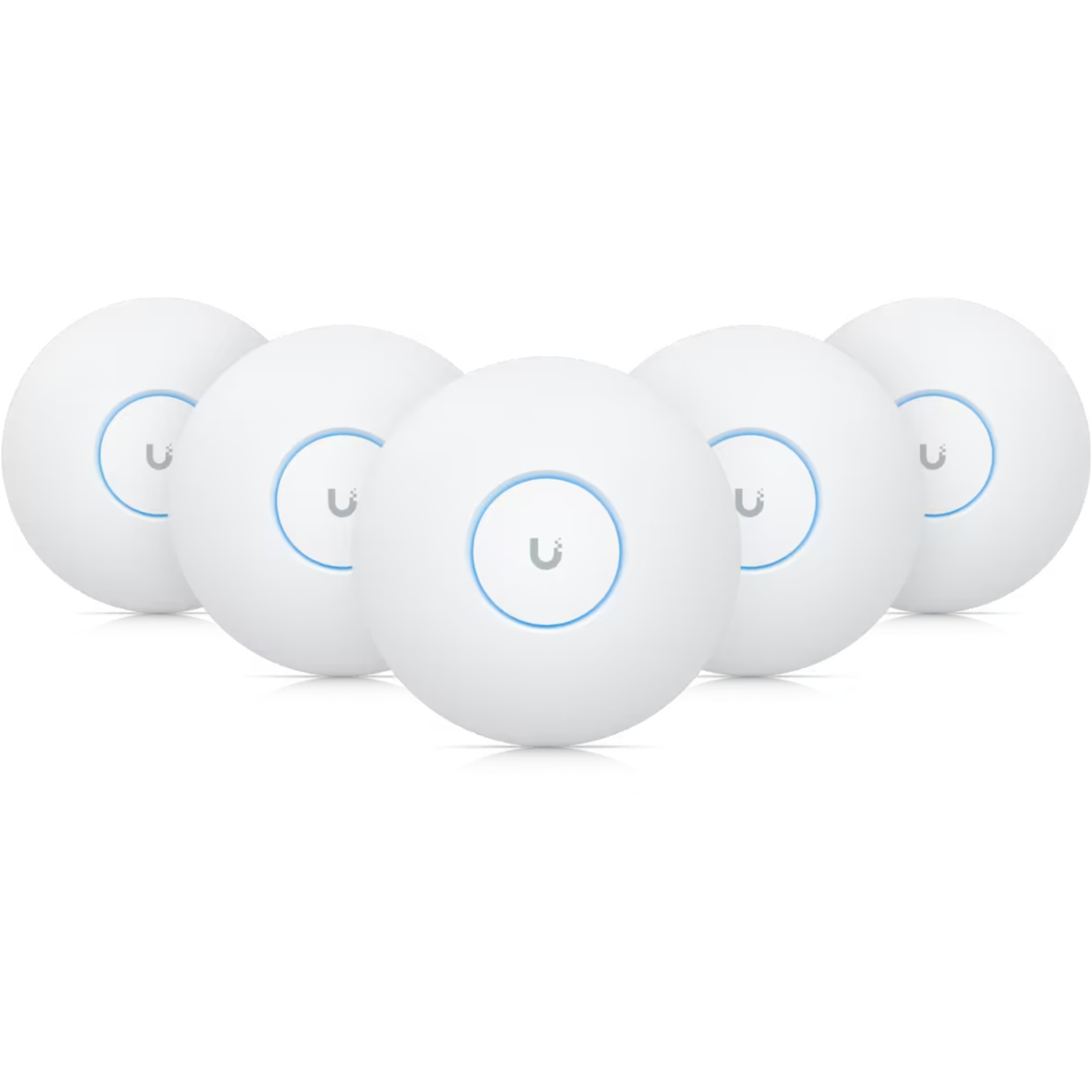

Ubiquiti UniFi U7-Pro-5 (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 21W) - 5 Pack
Ubiquiti UniFi U7-Pro-5 (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 21W) - 5 Pack
- Brand: Ubiquiti
- MPN: U7-Pro-5
- Part #: NAPUBI1705
- UPC: 810084697429
View all shipping info
- Brand: Ubiquiti
- MPN: U7-Pro-5
- Part #: NAPUBI1705
- UPC: 810084697429
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Ceiling Mounted Access Points





Ubiquiti UniFi U7-Pro-5 (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 21W) - 5 Pack
- Brand: Ubiquiti
- MPN: U7-Pro-5
- Part #: NAPUBI1705
- UPC:810084697429

Product URL: https://www.pbtech.com/au/product/NAPUBI1705/Ubiquiti-UniFi-U7-Pro-5-BE11000-Tri-Band-6-Stream
Features
U7 Pro
Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
Specifications
Mechanical
Dimensions
Ø206 x 46 mm (Ø8.1 x 1.8")
Weight
680 g (1.5 lb)
Enclosure material
Polycarbonate, metal
Mount material
Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface
(1) 1/2.5 GbE RJ45 port
Management interface
Ethernet
Power method
PoE+
Power supply
UniFi PoE switch
Supported voltage range
44-57V DC
Max. power consumption
21W
Max. TX power
2.4 GHz: 23 dBm
5 GHz: 26 dBm
6 GHz: 23 dBm
MIMO
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
6 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz: 688 Mbps (BW40)
5 GHz: 4.3 Gbps (BW240)
6 GHz: 5.7 Gbps (BW320)
Antenna gain
2.4 GHz: 4 dBi
5 GHz: 6 dBi
6 GHz: 5.8 dBi
LEDs
White/blue
Button
Factory reset
Mounting
Wall/ceiling (Included)
Ambient operating temperature
-30 to 40° C (-22 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
300+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network
Version 8.0.26 and later
UniFi OS
Version 3.2 and later
