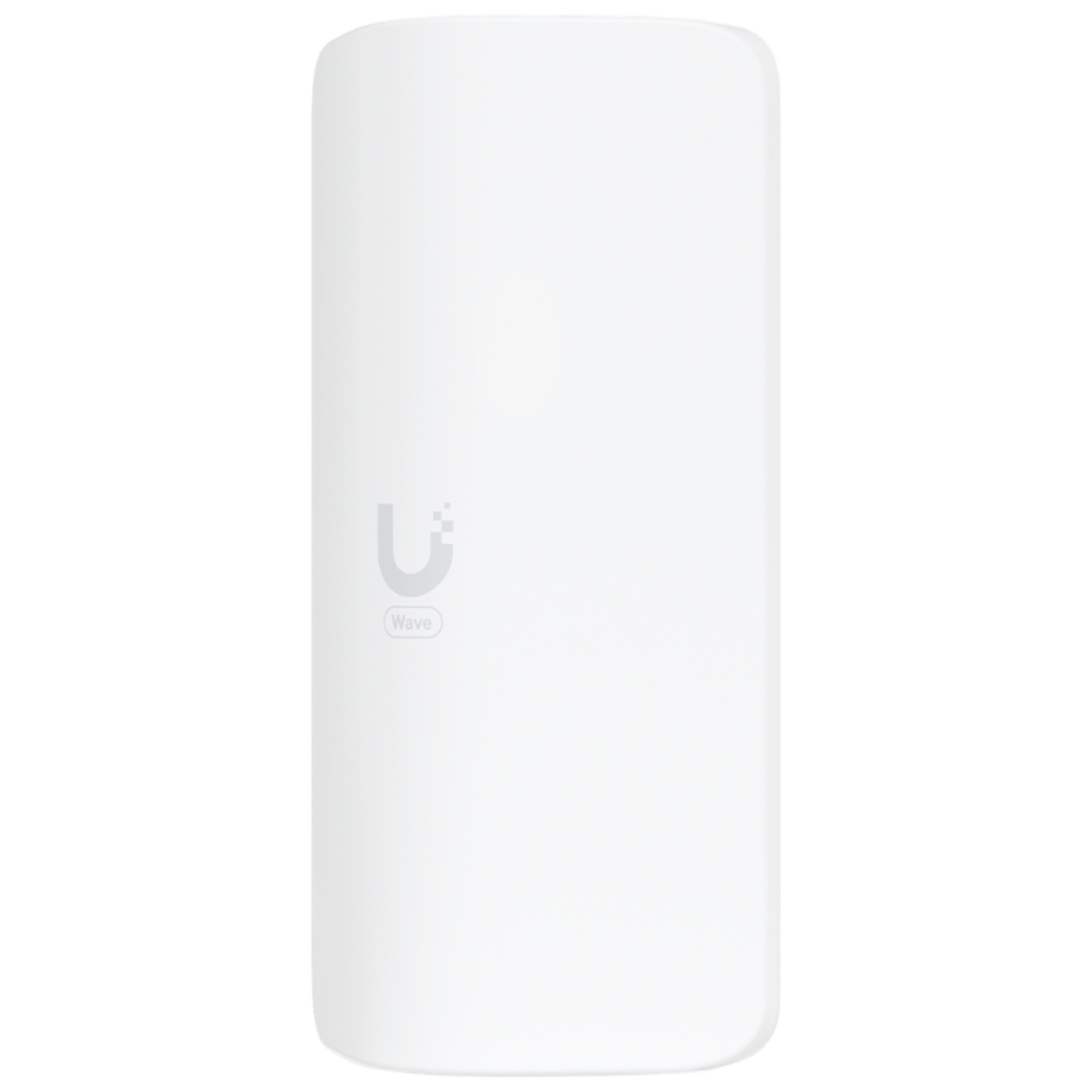

Ubiquiti UISP WAVE-AP-Micro 60GHz 5Gbps PtMP Wave Access Point with 5Ghz Backup, 90° Sector Coverage
Ubiquiti UISP WAVE-AP-Micro 60GHz 5Gbps PtMP Wave Access Point with 5Ghz Backup, 90° Sector Coverage
- Brand: Ubiquiti
- MPN: WAVE-AP-Micro
- Part #: NAPUBI6038
- UPC:
View all shipping info
- Brand: Ubiquiti
- MPN: WAVE-AP-Micro
- Part #: NAPUBI6038
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular CPE





Ubiquiti UISP WAVE-AP-Micro 60GHz 5Gbps PtMP Wave Access Point with 5Ghz Backup, 90° Sector Coverage
- Brand: Ubiquiti
- MPN: WAVE-AP-Micro
- Part #: NAPUBI6038

Product URL: https://www.pbtech.com/au/product/NAPUBI6038/Ubiquiti-UISP-WAVE-AP-Micro-60GHz-5Gbps-PtMP-Wave
Features
Ubiquiti UISP Wave 60GHz Access Point Micro. Wide-coverage 60 GHz PtMP access point powered by Wave Technology.
- 60 GHz 5 Gbps max. throughput (2.5 Gbps duplex) main radio
- 90° sector coverage
- 5 GHz 800+ Mbps weather-resilient backup radio
- (1) 2.5 GbE WAN port
- 15 client capacity: Wave-Long-Range (6 km link range), Wave-Nano (4 km link range)
- Integrated GPS & Bluetooth
Building Features
Specifications
Brand
Ubiquiti
MPN
WAVE-AP-Micro
Dimensions
284 x 156 x 76 mm (11.2 x 6.1 x 3")
Weight
1.3 kg (2.9 lb)
Enclosure material
Aluminum alloy, UV stabilized polycarbonate
Mount material
Stainless steel, UV stabilized polycarbonate
Pole mount diameter
35 to 60 mm (1.4 to 2.4") on pipe outer diameter
Wind loading
87 N at 200 km/h (20 lbf at 125 mph)
Weatherproofing
IPX6
Processor
Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory
DDR3L 512 MB
Networking interface
(1) 1/2.5 GbE RJ45 port
Max. power consumption
24W
Power method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only
Power supply
48V DC, 0.65A, 2.5 GbE PoE adapter (Included)
Supported voltage range
44-54V DC
22-27V DC
GPS
Yes
Button
Factory reset
LEDs
Power, Ethernet, GPS, Link
Ambient operating temperature
-40 to 60° C (-40 to 140° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
FCC, IC, CE
Operating mode
PtMP access point
Ubiquiti specific features
Wave AI, discovery protocol
Services
UISP, ping watchdog, NTP client, SNMP
Tools
Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*
*FW version 3.3.0 and later.
Network
Bridge mode
Application requirements
UISP web: Version 2.2.11 and later
UISP mobile iOS™: Version 2.25.1 and later
UISP mobile Android™: Version 2.27.5 and later
Total throughput
5 Gbps
Supported clients count
31*
*FW version 3.4.0 and later.
Max. range
Connecting to a Wave Pro: up to 6 km
Connecting to a Wave Long-Range: up to 6 km
Connecting to a Wave Nano: up to 4 km
Connecting to a Wave Pico: up to 0.9 km
Encryption
WPA2-PSK (AES)
Operating frequency*
57-71 GHz
*Depends on regulatory region.
Channel bandwidth
2160, 1080, 540* MHz
*FW version 3.3.0 and later.
Operating channels*
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation
16QAM, QPSK
Antenna gain
20 dBi
Polarization
Vertically linear
Beamwidth
Azimuth: 3 dB 90°
Elevation: 3 dB 7°
Electrical downtilt
0°
