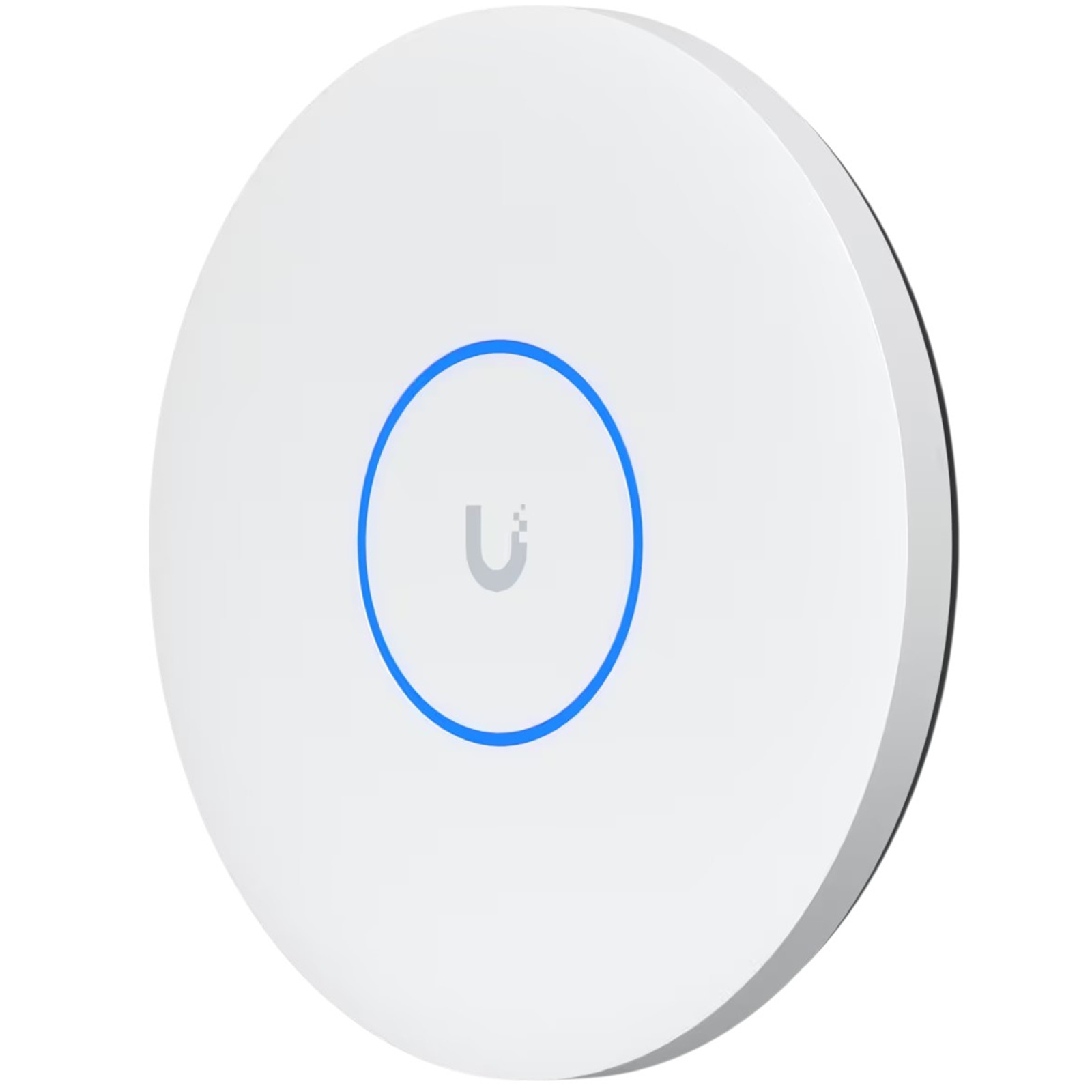

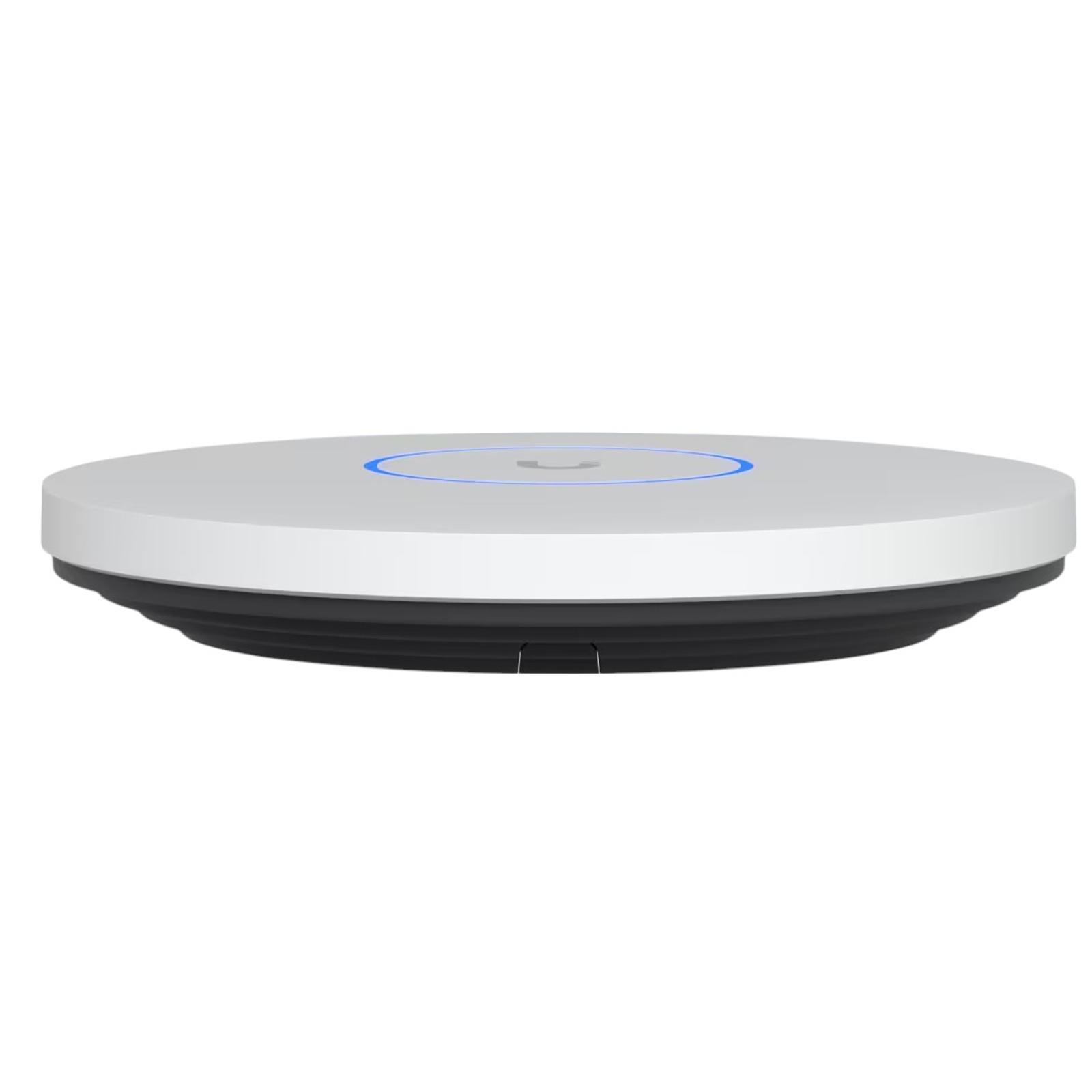

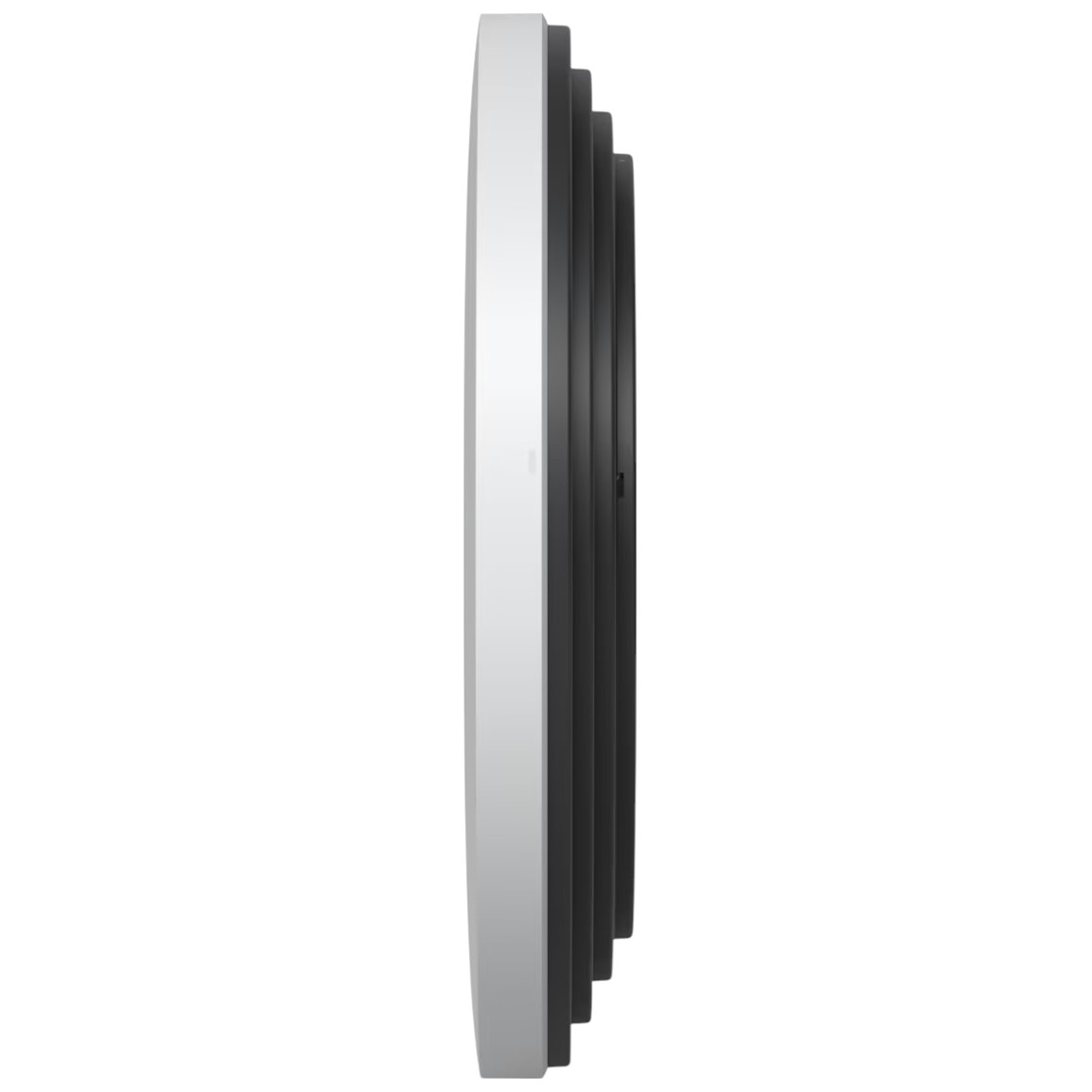

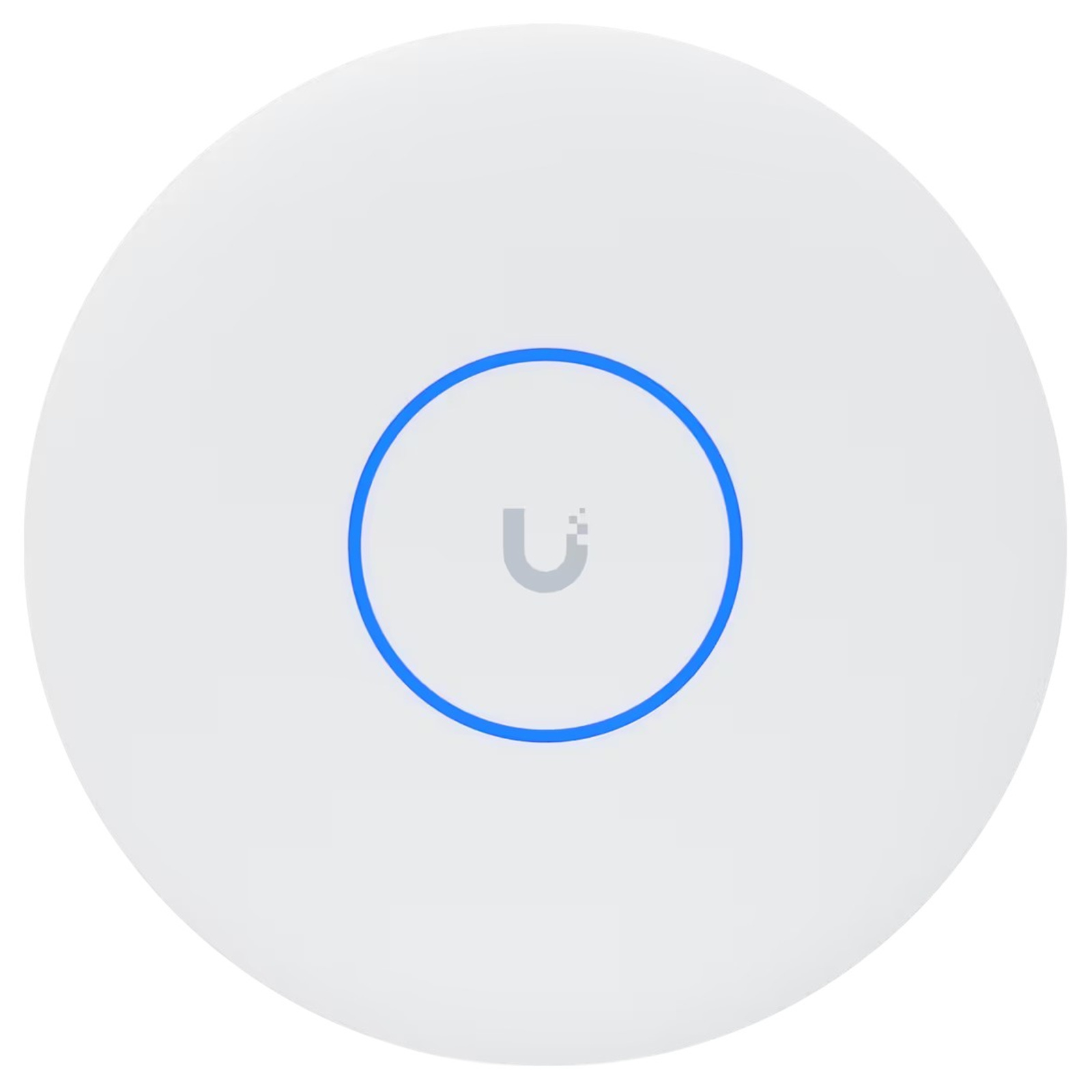

Ubiquiti UniFi U7-PRO-XG (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE+ 22W)
Ubiquiti UniFi U7-PRO-XG (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE+ 22W)
- Brand: Ubiquiti
- MPN: U7-Pro-XG
- Part #: NAPUBI7702
- UPC: 810177160632
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"Lovely shape compared to my U6 LR. Works well not using 10gb interface but will in future. Recommend."
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Ceiling Mounted Access Points





Ubiquiti UniFi U7-PRO-XG (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE+ 22W)
- Brand: Ubiquiti
- MPN: U7-Pro-XG
- Part #: NAPUBI7702
- UPC:810177160632

Product URL: https://www.pbtech.com/au/product/NAPUBI7702/Ubiquiti-UniFi-U7-PRO-XG-BE11000-Tri-Band-6-Stream?is-review=1
Features
Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.
Specifications
General
Color
White
Dimensions
206 (diameter) x 32.5 mm (8.1 (diameter) x 1.3")
WiFi Standard
WiFi 7
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
300+
Uplink
10 GbE
Mounting
Ceiling, Wall (Lite Mount Included)
Power Method
PoE+
Performance
MIMO
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
6 GHz: 6 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power
6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
22W
Supported Voltage Range
42.5-57V DC
Networking Interface
(1) 10 GbE RJ45 port
Weight
750 g (1.7 lb)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
System: White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network: Version 9.1.120 and later
