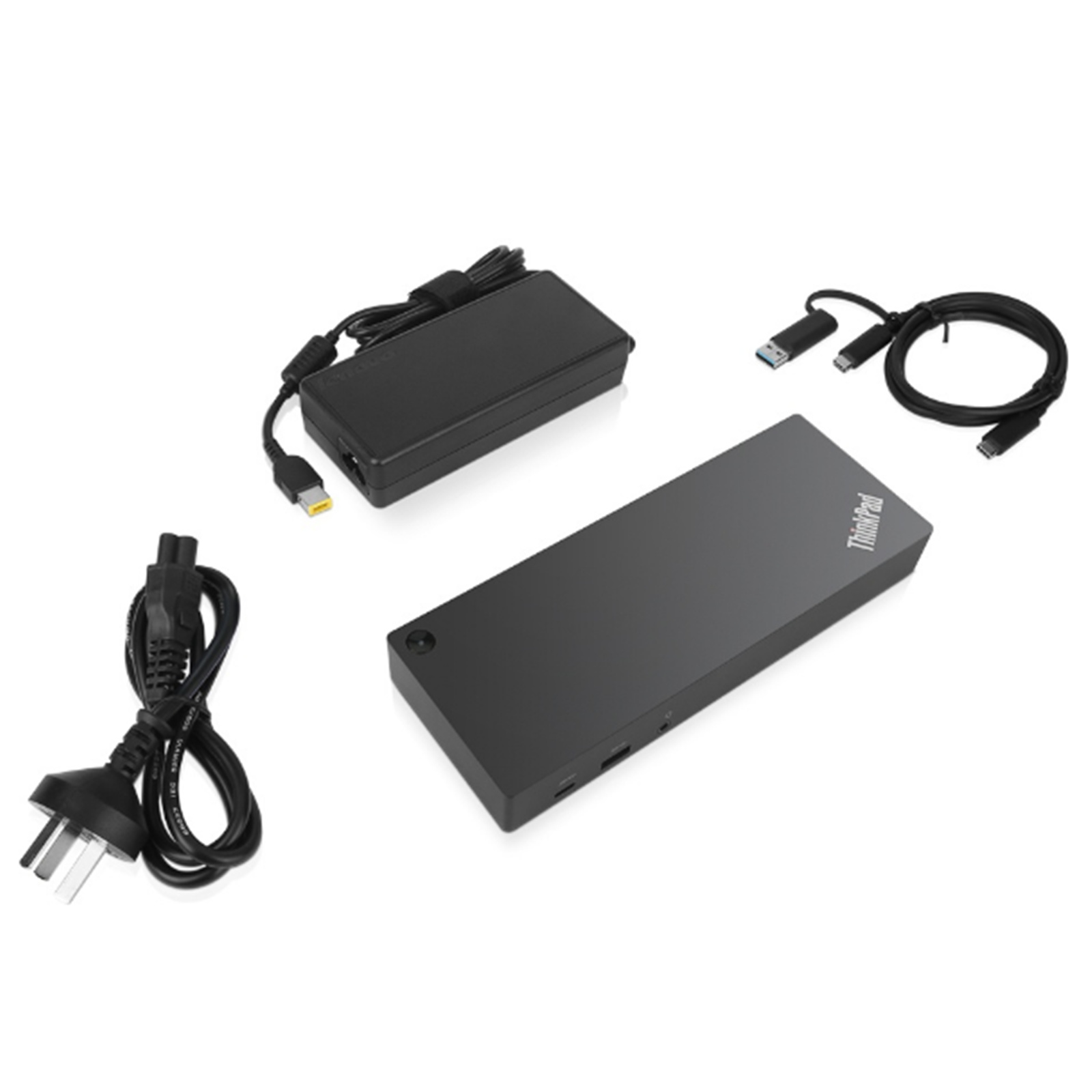

Lenovo ThinkPad Hybrid USB-C with USB-A Dual 4K Dock with 90W Power Delivery, DP1.2 x2, HDMI x2, GigE x1, USB3.1 x3, USB2.0 x2, 135 Watt AC adapter
Lenovo ThinkPad Hybrid USB-C with USB-A Dual 4K Dock with 90W Power Delivery, DP1.2 x2, HDMI x2, GigE x1, USB3.1 x3, USB2.0 x2, 135 Watt AC adapter
- Brand: Lenovo
- MPN: 40AF0135AU
- Part #: NBDLEN74135
- UPC: 191999788427
View all shipping info
Similar in-stock products available at PB Tech right now
What PB Tech customers are saying about this product...
See More Reviews"Plenty of ports that suit what i wanted"
"Definitely a bit expensive but well worth it, so many ports and I can finally use a dual monitor setup (+laptop so 3 in total) with my ThinkPad T14s 21BS"
"So simple for home set up to allow for transfer between office and home."
COMBO DEALS: Frequently Bought Together






Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...
$62.40 +GST
$68.64


MSI Pro MP2412 24" FHD 100hz Business Monitor 1920x1080 - HDMI - DisplayPort - Tilt Adjustable -...
$112.74 +GST
$124.01
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular USB-C Docking Stations





Lenovo ThinkPad Hybrid USB-C with USB-A Dual 4K Dock with 90W Power Delivery, DP1.2 x2, HDMI x2, GigE x1, USB3.1 x3, USB2.0 x2, 135 Watt AC adapter
- Brand: Lenovo
- MPN: 40AF0135AU
- Part #: NBDLEN74135
- UPC:191999788427

Product URL: https://www.pbtech.com/au/product/NBDLEN74135/Lenovo-ThinkPad-Hybrid-USB-C-with-USB-A-Dual-4K-Do?is-review=1
Features
The ThinkPad Hybrid USB-C with USB-A Dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address pass-through. The ThinkPad Hybrid USB-C with USB-A Dock offers three high-speed USB 3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. With the included USB-C to USB-A adaptor it can also provide port replication to non-Lenovo or non-USB-C notebooks.
- Enterprise-class capabilities with PXE boot, Wake-On-Lan, and MAC address pass-through
- Supports ThinkPad RapidCharge
- Connects with up to dual UHD 4K display with DP and HDMI ports
- Delivers up to 10Gbps data transfer speed on 3 x USB 3.1 ports
Specifications
Color
Black
Max Number of External Monitors
2
Weight
480 g (1.05 lbs)
Refresh Rate
DisplayPort: 3840 x 2160 @ 60 Hz, HDMI: 3840 x 2160 @ 60 Hz, Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz,, "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop.
AC Plug
Australian Standard Plug Type
Hardware Requirements
Machine with full function USB-C port or USB 3.0 Port
Output Power
90 W
OS Requirements
Windows 11, Windows 10, Windows 7
Agency Approvals
BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI
Audio Ports
1 x 3.5 mm Stereo/Mic Combo Port
Charging Port
ThinkPad Slim-tip Port

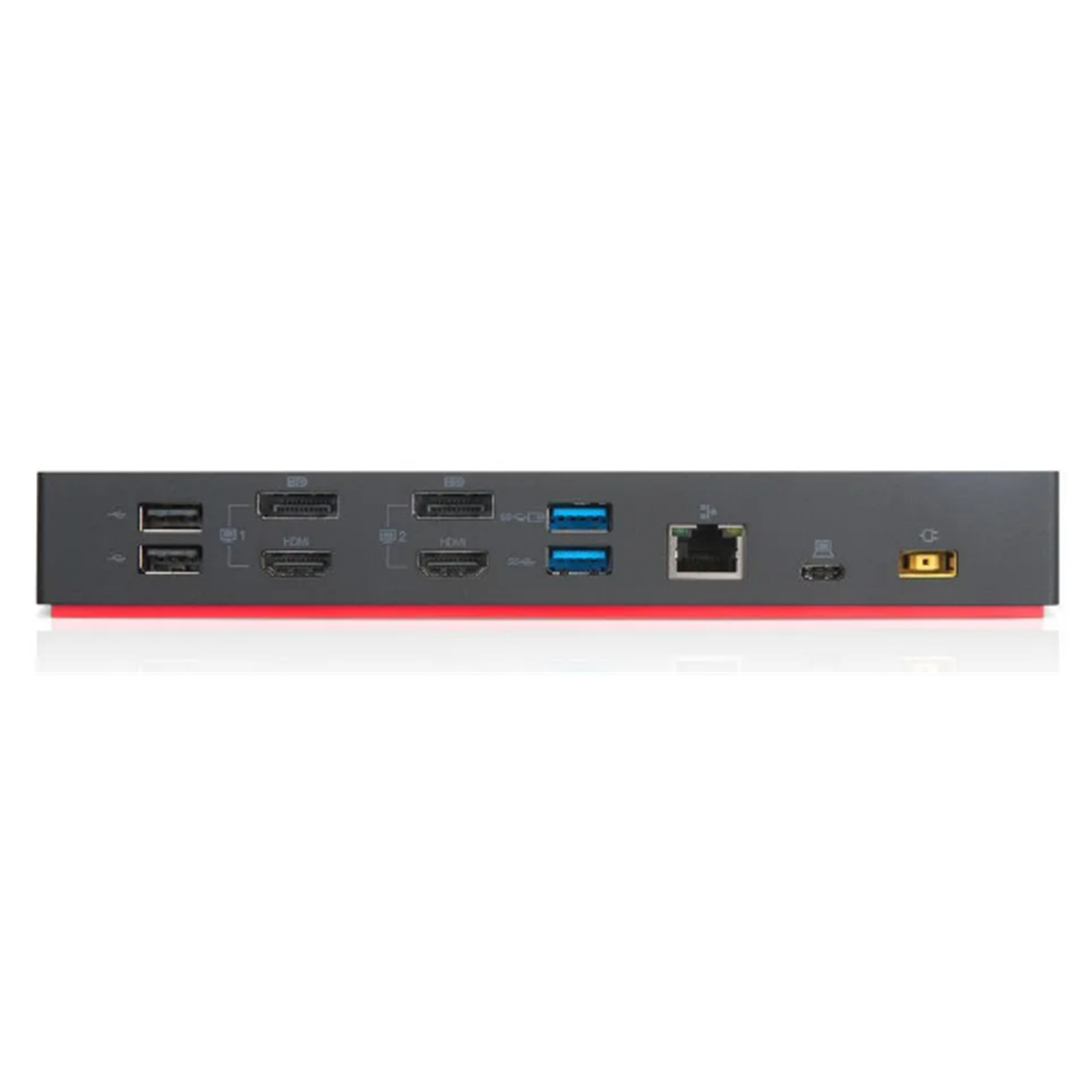

USB Ports
1 x USB-C (Data, 5V/3A power), 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on), 2 x USB 2.0
Video Ports
2 x DisplayPort 1.2, 2 x HDMI
Package Type
Brown box
Warranty Period
3 Years
Maximum Operating Temperature
35 degrees Celsius (95 degrees Fahrenheit)
Minimum Operating Temperature
0 degrees Celsius (32 degrees Fahrenheit)
Driver Needed
Preloaded in select ThinkPad laptops
Input Power
135 W
Power Button
Yes
Power Delivery
Yes
Compatibility
E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1
Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260
