Allied Telesis AT-SP10LRA/I 10GLR 1310 NM MEDIUM-HAUL 10KM WITH SMF
Out of stock
Allied Telesis AT-SP10LRA/I 10GLR 1310 NM MEDIUM-HAUL 10KM WITH SMF
- Brand: Allied Telesis
- MPN: AT-SP10LRA/I
- Part #: NETATS5077731
- UPC:
View all shipping info
- Brand: Allied Telesis
- MPN: AT-SP10LRA/I
- Part #: NETATS5077731
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Allied Telesis AT-SP10LRA/I 10GLR 1310 NM MEDIUM-HAUL 10KM WITH SMF
- Brand: Allied Telesis
- MPN: AT-SP10LRA/I
- Part #: NETATS5077731

Product URL: https://www.pbtech.com/au/product/NETATS5077731/Allied-Telesis-AT-SP10LRAI-10GLR-1310-NM-MEDIUM-HA
Features

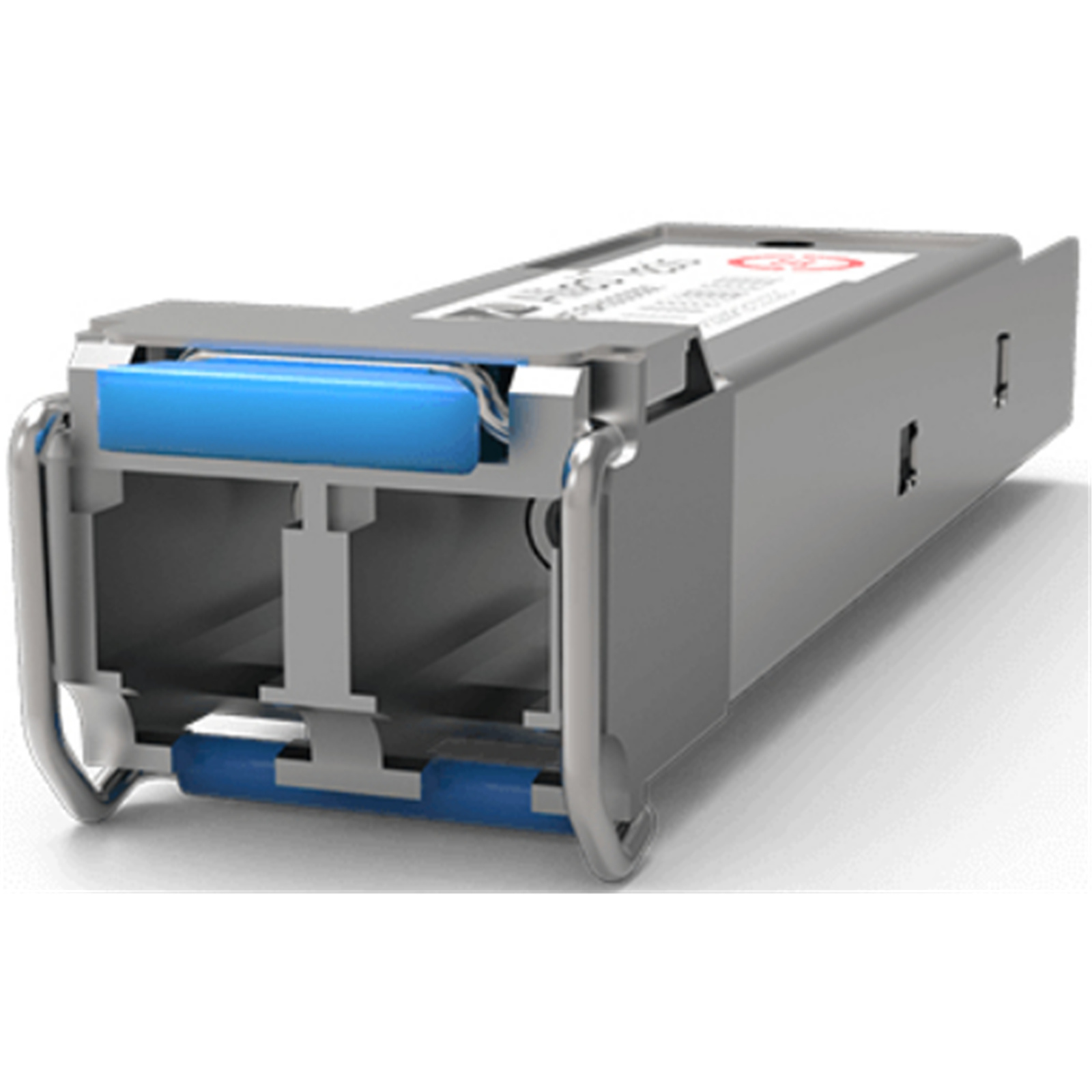

SP10LRa/I-10G LR (LC) single-mode SFP+, I-Temp, 10km
The SP10LRa/I is a hot pluggable 10Gbps small form factor transceiver module with Industrial Temperature rating, -40°C to 85°C (-40°F to 185°F). It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.
Specifications
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
Fiber optic connector
FC
Maximum transfer distance
10000 m
Wavelength
1310 nm
Tx power (min)
-8 dBmW
Tx power (max)
1 dBmW
Rx power (max)
-14 dBmW
Link budget
6 dB
Fiber ethernet cabling technology
10GBASE-LR
Performance
Digital Diagnostics Monitoring (DDM)
Yes
Features
Product colour
Grey
Hot-swap
Yes
Certification
TAA
Operational conditions
Operating temperature (T-T)
-40 - 85 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Packaging data
Number of products included
1 pc(s)
Technical details
Sustainability certificates
RoHS
