Blackhawk ANT-BH-WAL Wall Mount Panel Antenna 698-4000MHz 5-7dBi
- Brand: Blackhawk
- MPN: ANT-BH-WAL
- Part #: NETBHK1004

Product URL: https://www.pbtech.com/au/product/NETBHK1004/Blackhawk-ANT-BH-WAL-Wall-Mount-Panel-Antenna-698
Features

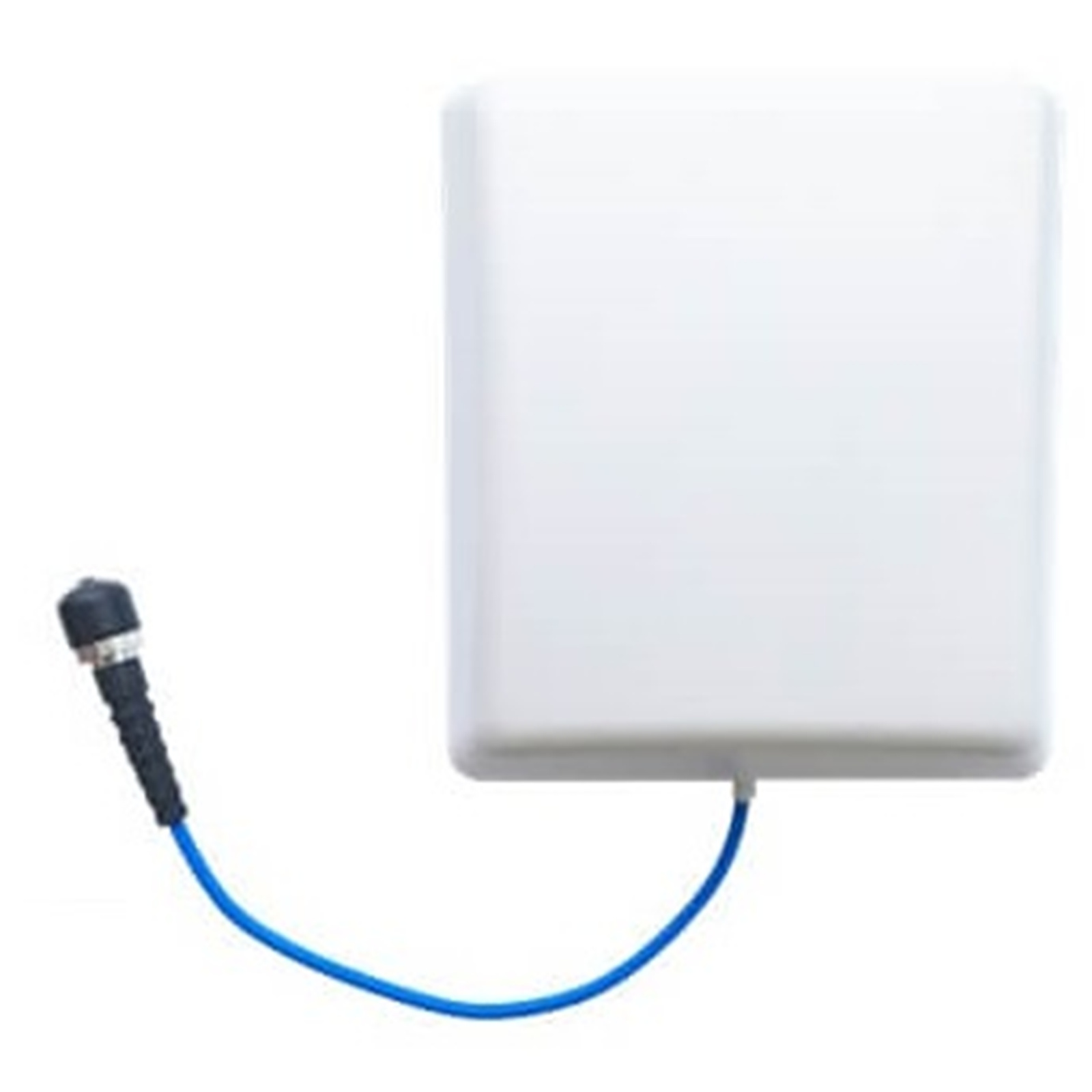

The Blackhawk Indoor Wall Mount Antenna is designed to provide mobile coverage inside a building when connected to a cellular repeater system. Indoor panel antennas are a lightweight and highly cost effective means of projecting mobile coverage in a forward direction. An example may be placing the panel antenna facing down a hallway or on the rear wall of a supermarket.
Indoor panel antennas are considered "semi-directional", where they aim to provide a moderate 5 to 7 dBi gain, which makes sure coverage is transmitted in a wide arc (between 60 and 90° depending on frequency band).
The antenna supports all major 4G and 5G mobile networks globally and has a low-PIM design to broadcast multiple carriers from the one antenna.
-Provides a 5 dBi gain for 698 to 960 MHz
-Provides a 7 dBi gain for 1710 to 4000 MHz
Provides a 7dbi gain for 698-960 MHz.Provides a 8dbi gain for 1710-2600 MHz.
The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind, regardless of whatfrequency they operate on.Offering a 7dB gain this antenna is suitable as an indoorantenna or panel antenna, that can be mounted on a wall for repeater applications.
Specifications
Model
BH-WAL-698/2700-65
Frequency Range
698~960 MHz / 1710~2600MHz
VSWR
<1.5
Input Impedance
50O
Gain
7 / 8dBi
Polarization type
Line polarization
E-plane beamwidth
65°
H-plane beamwidth
90°
F/B Ratio
=23dB
Max Power
50W
Lightning protection
DC ground
Connector Type
N Female
RG58/U cable
L=300mm
Weight
600g
Dimensions
210mm×180mm×44mm
Radome material
UV-Resistance ABS
Radome color
White
Working temperature
-40°C~+60°C
