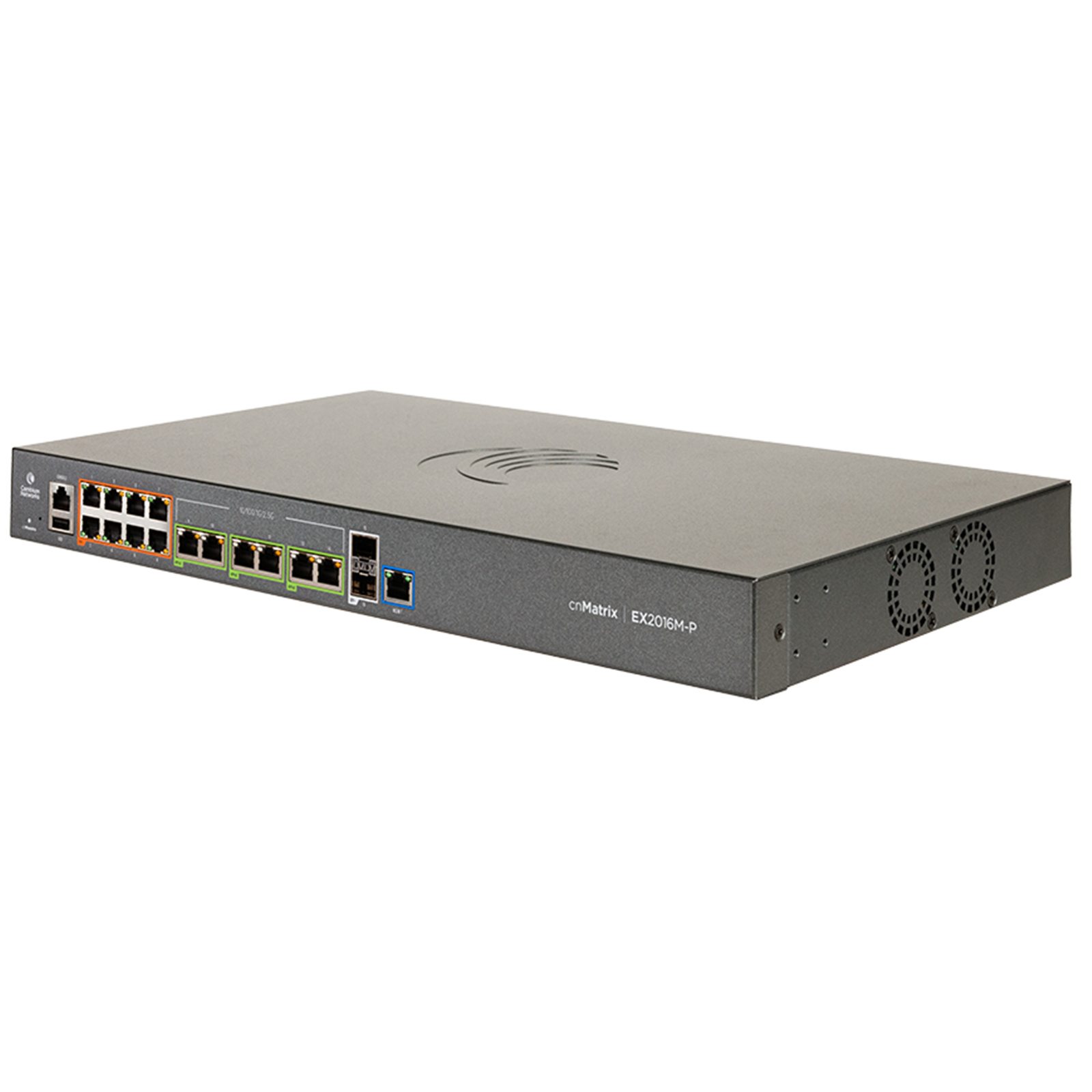

Cambium Networks EX2016M-P Intelligent Ethernet PoE Switch 8x1G+6x2.5G+2xSFP+,no power cord

PB Tech price
PB Tech price
$ 2,142 .65
 +GST
$ 2,356 .91
 inc GST
$2,142.65  +GST
$2,356.91

Cambium Networks EX2016M-P Intelligent Ethernet PoE Switch 8x1G+6x2.5G+2xSFP+,no power cord

PB Tech price
$ 2,142 .65 $ 2,356 .91
 +GST  inc GST


Delivery: Order now and it ships on 12 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$2,142.65  +GST
$2,356.91

10 Gigabit

Yes

10 Gigabit Ports

2 Ports

Form Factor

1U Rackmount

Number of Ports

16 Ports

PoE

Yes

PoE Ports

14 Ports

PoE Budget

240 Watts

Stacking

Not Specified

Features

Cambium cnMatrix EX2016M-P 16-Port Enterprise Cloud Managed PoE Switch with SFP+

Cambium Networks' next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports.

- 6 x 2.5 Gigabit Compatible Ethernet Ports
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
- Non-blocking, line-rate architecture with fully featured L2/L3 switching

Specifications

Non-Blocking Throughput

86Gbps

Forwarding Rate in Mpps (64 Byte Packets)

120

Packet Buffer

1.5 MB

10/100/1000 Ports

8

2.5 G Ports

6

Uplink Ports

2 SFP+

PoE+ Enabled Ports 802.3af/at

8

PoE+ Enabled Ports 802.3af/at/bt

6

Serial Console

Yes

USB

Yes

Out-of-Band Management Port

Yes

Rack Mount Kit

Included

Internal Fans

2

Reset Button

Yes

MAC Address Table Size

16K

VLANs (simultaneous)

4K

QinQ

Yes

LACP/Trunking

8 LAGs/8 links per LAG

Policy Based Automation

Yes

Power Supply

100-240 VAC

Max Switch Power (with Traffic)

26.76W

MTBF (Hours)

385,242

Flash Storage

128 MB

DRAM

256 MB

Weight

3.6 kg (7.93 lb)

Dimensions

44 x 4.4 x 25 cm (17.3 x 1.75 x 9.85 in)

PoE+ Power Budget

240W

PoE + Voltage

54V

PoE Max Power per Port

30W, 60W

Temperature Ranges

0° to 50°C (32° to 122°F)

Operating Humidity

55° at 95% RH

Storage Temperature

-40° to 70°C (-40° to 158°F)

Manufacturer Part No:
EX2016M-P
Brand:
Product Type:
Intelligent Ethernet PoE Switch
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
NETCBN010143
Product Model:
EX2016M-P
Warranty: 12 months *
