Cambium Networks EX1010-P Cambium cnMatrix EX1010-P, Intelligent Ethernet PoE+ Switch, 8 1Gbps and21Gbps SFP fiber ports
Out of stock
Cambium Networks EX1010-P Cambium cnMatrix EX1010-P, Intelligent Ethernet PoE+ Switch, 8 1Gbps and21Gbps SFP fiber ports
- Brand: Cambium Networks
- MPN: EX1010-P
- Part #: NETCBN010167
- UPC:
View all shipping info
- Brand: Cambium Networks
- MPN: EX1010-P
- Part #: NETCBN010167
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Cambium Networks EX1010-P Cambium cnMatrix EX1010-P, Intelligent Ethernet PoE+ Switch, 8 1Gbps and21Gbps SFP fiber ports
- Brand: Cambium Networks
- MPN: EX1010-P
- Part #: NETCBN010167

Product URL: https://www.pbtech.com/au/product/NETCBN010167/Cambium-Networks-EX1010-P-Cambium-cnMatrix-EX1010
Features

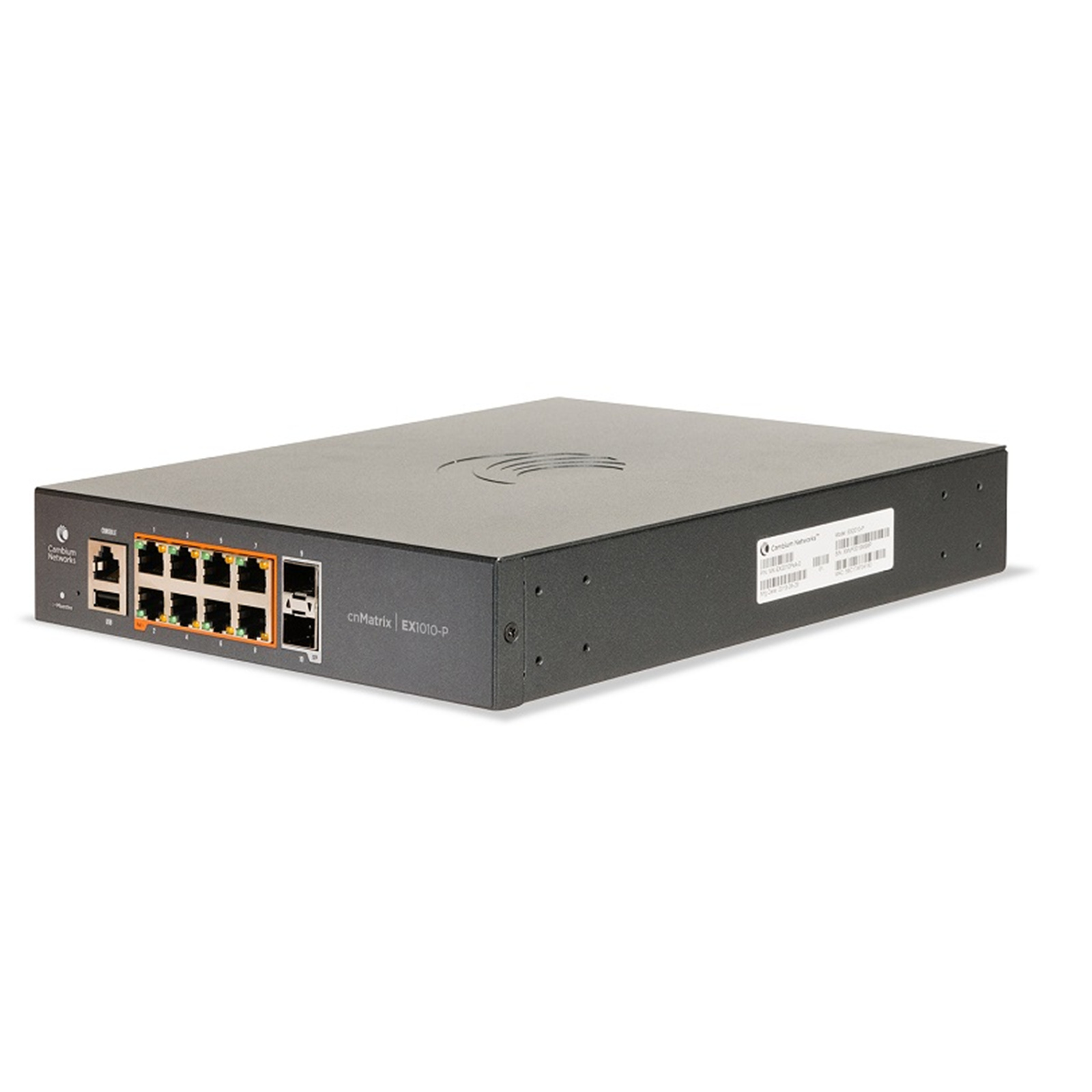

The Cambium cnMatrix EX1010-P (MX-EX1010PxA-0) is an Intelligent Ethernet PoE+ Switch with 8x 1Gbps and 2x 1Gbps SFP fiber ports. Cambium Networks' next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
- 8x PoE+ 802.3af/at Compliant Gigabit Ethernet Ports
- Easy and simple free cloud management with cnMaestro
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
Specifications
Non-Blocking Throughput
20Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
Gigabit Ethernet Ports
8 with 802.3af/at Compliant PoE Output
Uplink Ports
2 SFP
Serial Console Port
1 RJ45
USB
1
Internal Fans
Fanless
LEDs Per Port
Link/Activity
Rack Mount Kit
Optional (Sold Separately)
Power Supply
100-240 VAC
Max Switch Power (WITH TRAFFIC)
10.54 W
MTBF (Hours)
338,917
Weight
1.99 kg
Dimensions
21 x 4.4 x 25 cm
PoE+ Power Budget
75 W
PoE+ Voltage
54 V
PoE Max Power Per Port
30W
Temperature Range
-0°C to +50°C
Operating Humidity
+55° at 95% RH
Storage Temperature
-40°C to +70°C
