Cambium XV2-21X Indoor Dual-Radio WiFi 6 2x2 Access Point with 1 Gigabit Ethernet. Enterprise grade software-defined access point.
The XV2-21X indoor ceiling mount 2x2 Wi-Fi 6 AP offers 2.97 total Gbps of bandwidth. Ideal for hospitality, MDU and small and medium business applications.
Value-Tier Wi-Fi for any market
Cambium Networks XV2-21X WiFi6 Indoor access point delivers a high-performance to price ratio attractive to any market.
The XV2-21X can be adopted and managed by any of the Cambium Networks management systems, cnMaestro™ Cloud, cnMaestro™ X, cnMaestro™ onpremises, or Swift app-based management. Choose the management type you need, and change it at any time. Unlike other value-tier access points, the XV2-21X is never locked into just one management selection.
Designed for fast installation

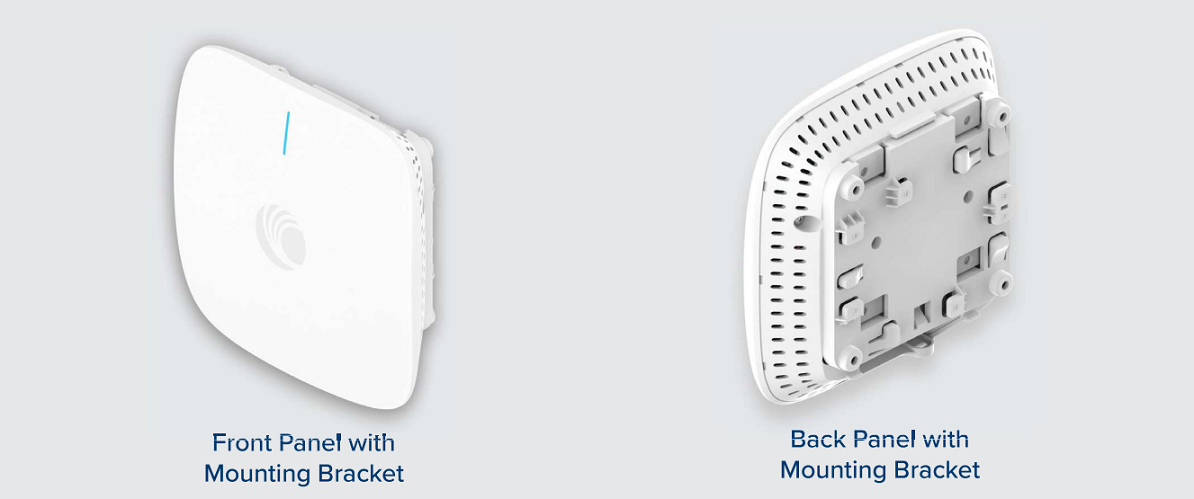

The XV2-21X offers multiple installation methods included in the same shipping box. Mount the AP to a ceiling tile using the included steel plate, mount to an existing junction box with 83mm center-to-center holes, twist lock the AP onto a 36mm, 24mm and 14mm T-bar, or simply mount it to any flat surface using the included wall anchors. No accessory brackets are needed.
- Dual Radio Wi-Fi 6
- 5 GHz (2x2), 2.4 GHz (2x2)
- 1 GbE RJ45 interface
- Managed by cnMaestro™, Swift
XV2-21X Wi-Fi 6 Access Point
Specifications
Radios
2.4 GHz 802.11 b/g/n/ax, 2x2:2; 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2:2
Wi-Fi
802.11 a/b/g/n/ac Wave 2/ax
SSID Security
WPA3-SAE, WPA3-Enterprise, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WEP, Open
Max PHY Rate
2.4 GHz radio 573.5 Mbps; 5 GHz radio 2402 Mbps
Ports
1 x IEEE 10/100/1000 Mbps
Antenna
2.4 GHz 5 dBi, Omni; 5 GHz 6 dBi, Omni
Max EIRP
2.4 GHz 32 dBm; 5 GHz 33 dBm
Power
Typical 11W, Maximum 12.95W, 802.3af powered device
Dimensions
155 mm x 155 mm x 37 mm
Weight
475g
Ambient Operating Temperature
0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature
-40ºC to 70ºC (-4ºF to 158ºF)
Humidity
95% RH non-condensing
MTBF
1,980,244 hours at 50ºC ambient (estimated)
Mount Options
Wall or ceiling, T-bar with included locking bracket, ceiling tile plate
