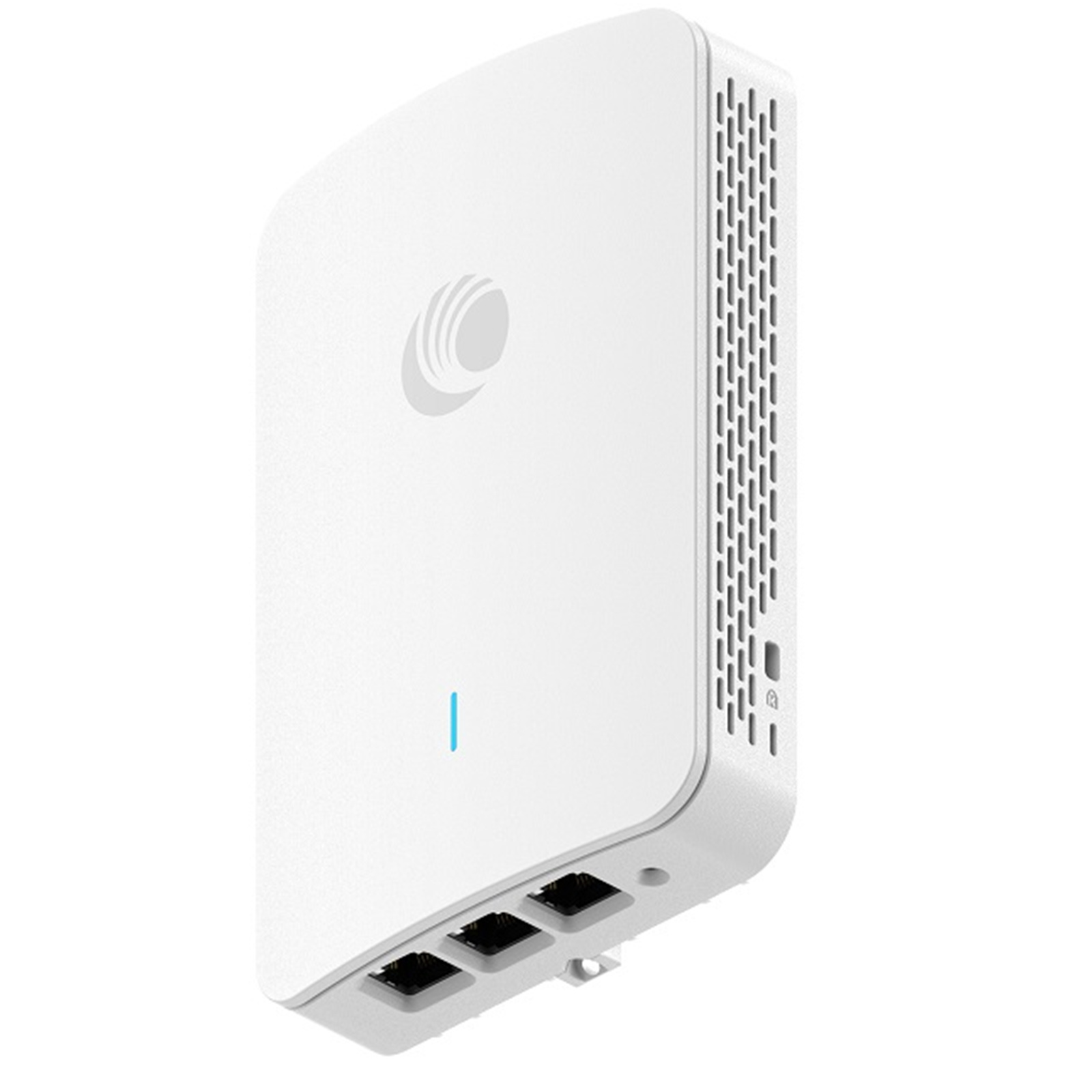

Cambium XV2-22H Wallplate Dual-Radio WiFi 6 2x2 Access Point with 3x GbE and 48V PoE out. Enterprise grade software-defined access point.
The XV2-22H indoor Wi-Fi 6 AP offers 2.97 Gbps of bandwidth and an integrated switch. Ideal for hospitality, MDU, education and small/medium business applications.
Cloud-Managed Access
All Cambium WiFi6 access points are managed by cnMaestro from the cloud, an on-premises VM or a private datacenter. cnMaestro provides single-pane-of- glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers.
Cambium Networks Wi-Fi 6 wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box.
Do-Not-Disturb Hotel Design
Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the XV2-22H wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS.
Designed for fast installation
XV2-22H install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. XV2-22H has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing, DHCP, and firewall. Deliver 10 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.
IoT Ready
Integrated 802.15.4 multi-functional radio supports either BLE, Zigbee, or Thread. Easily integrate with popular Zigbee based door access control systems or temperature control or enable BLE for close point of presence location services.
- Wall plate 802.11ax, 2x2 WiFi6 Access Point
- 3 x GbE Ethernet, one with PoE out
- RJ45 electrical pass-through ports
- BLE/Zigbee/Thread/Matter
Specifications
Radios
2.4 GHz 802.11 b/g/n/ax, 2x2:2; 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2:2, 1x 802.15.4 or 1x 802.15.1 IoT transceiver, multi-protocol
Wi-Fi
802.11 a/b/g/n/ac Wave 2/ax
SSID Security
WPA3-SAE, WPA3-Enterprise, WPA2 (802.11i), WPA2 AES, WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max PHY Rate
2.4 GHz radio 573.5 Mbps; 5 GHz radio 2402 Mbps
Ports
1 x GE WAN, 2 x GE LAN, PoE out (up to 10W)
WiFi Antenna Gain
2.4 GHz 4.47 dBi, Omni; 5 GHz 5.56 dBi, Omni
IoT Antenna Gain
5.18 dBi, Omni
Max EIRP
2.4 GHz 30 dBm; 5 GHz 28 dBm
Power
802.3af or 802.3at powered device; Typical load, no power out: 10W; Typical load, with 10W power out: 20W
MTBF
511k hours at 25ºC; 121.79k hours 45ºC
Dimensions
160 mm x 105 mm x 32 mm
Weight
417 g
Ambient Operating Temperature
0ºC to 40ºC (32ºF to 122ºF)
Storage Temperature
-40ºC to 70ºC (-40ºF to 158ºF)
Humidity
95% RH non-condensing
