Cambium Networks CAMBIUM PTP 550 INTEGRATED 5 GHZ (ROW) WITH NO LINE CORD 3YR

PB Tech price
PB Tech price
$ 1,112 .10
 +GST
$ 1,223 .31
 inc GST
$1,112.10  +GST
$1,223.31

Cambium Networks CAMBIUM PTP 550 INTEGRATED 5 GHZ (ROW) WITH NO LINE CORD 3YR

PB Tech price
$ 1,112 .10 $ 1,223 .31
 +GST  inc GST


Delivery: Order now and it ships on 30 Jun
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$1,112.10  +GST
$1,223.31

Features

Cambium PTP 550 5GHz 23dBi Integrated Antenna Wireless Point to Point Backhaul Radio, with its unmatched 1.4 Gbps performance, provides the highest throughput in a point-to-point configuration. The PTP550 radio is ideal for quickly establishing high-capacity backhaul for any application ranging from video surveillance to ISP backhaul network traffic. The PTP 550 solution draws it attributes from Cambium's Point to Point product portfolio such as PTP 650/670 and PTP 450i backhaul solutions.

- 5.170 GHz to 5.900 GHz
- Integrated 23dBi Flat panel
- Up to 1.4 Gbps throughput
- TDD Sync capability
- cnMaestro™ support
- Channel bandwidth: 2x 20/40/80 MHz
- AES 128 Encryption
- IP67 Outdoor Rated
- Power supply and Mounting Hardware included

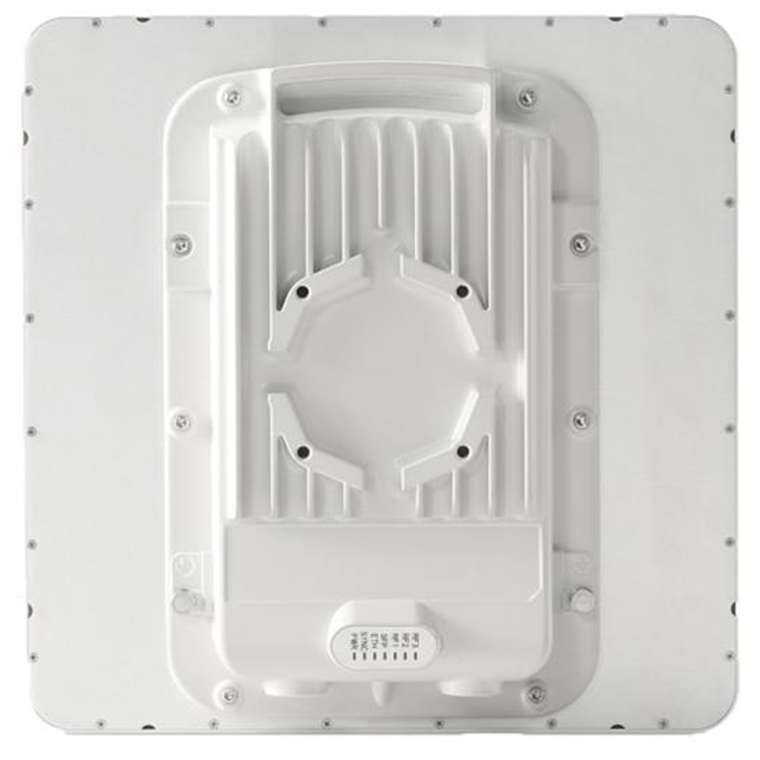

METAL HOUSING

Each PTP 550 radio is enclosed in a rugged IP66/67 rated metal enclosure, which protects the radio from extreme conditions and solar radiation.

ANTENNA ALIGNMENT

The "e-alignment" GUI provides the installer with an accurate and reliable way of installing PTP 550.

CHANNEL BONDING

Each channel can have independent channel bandwidth that provides for flexibility in channel selection, band selection and address throughput requirements. Using two 80 MHz channel the PTP 550 achieves 1.4 Gbps.

DYNAMIC CHANNEL SELECTION (DCS)

With Dynamic Channel Selection, PTP 550 systems constantly optimize the channel of operation to maximize link reliability and performance. Responding to the radio interference environment, PTP 550 will search for the clearest spectrum and move to it seamlessly. The customer benefits from best available throughput with limited spectrum in the most challenging environments.

Specifications

FREQUENCY

Wide-band operation 5.1 to 5.9 GHz (Allowable frequencies and bands are dictated by individual country regulations)

CHANNEL SIZES

Dual independent channels, each channel configurable as 20, 40 & 80 MHz

SPECTRAL EFFICIENCY

8.5 bps/Hz maximum

CHANNEL SELECTION

Fixed frequency or Dynamic Channel Selection (DCS)

MAXIMUM TRANSMIT POWER

Up to 27 dBm

MODULATION

MCS 0 to MCS 9 (AES 256)

DUPLEX SCHEME

Time Division Duplex (TDD), Multiple transmit/receive duty cycles

ANTENNA

Integrated Flat panel: 23 dBi

UL/DL Ratio supported

50:50 , 70:30 and 75:25

SECURITY

128-bit AES Encryption, Factory mode recovery

LATENCY

4-5 ms one direction

PACKET CLASSIFICATION

Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority

PACKET PERFORMANCE

Up to 70K packets per second

MAX PACKET SIZE

1700 Bytes

FLEXIBLE I/O

1 Gigabit Port: Data + PoE power input, 1 SFP port (single-mode fiber, multi-mode fiber, and copper Gigabit Ethernet options available)

NETWORK MANAGEMENT

In-Band management and Out-Band Management

DIMENSIONS

Integrated Outdoor Unit (ODU): Width 305mm, Height 305mm, Depth 68mm

WEIGHT

Integrated ODU: 2.2 kg including bracket

OPERATING TEMPERATURE

-40° to +60° C, including solar radiation

DUST- WATER INTRUSION PROTECTION

IP66 and IP67

WIND SPEED SURVIVAL

200 mph (322 kph)

POWER SUPPLY

AC power injector: 0°C to +40°C; 35 W; 90-240 VAC, 50/60Hz, Dimensions: Width 132mm, Height 36mm, Depth 51mm

POWER CONSUMPTION

30 W maximum

Manufacturer Part No:
C050055H012A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
NETCBN103616
Product Model:
-
Warranty: 12 months *
