Cambium Networks SFP-10G-LR 10G SFP+ SMF LR SFP 1310NM -40C TO 85C
Cambium Networks SFP-10G-LR 10G SFP+ SMF LR SFP 1310NM -40C TO 85C
- Brand: Cambium Networks
- MPN: SFP-10G-LR
- Part #: NETCBN5049230
- UPC:
View all shipping info
- Brand: Cambium Networks
- MPN: SFP-10G-LR
- Part #: NETCBN5049230
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Cambium Networks SFP-10G-LR 10G SFP+ SMF LR SFP 1310NM -40C TO 85C
- Brand: Cambium Networks
- MPN: SFP-10G-LR
- Part #: NETCBN5049230

Product URL: https://www.pbtech.com/au/product/NETCBN5049230/Cambium-Networks-SFP-10G-LR-10G-SFP-SMF-LR-SFP-131
Features

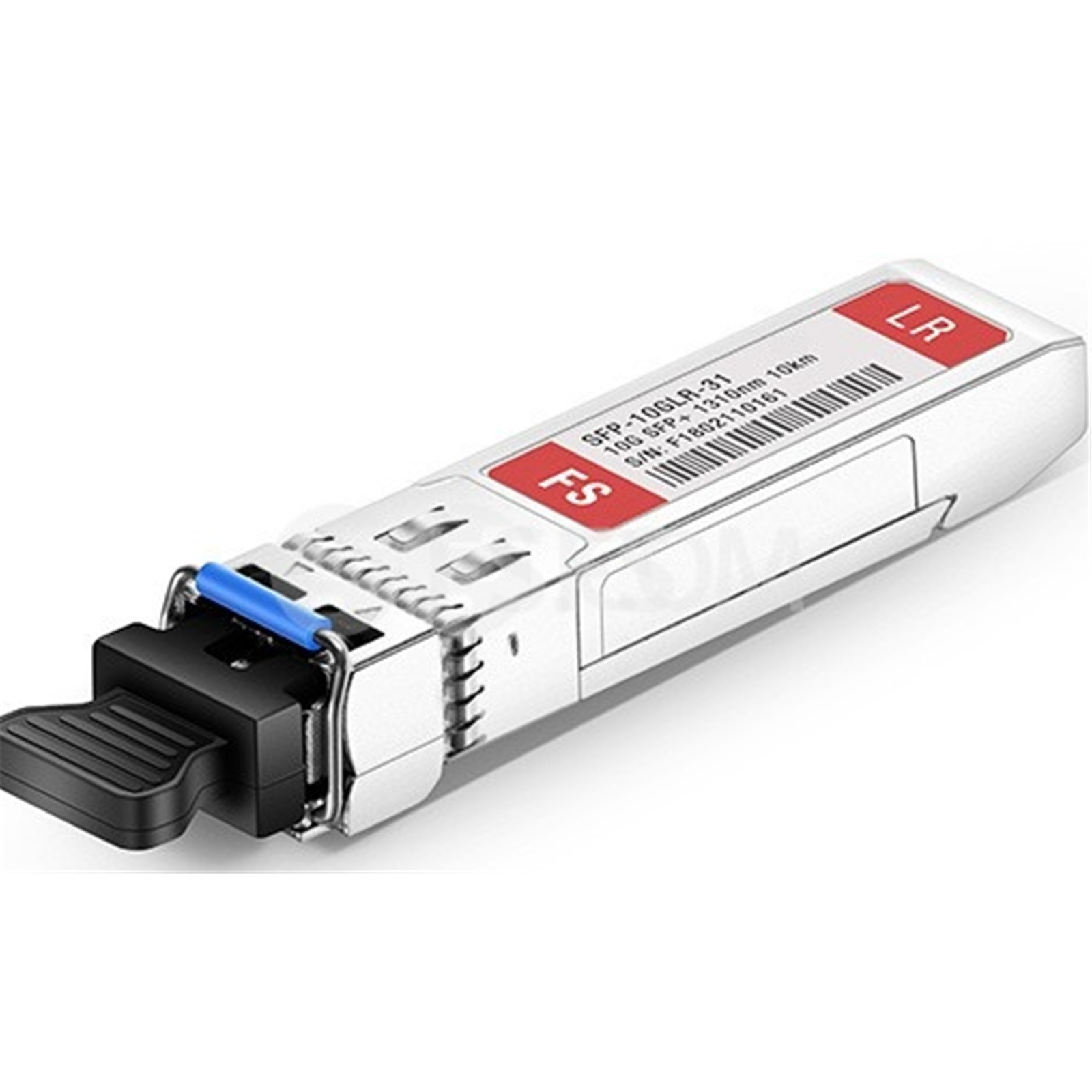

Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Cisco SFP-10G-LR compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
Cisco SFP-10G-LR module is the single-mode 10G fiber optical transceiver, the Cisco 10G Base-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652) and SFP-10G-LR SFP Plus optical transceiver from Solid-Optics offers up to 10Km link length on standard single-mode fiber.
-Industry's smallest 10G form factor for greatest density per chassis
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch
Supports "pay-as-you-populate" model for investment protection and ease of technology migration
Digital optical monitoring capability for strong diagnostic capabilities
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco
The Supported Platforms
Figure 1. The SFP-10G-LR can be supported in a switch SFP slot.
Specifications
Cisco Compatible
SFP-10G-LR
Vendor Name
FS
Form Factor
SFP+
Max Data Rate
10.3125Gbps
Wavelength
1310nm
Max Cable Distance
10km
Connector
LC Duplex
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
TX Power
-8.2~0.5dBm
Receiver Sensitivity
<-14.4dBm
Power Consumption
<1W
Receiver Overload
0.5dBm
Bit Error Ratio (BER)
1E-12
Extinction Ratio
>3.5dB
EMC (Electro Magnetic Compatibility)
Supported
MTBF
1,000,000 Hours
