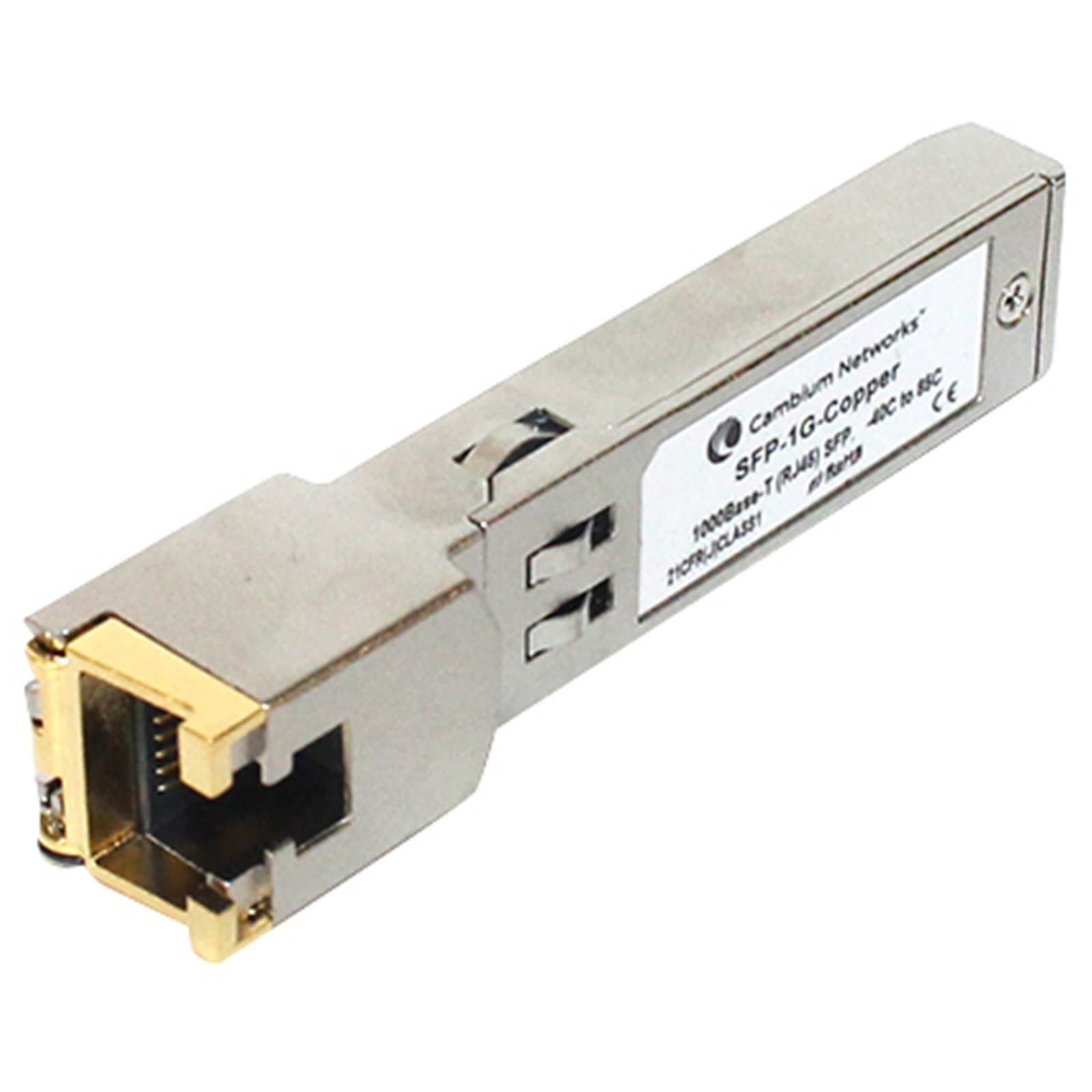

Cambium Networks SFP-1G-COPPER 1000BASE-T (RJ45) SFP SFP -40C TO 85C
- Brand: Cambium Networks
- MPN: SFP-1G-COPPER
- Part #: NETCBN5049232

Product URL: https://www.pbtech.com/au/product/NETCBN5049232/Cambium-Networks-SFP-1G-COPPER-1000BASE-T-RJ45-SFP
Features
Features
Up to 1.25Gbps bi-directional data links
Hot-pluggable SFP footprint
TX Disable function
Fully metallic enclosure for low EMI
+3.3V single power supply
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems with SERDES interface
Industrial operating case temperature: -40 to +85°C
Applications
1.25 Gigabit Ethernet over Cat 5 cable
Product description
This Small Form Pluggable (SFP) transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.
Specifications
Data Rate
1000Base-T
Connector
RJ45
Format
SFP
Compatibility
cnMatrix Switches
