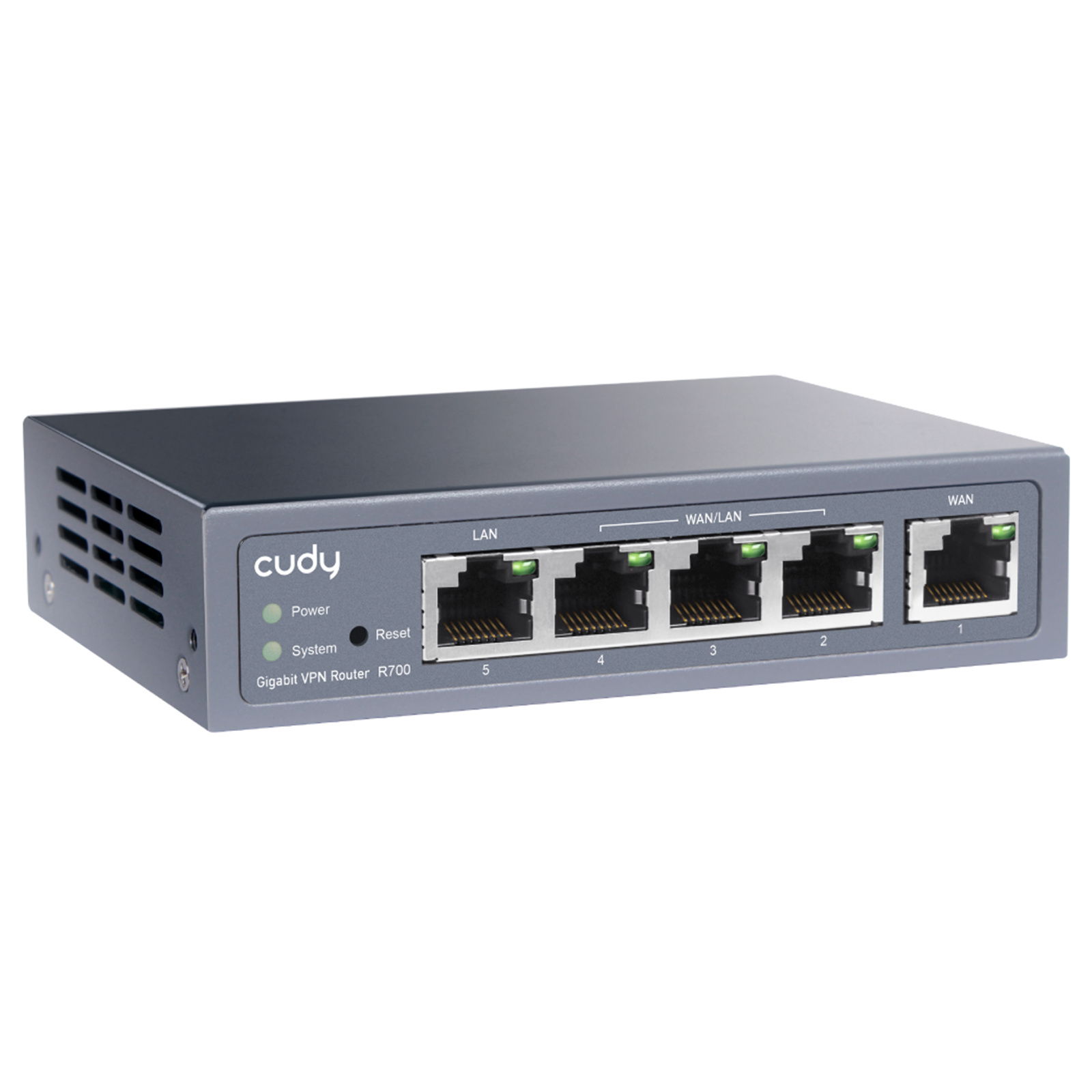

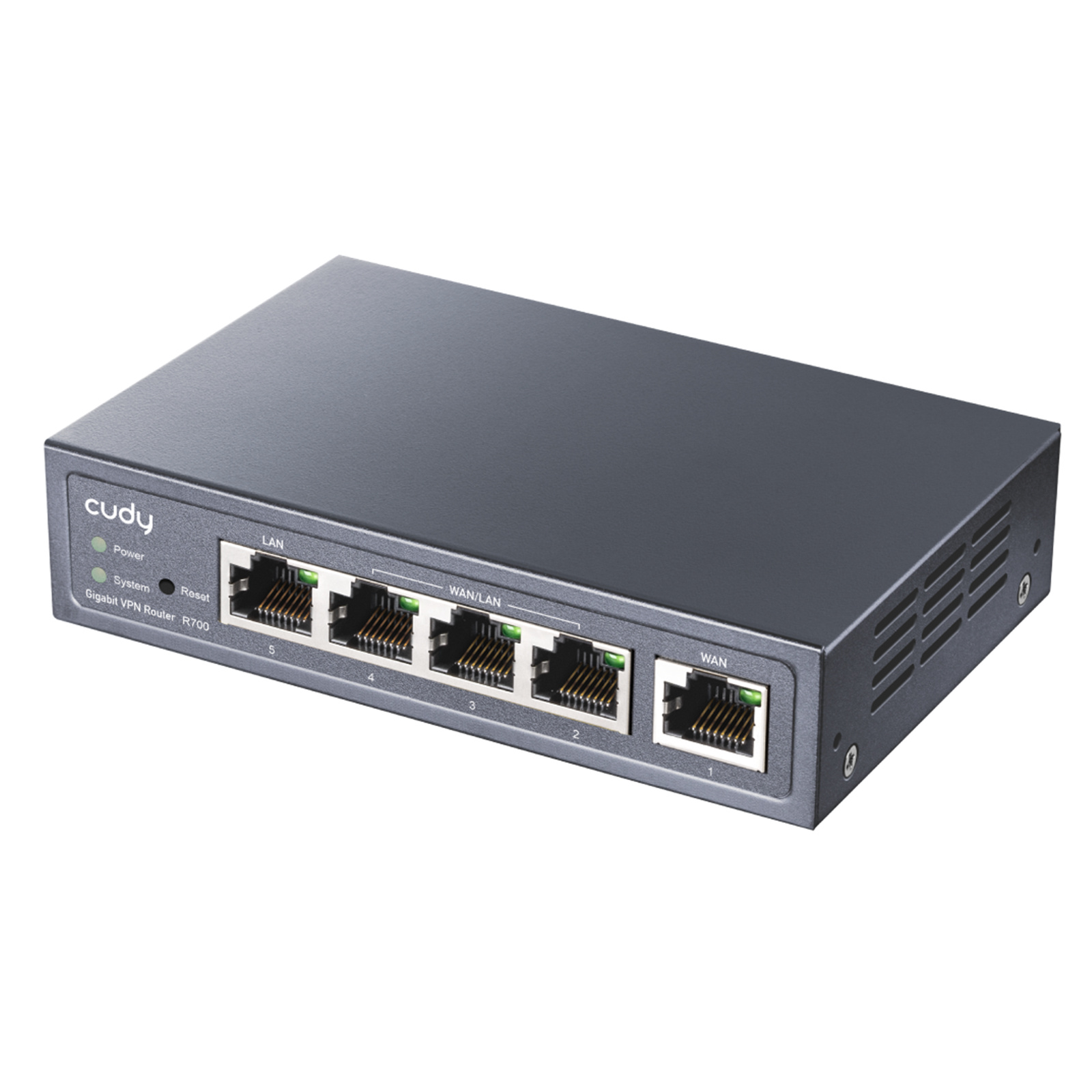

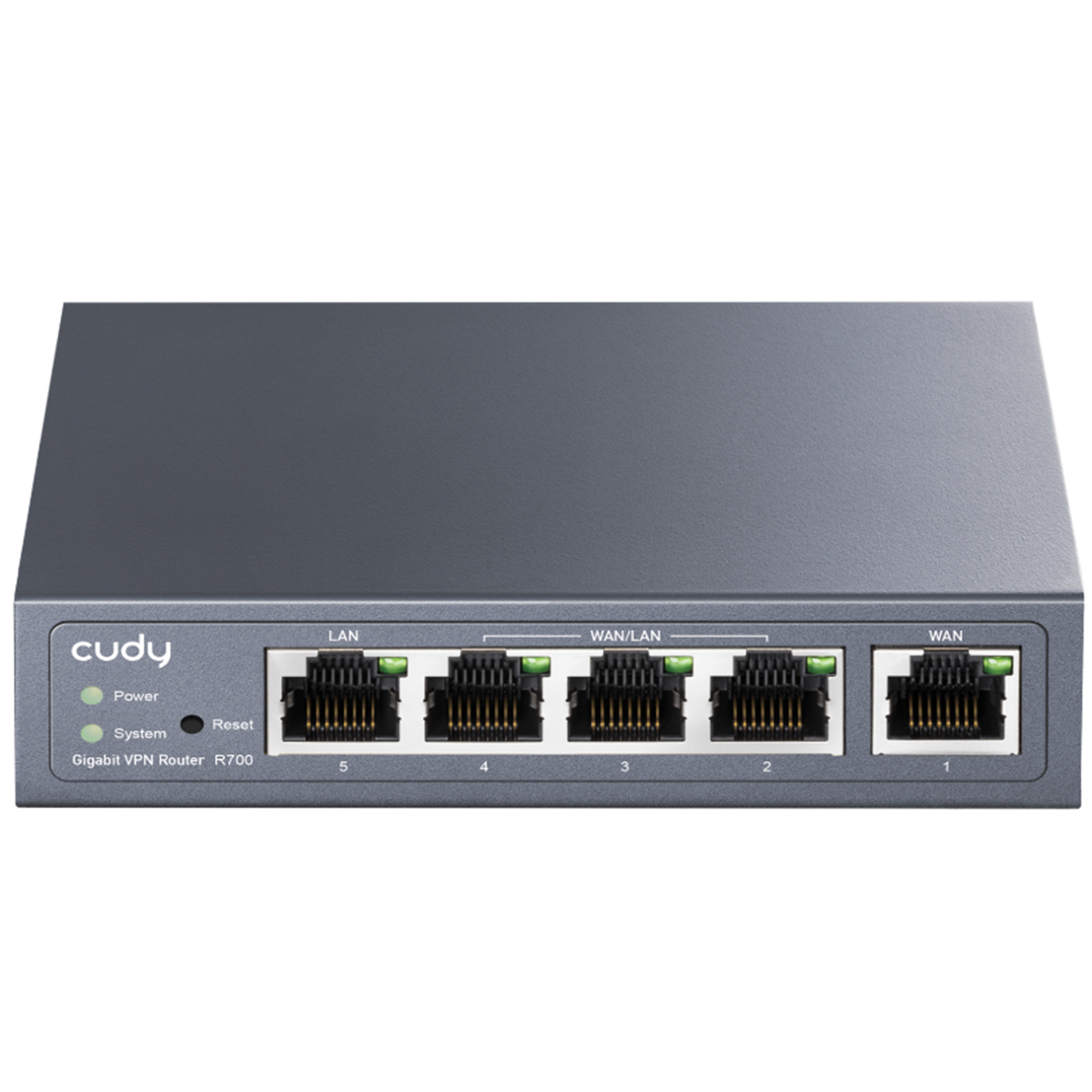

CUDY R700 Gigabit Multi-WAN VPN Gateway
1GbE x5
CUDY R700 Gigabit Multi-WAN VPN Gateway
1GbE x5
- Brand: CUDY
- MPN: R700
- Part #: NETCDY92985
- UPC: 6971690792985
View all shipping info
- Brand: CUDY
- MPN: R700
- Part #: NETCDY92985
- UPC: 6971690792985
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular VPN Routers





CUDY R700 Gigabit Multi-WAN VPN Gateway 1GbE x5
- Brand: CUDY
- MPN: R700
- Part #: NETCDY92985
- UPC:6971690792985

Product URL: https://www.pbtech.com/au/product/NETCDY92985/CUDY-R700-Gigabit-Multi-WAN-VPN-Gateway-1GbE-x5
Features
A router as the gateway of business networks, featuring up to four Multi-WAN for improved redundancy, load balancing, and VPN functions.
- 1� GbE WAN, 3� GbE WAN/LAN, 1� GbE LAN
- Load Blance or Link Backup Modes
- VPN, Firewall, Routing
Powerful VPN Server and Client
R700 supports PPTP/ L2TP/ WireGuard/ OpenVPN/ IPsec protocols. The dashboard allows you to assign all or specific clients to use the VPN. It can force all traffic from the selected clients to satisfy more secure demanding scenarios than a standard proxy method.
Multi-Wan Load Balancing
Intelligent load balancing function distributes data streams according to the bandwidth proportion of each WAN port to raise the utilization rate of multi-line broadband, allowing one device to satisfy various internet requirements.
Internet Access Management Strategy
Standardize users' online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL).
Flexible Traffic Control
Bandwidth Control and Session Limit enables the administrators to manage network bandwidth to optimize usage.
Compact Desktop Design
Durable metal casing and desktop/wall-mounting design suited for different environments.
Specifications
Model
R700
General
WAN Mode
DHCP
Static IP
PPPOE
Multi-WAN
Up to 4× WAN Ports
Load Balancing
Online Detection
Weighted Diversion
Reply to Origin
Max Concurrent Sessions
25000
CPU
CPU Details
880 MHz Dual-Core
Memory/Storage
Flash/ROM
16 MB (128 Mbit) NOR
DDR/RAM
128 MB (1 Gbit) DDR3
Interfaces
Gigabit RJ45 Ports
5
Ethernet Notes
1× WAN Port, 3× WAN/LAN Ports, 1× LAN Port
LED
Power
System
Speed/Link/ACT of Ethernet Port
Physical Buttons
Reset Button
Power Input
DC Jack
Power
Power Methods
DC
DC
12V 1A
Power Adapter
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability
Environment
Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Grounding Methods
Grounding Point
Certifications
Certifications
FCC, CE
Mechanical
Installation
Desktop
Wall-mount
Casing Material
Metal
Dimension
119×85×28 mm
4.69×3.35×1.1 inches
Product Weight
273 g (9.63 oz.)
