Cisco ATA192-3PW-K9 2-Port Analog Telephone Adapter for Multiplatform

Hardware:

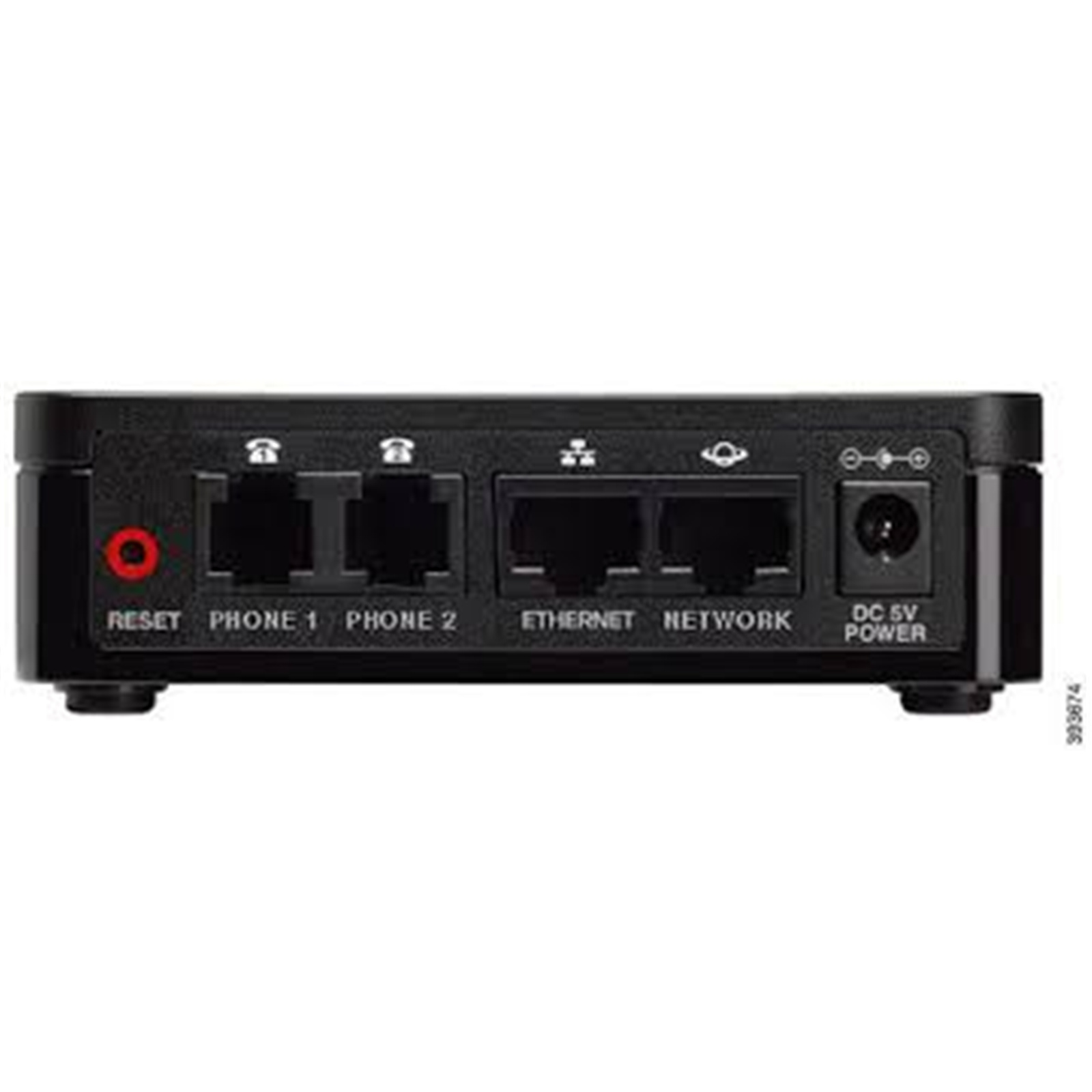

- Interface: Two RJ-11 FXS ports, two 10/100 Mbps RJ-45 Ethernet ports,
- Power button: Reset / Problem Reporting (PRT)
- LED indicators: Power, Network, Phone 1, Phone 2, PRT
- Wall mountable

Subscriber Line Interface Circuit (SLIC):

- Ring voltage: 40 to 90 Vpk configurable
- Ring frequency accuracy: 1%
- Ring waveform: Trapezoidal or sinusoidal
- Maximum ringer load: 3 Ringer Equivalence Numbers (RENs)
- On-hook voltage (tip and ring): -46 to -56V
- Off-hook current: 25mA +/- 10%
- Terminating impedance: 600 ohm resistive, 900 ohm resistive, or 220 ohm + 820 ohm
- 120 nF complex impedance
- Frequency response: 300 to 3400 Hz
- Return loss (600 ohm, 300 to 3400 Hz): up to 26 dB
- Idle channel noise: < -65 dBm 0p
- Longitudinal balance: 58 dB (typical)
- Voice quality Mean Opinion Score (MOS): > 4.0
- Voice quality jitter: < 150 ms

Networking:

- MAC address
- IPv4 only
- IPv6 only
- IPv4/IPv6 dual stack
- Session Initiation Protocol (SIP)
- Transmission Control Protocol (TCP)
- User Datagram Protocol (UDP)
- Real Time Protocol (RTP)
- Real Time Control Protocol (RTCP)
- HTTP
- HTTPS
- Trivial File Transfer Protocol (TFTP)
- Address Resolution Protocol (ARP)
- DNS A/AAAA and SRV records
- Dynamic Host Configuration Protocol (DHCP) client
- Internet Control Message Protocol (ICMP)
- Simple Network Time Protocol (SNTP)
- Cisco Discovery Protocol
- Link Layer Discovery Protocol (LLDP)
- Point-to-Point Protocol over Ethernet (PPPoE)

Routing:

- Routing and bridging
- Static and dynamic address assignment
- Network Address Translation (NAT)
- DHCP client reservation
- MAC address cloning
- Port forwarding
- DMZ mode
- VPN pass-through: IP Security (IPsec) Encapsulating Security Payload (ESP), Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP)

Quality of Service (QoS):

- IEEE 802.1p/Q (QoS and VLAN tagging)
- Differentiated Services (DiffServ), Type of Service (ToS)

Telephony:

- Anonymous call and call blocking
- Call forwarding: No answer, busy, and all
- Call hold and resume
- Caller ID blocking
- Caller ID generation (name and number): Bellcore, BT, and European Telecommunications Standards Institute (ETSI)
- Caller ID with name and number
- Call pickup and group pickup
- Call transfer, call return, and call back on busy
- Call waiting
- Configurable ring frequency
- Configurable tones and cadences
- Disconnect tone
- Distinctive ringing: Calling and called number
- Do not disturb
- Forced Authorization Code (FAC)/Client Matter Code (CMC)
- Flash hook timer
- Hook flash event signaling
- Hotline and warm line calling
- Message Waiting Indicator (MWI) tones
- Music on hold
- Off-hook warning tone
- Polarity control
- Redial
- Selective and anonymous call rejection
- SIP redundancy
- Speed dial
- Streaming audio server: Up to 4 sessions
- Three-way conference calling with local mixing
- Tip and ring voltage adjustment setting
- Visual Messaging Waiting Indicator (VMWI) using frequency shift keying (FSK)
- Network Address Translation (NAT)
- Session Traversal Utilities for NAT (STUN)

Audio:

- Codec: G.711 a-law, G.711 ?-law, G.729a, G.729ab, G.726
- Codec name assignment
- Full-duplex audio
- Echo cancellation
- Voice activity detection
- Silence suppression
- Configurable silence threshold
- Comfort noise generation
- Adaptive jitter buffer
- Frame loss concealment
- Adjustable audio frames per packet
- Call progress tone generation
- Impedance and gain adjustment
- Dynamic audio payload

Fax:

- Real-time fax over IP via T.38 fax relay (Group 3)
- Fax pass-through via G.711 (Group 3)
- Fax tone detection and pass-through
- Automatic negotiation on transmission rate

Provisioning and management:

- Cloud provisioning (remote configuration)
- Web-based administration
- Interactive Voice Response (IVR)
- Automated provisioning and upgrading via HTTP, HTTPS, and TFTP
- TR-069
- SSH access
- Simple Network Management Protocol (SNMPv3)
- Report generation and event logging
- Dedicated PRT button
- Support for RTP statistics
- Syslog (multilevel granularity)
- Ping and trace route diagnostics
- Configuration management: Backup and restore
- Dual image

Security:

- Password-protected system reset to factory default
- Password-protected administrator and user access authority
- Provisioning, configuration, and authentication
- HTTPS with factory-installed client certificate
- Advanced Encryption Standard (AES) encryption
- SIP over Transport Layer Security (TLS1.1 and TLS1.2)
- Secure (encrypted) calling using Secure RTP (sRTP)
- Encrypted configuration files
- Image authentication
- Secure boot
- Secure Shell (SSH)

Power:

- DC input voltage: 5V DC at 2.0A maximum
- Power consumption: 5W
- Switching type (100-240V) automatic
- Power adapter: 100-240V and 50-60 Hz (26-34 VA) AC input, with 1.8 m cord

Reliability:

- Mean Time Between Failures (MTBF): 300,000 hours
- Operating temperature: 0° to 40°C
- Nonoperating temperature: -10° to 60°C
- Humidity: Operating 10% to 90%, non-condensing / nonoperating 10% to 95%, non-condensing

Compliance (regulatory):

- CE Markings per directives 2014/30/EU and 2014/35/EU

Compliance (safety)

- UL 60950 Second Edition
- CAN/CSA-C22.2 No. 60950 Second Edition
- IEC 60950-1:2005 (Second Edition) + A1:2009 + A2:2013 and/or AS/NZS 60950.1:2015

Compliance (EMC)

- AS/NZS CISPR 32:2015 Class B
- CISPR 32: 2015 Class B
- EN 55032: 2015 Class B
- EN 61000-3-2: 2014 Class A
- EN 61000-3-3: 2013
- EN 55024:2010+A1: 2015
- EN 61000-4-2: 2009
- EN 61000-4-3: 2006+A1:2008+A2:2010
- EN 61000-4-4: 2012
- EN 61000-4-5: 2014
- EN 61000-4-6: 2014+AC?2015
- EN 61000-4-8: 2010
- EN 61000-4-11: 2004
- FCC Part 15, Subpart B
- ANSI C63.4-2014
- ICES-003 Issue 6: 2016
- ANSI C63.4-2014
- VCCI-TECHNICAL REQUIREMENTS (VCCI-CISPR 32: 2016)
- CISPR 32: 2015 class B

General Specifications:

- Dimensions (HxWxD): 100 x 100 x 28 mm
- Weight (approx.): 132.1 g
