HyperLink Technologies LP-21 4-Port 10/100/1000 Base-T Gas Tube CAT6 Lightning Protector
HyperLink Technologies LP-21 4-Port 10/100/1000 Base-T Gas Tube CAT6 Lightning Protector
- Brand: HyperLink
- MPN: LP-21
- Part #: NETEHPL1077
- UPC: 822335237209
View all shipping info
- Brand: HyperLink
- MPN: LP-21
- Part #: NETEHPL1077
- UPC: 822335237209
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





HyperLink Technologies LP-21 4-Port 10/100/1000 Base-T Gas Tube CAT6 Lightning Protector
- Brand: HyperLink
- MPN: LP-21
- Part #: NETEHPL1077
- UPC:822335237209

Product URL: https://www.pbtech.com/au/product/NETEHPL1077/HyperLink-Technologies-LP-21-4-Port-101001000-Base
Features

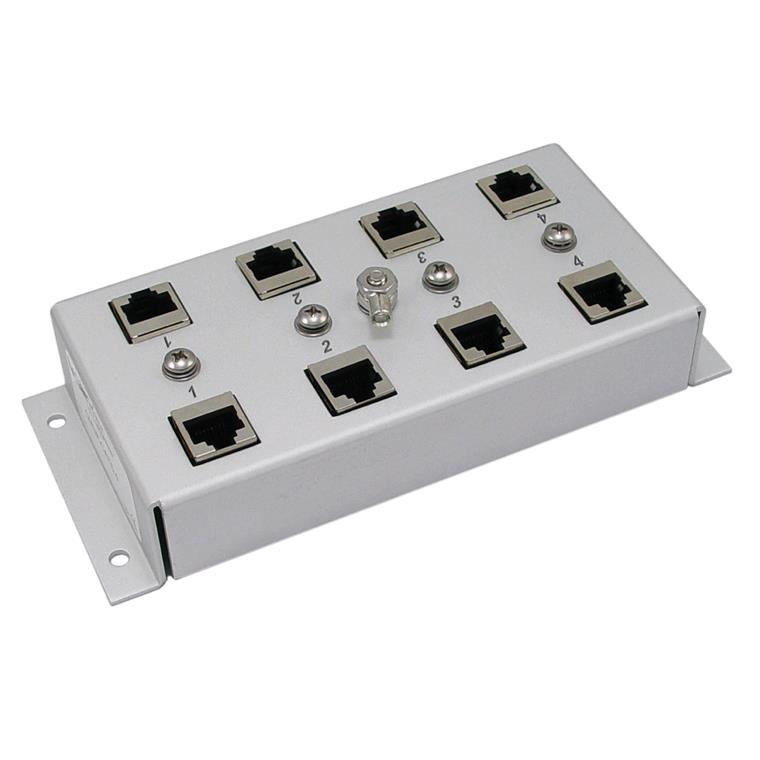

The CMSP-CAT6T-4 lightning and surge protector provides superior lightning and surge protection for up to four lines with improved frequency response for indoor 10/100/1000 Ethernet networks. The unit has low line to line and line to ground capacitance to minimize distortion of high-speed signals. This design provides protection for both common and differential mode surges. The CMSP-CAT6T-4 utilizes gas discharge tubes on each pair for superior power handling capability. The CMSP-CAT6T-4 features eight shielded RJ-45 jacks for ease of installation. The rugged aluminum chassis can be wall or shelf mounted. Mounting holes are provided on the unit.This protector is compatible with 802.3af/at Power-over-Ethernet (PoE) devices. It supports both PoE modes A and B for power.
- CAT5, CAT5e and CAT6 compatibility
- Reliable differential gas tube protection
- PoE compatible
- Protects up to 4 Ethernet lines
- Field replaceable modules
- 10/100/1000 Base-T Gigabit Ethernet Equipment
- Wireless Access Points & Bridges
- Wireless Client Adapters
- CCTV IP Cameras with PoE
Specifications
Connector Type 1
4x RJ45 Female
Connector Type 2
4x RJ45 Female
PoE Clamping Voltage
90V
PoE Mode Support
802.3af/at (Mode A and B)
