Go Wireless PT-PSE100GF 48V DC 15.4 Watt 802.3af Gigabit Power over Ethernet Power Supply
- Brand: Go Wireless
- MPN: PT-PSE100GF
- Part #: NETGWL1108

Product URL: https://www.pbtech.com/au/product/NETGWL1108/Go-Wireless-PT-PSE100GF-48V-DC-154-Watt-8023af-Gig
Features

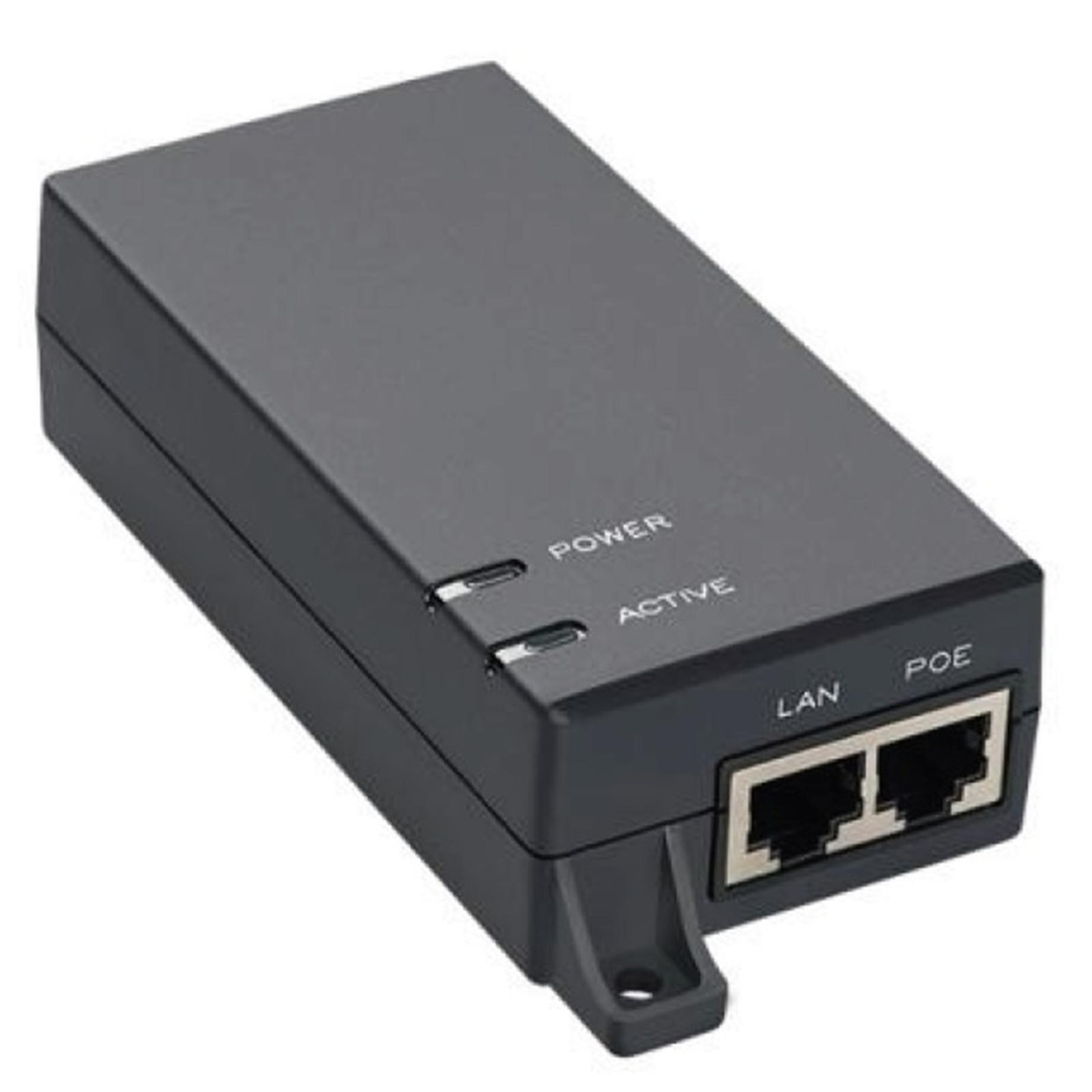

48V DC 15.4 Watt 802.3af Gigabit Power over Ethernet Power Supply. The PT-PSE100GF is a single port PoE Injector. It provides 48Vdc, 0.32A power for remote PDs over 2-pairs. It supports both 10/100 Base-T and Gigabit device. It works for 15.4W PoE PDs, such as wireless APs, Network cameras, IP Phones and other power Ethernet terminals. It complies to IEEE802.3af PoE standard. Suitable for Grandstream Access Points GWN Series
- Output: 48Vdc 320mA 15.4W 802.3af
- Transmission Rate: 10/100/1000Mbps
- Power Pin: 4/5(+),7/8(-)
Specifications
Manufacturer's Product Code
PT-PSE100GF
Standards
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, Support IEEE802.3af PoE standard terminals, RoHS Compliance, WEEE Compliance
Input
100-240Vac 0.5A 50/60HZ
Output
48Vdc 320mA 802.3af
Power Pins
4/5(+), 7/8(-)
Date Speed
10/100/1000Mbps
Operating Temperature
0? to 40?
Operating Humidity
20% to 80%, non-condensation
Storage Temperature
-20? to 70?
Storage Humidity
10% to 90%, non-condensation
Operating Altitude
up to 2000meters
AC Surge Protection
1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE
Case
Plastic
Color
Black
Mounting
Wall-mounted
IP Rated
IP40
Size
134mm X 56mm X 33mm
Weight
175g
Safety Approvals
CE, FCC
EMI
FCC CFR47 Part 15, EN55024, EN55032
EMS
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge)
Power Port: ±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity
IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall)
LED Indicator
Power Indicator: Green, PoE Load Indicator: Green
