Advantech WISE-2410-NB LoRaWAN Condition Monitor

PB Tech price

$ 388 .91

+GST

$ 427 .81

inc GST

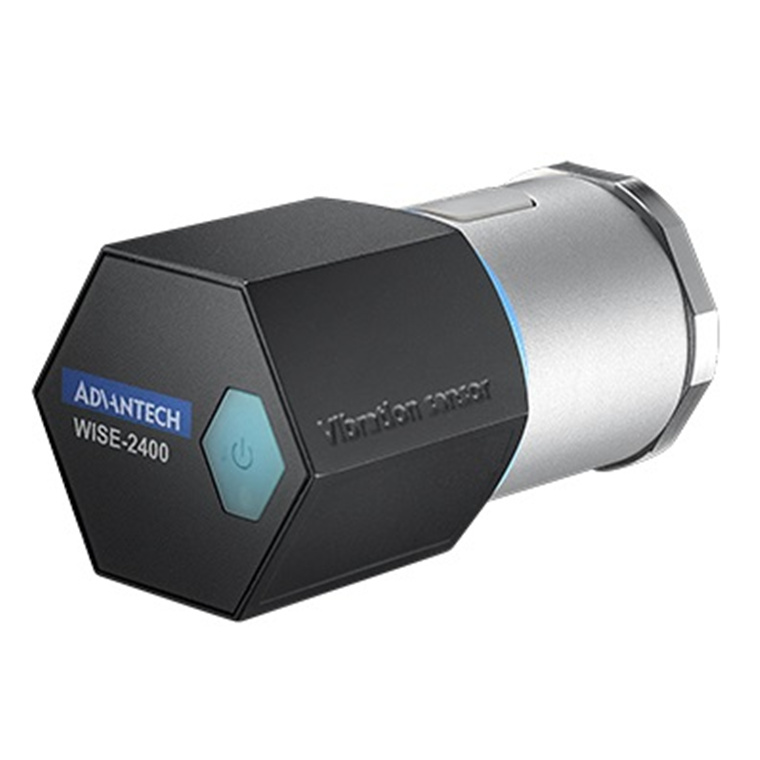

Advantech WISE-2410-NB LoRaWAN Condition Monitor

Brand: Advantech
MPN: WISE-2410
Part #: NETGWL1117
UPC:

NEW ARRIVAL

PB Tech price

$ 427 .81

inc GST

+GST inc GST

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 11 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: WISE-2410
Part #: NETGWL1117
UPC:

Be the first to review this product

Colour

Black

Returns & Warranty Bulk Quote Print Page

Features

WISE-2410 is a LoRaWAN wireless condition monitoring sensor integrated with an ARM Cortex-M4 processor, LoRa transceiver, 3-axis accelerometer and temperature sensor. It balances the wireless bandwidth between WISE-2410 and the gateway, so it also mitigates the data transmission fail rates between edge-devices and gateways.

The WISE-2410 is a LoRaWAN uses a star network topology and features a gateway data relay function between sensors and the application server. The communication between the sensors and gateway goes over the wireless channel, utilizing the LoRa physical layer, whilst the connection between the gateways and the central server are handled over a backbone IP-based network or over Modbus protocol to the application server.

With an ARM Cortex-M4 Processor, WISE-2410 enables users to implement more features inside. WISE-2410 is able to calculate more complex eigenvalues itself, such as VRMS, ARMS, Peak, Displacement, Kurtosis, Crest factor, Skewness and Standard Deviation values. With its edge computing capability, WISE-2410 can balance the loading between WISE2410, gateway, and cloud service.

Plug & Play with 2-year Battery life cycle WISE-2410 includes two 3.6V AA battery holders. Along with LPWAN technology verified by Advantech, the battery life on WISE-2410 can be up to 2 years with once per hour data update interval time. With IP66 protection design, WISE-2410 is ideal for Low-Power Wide-Area Network (LPWAN) applications, such as pumps, HAVC system, motors, facility monitoring and more. WISE-2410 connects to Advantech's WISE Studio Utility for more user friendly and efficient installation.

- LoRaWAN wireless connectivity
- Built-in 3-axis accelerometer and temperature sensor
- On-board computing. Directly sends VRMS, ARMS, Peak, Displacement, Kurtosis, Crest factor, Skewness and Standard Deviation values to applications
- Support battery power supply, no wiring installation needed
- Easy settings with user friendly interfaces on WISE Studio utility
- ISO 10816-1 compliant
- Support wide temperature -20 ~ 80 °C (Battery-powered)
- IP66 enclosure design

Specifications

Manufacturer Product Code

WISE-2410-NB

Frequency Band

EU 863-870 (MHz) / RU 864-870 (MHz), US 902-928 (MHz) / AU 915-928 (MHz), AS 919-924 (MHz) / TH 920-925 (MHz), JP 920-928 (MHz) TW 920.3-923.4 (MHz)

Spreading Factor

7 - 12

Transmit Power

Up to 20dBm

Topology

Star (LoRa/LoRaWAN)

Sensitivity

-148dB

Data Rate

50 kbps at FSK mode EU, 21.9 kbps at SF7 mode US, 5.47 kbps at SF7 mode for JP/TW

Power Input

3.6V AA Battery *2pcs (Not included)

Battery Life

2 years (once per hour data update interval time)

LED Indicator

Power, Tx

Configuration Interface

Micro-B USB

IP Class

IP66

Mounting

Stud mount, Mounting pad and Adhesives

Dimension (H x D)

84.7 x 48.3 mm

Certification

CE (RED), FCC, NCC, TELEC, VCCI, BSMI, RCM, ANATEL

Axis

X-Y-Z

Frequency Range

10~1000Hz

Amplitude Range

±16g

Statistical Time-Domain

Velocity RMS, Acceleration (RMS & peak), Displacement, Kurtosis, Crest factor, Skewness, Standard deviation

Output Data Rate

6600Hz

Resolution

10 bit (all g range)

Accuracy (FC =100Hz)

Under 5%

Noise (MAX. TA = 25°C. 0g)

±40mg

Nonlinearity

±0.5 %

Cross-Axis Sensitivity

±1 %

Sensitivity Change Due to Temperature

±0.02 %/°C

Measurement Range

-20°C ~ 120°C

Accuracy

-2°C with 85°C, (TA = 27°C, Directly contact -5°C with 120°C with heat source (Metal Base of WISE-2410)

Operating Temperature

-20°C ~ 80°C (Battery powered)

Operating Humidity

10% ~ 95% RH

Storage Temperature

-25°C ~ 90°C

Storage Humidity

5% ~ 95% RH

Manufacturer Part No:

WISE-2410

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

2 kg

PB Part No:

NETGWL1117

Product Model:

WISE-2410-NB

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
