HP HPE JC683A 58x0AF Frt(ports)-Bck(pwr) Fan Tray
- Brand: HP
- MPN: JC683A
- Part #: NETHPE1836252

Product URL: https://www.pbtech.com/au/product/NETHPE1836252/HP-HPE-JC683A-58x0AF-Frtports-Bckpwr-Fan-Tray
Features

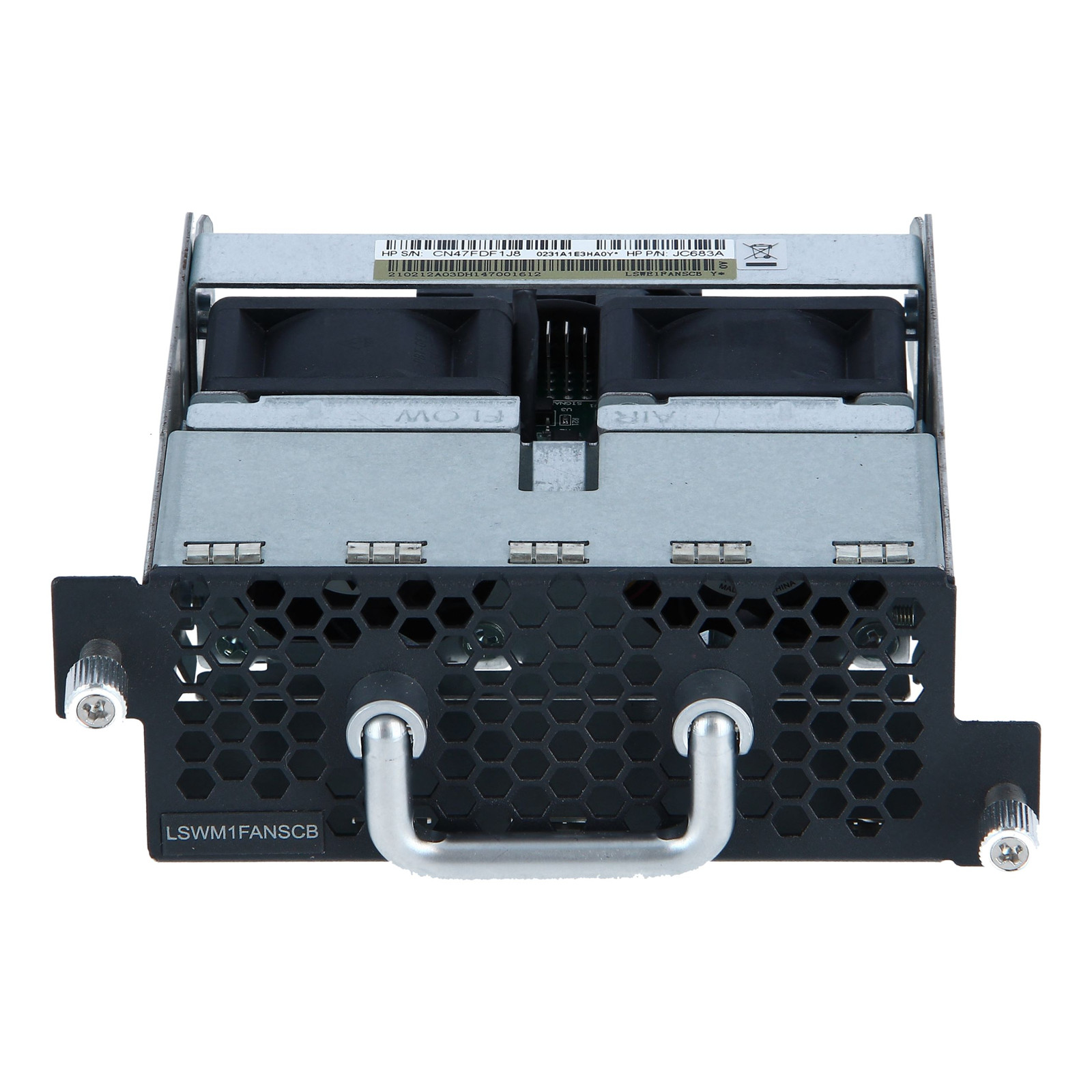

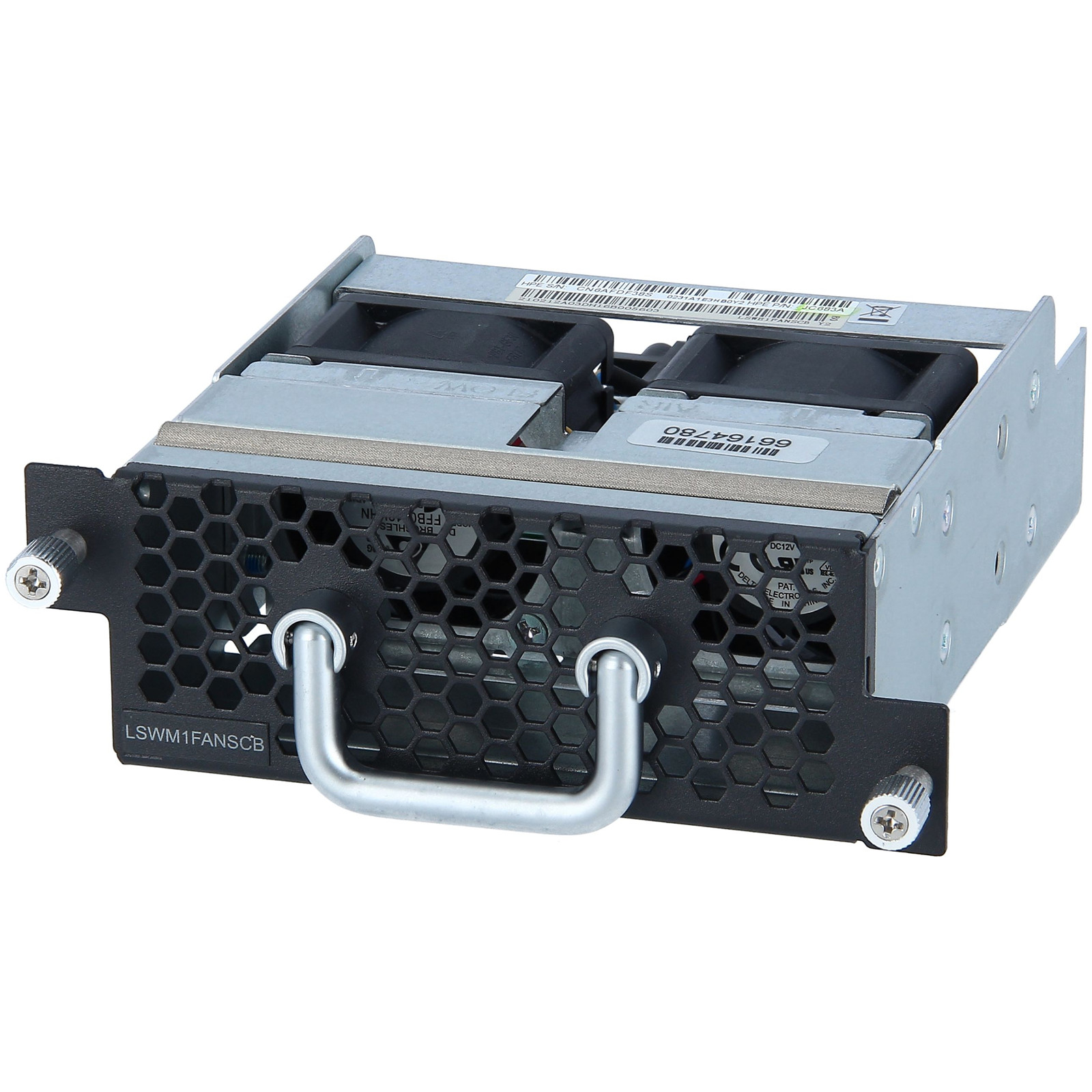

HP (JC683A) 58x0AF Front(ports)-Back(power) Fan Tray

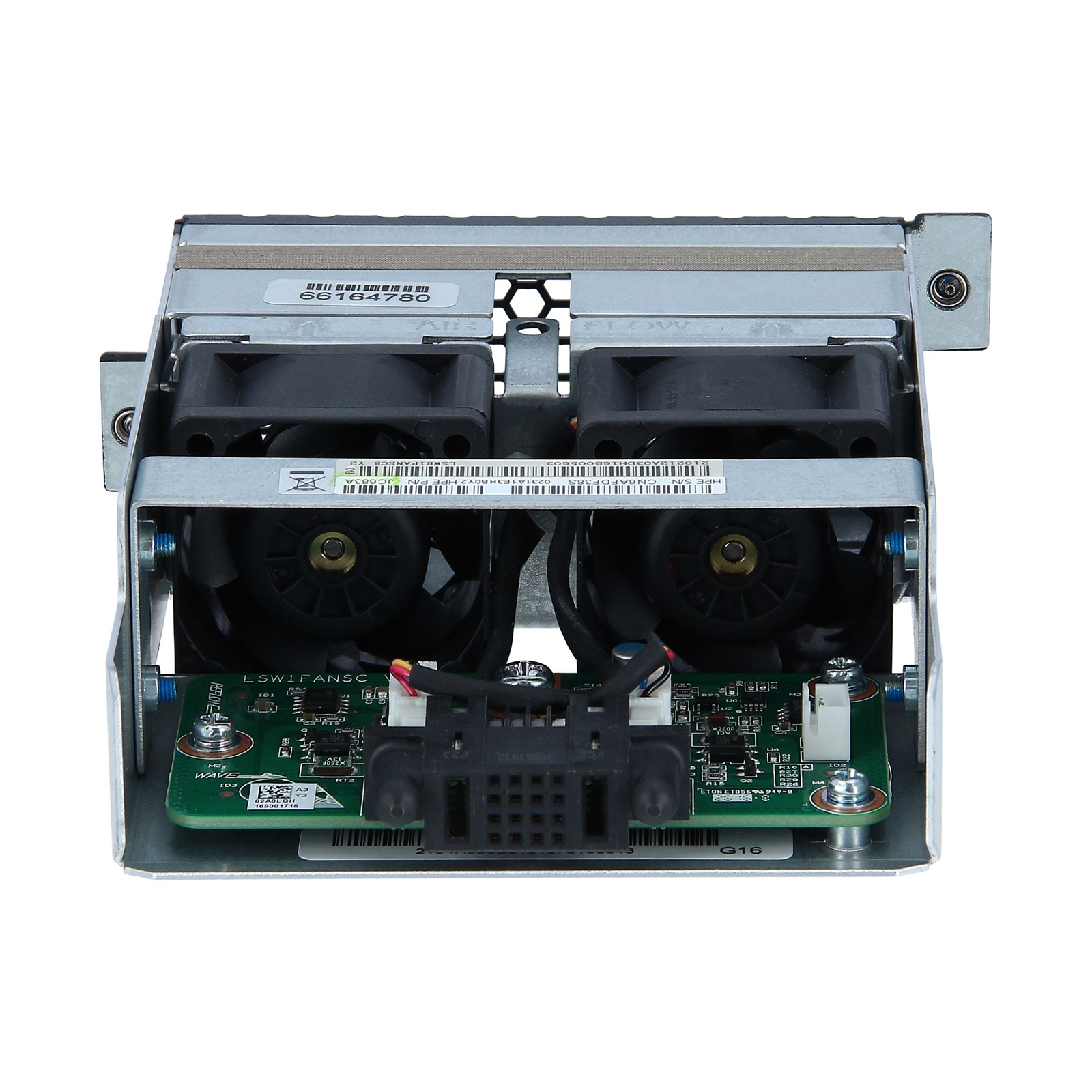

The LSWM1FANSCB (JC683A) fan tray draws in hot air from the front (port side) to the back (power side). It comprises two separate fans. The LSWM1FANSCB features small size, fast heat dissipation, and hot swapping. It can automatically adjust the fan speed, providing powerful heat dissipation for the device.
PB Tech is a HP Gold Partner
Specifications
Manufacturer
HPE
Manufacturer Part Number
JC683A
Product Name
58X0AF Front Port Side to Back Power Side Airflow Fan Tray
Product Type
Fan Tray
Fans
Two 40 × 40 × 28 mm (1.57 × 1.57 × 1.10 in) fans
Airflow Direction
Fans draw in air from the network port side to thepower module side
Max Fan Speed
18500 R.P.M
Max Airflow
45 CFM
Max Power Consumption
19.5 W
Voltage
12 V
Operating Temperature
-10°C to 70°C (14°F to 158°F)
Relative Humidity
5% to 95% (non condensing)
Storage Temperature
-40°C to 75°C (-40°F to 167°F)
Relative Humidity
5% to 95% (non condensing)
Compatibility
HPE FF 5940 48SFP+ 6QSFP+ Switch
HPE FlexFabric 5700-32XGT-8XG-2QSFP+ Switch
HPE FlexFabric 5700-40XG-2QSFP+ Switch
HPE FlexFabric 5700-48G-4XG-2QSFP+ Switch
HPE FF 5900AF-48G-4XG-2QSFP+ Switch
HPE FF 5900AF-48XG-4QSFP+ Switch
HPE FlexFabric 5900CP-48XG-4QSFP+ Switch
HPE 5900AF-48G-4XG-2QSFP B-F Bundle
HPE 5900AF-48G-4XG-2QSFP F-B Bundle
