Juniper Networks EX2300 Compact Fanless 12 port 10 100 1000BaseT PoE+ 2 x 1 10G SFP SFP+ (optics sold separately)
Out of stock
Juniper Networks EX2300 Compact Fanless 12 port 10 100 1000BaseT PoE+ 2 x 1 10G SFP SFP+ (optics sold separately)
- Brand: Juniper Networks
- MPN: EX2300-C-12P
- Part #: NETJUN1024
- UPC: 832938070899
View all shipping info
- Brand: Juniper Networks
- MPN: EX2300-C-12P
- Part #: NETJUN1024
- UPC: 832938070899
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Juniper Networks EX2300 Compact Fanless 12 port 10 100 1000BaseT PoE+ 2 x 1 10G SFP SFP+ (optics sold separately)
- Brand: Juniper Networks
- MPN: EX2300-C-12P
- Part #: NETJUN1024
- UPC:832938070899

Product URL: https://www.pbtech.com/au/product/NETJUN1024/Juniper-Networks-EX2300-Compact-Fanless-12-port-10
Features

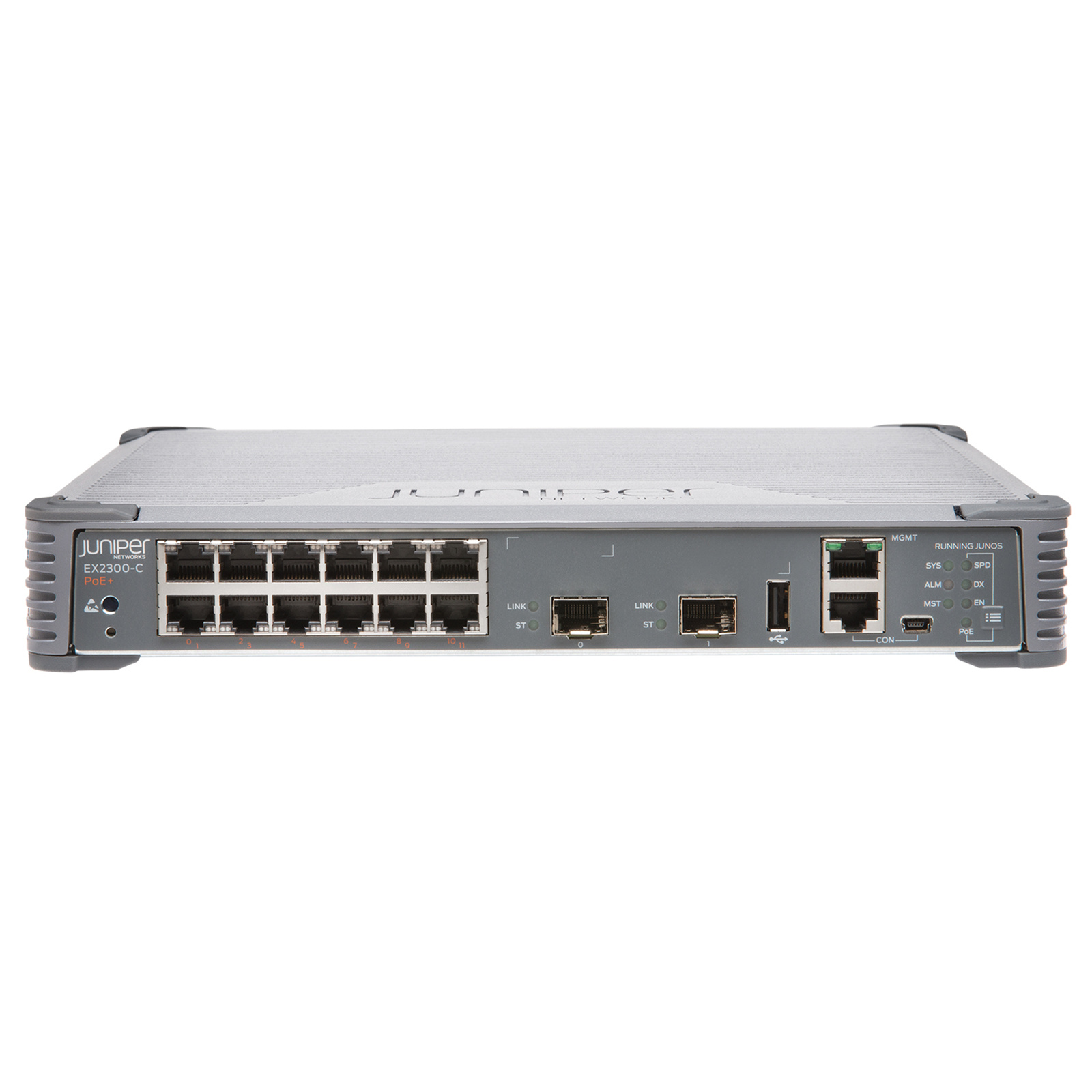

The EX2300-C Ethernet Switch offers a compact, power-efficient, cost-effective solution for low-density branch offices and enterprise workgroups. Featuring a fanless design, the EX2300-C is completely silent, making it ideal for open office deployments and commercial applications such as in retail stores. The EX2300-C offers 12 front-panel 10/100/1000BASE-T access ports and two optional SFP+ 10GbE uplink ports for connecting to higher level devices. Access ports are available both with and without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Working with a compatible EX Series switch, the EX2300-C supports Juniper's unique Virtual Chassis technology. Up to three of the switches can be interconnected with a fourth Virtual Chassis-compatible EX Series switch, enabling them to be managed as a single device. The EX2300-C can also act as a satellite device in a Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.
Specifications
10.98 x 1.72 x 9.4 in (27.9 x 4.4 x 23.9 cm)
Backplane
- 40 Gbps Virtual Chassis interconnect to link up to four switches as a single logical device
System Weight
6.99 lb (3.17 kg)
Environmental Ranges
- Operating temperature: 32° to 104° F (0° to 40° C)1, 2
- Storage temperature: -40° to 158° F (-40° to 70° C)
- Operating altitude: up to 5,000 ft (1524 m)
- Nonoperating altitude: up to 16,000 ft (4877 m)
- Relative humidity operating: 10% to 85% (noncondensing)
- Relative humidity nonoperating: 0% to 95% (noncondensing)
Cooling
- Fanless operation
Switching Engine Model
- Store and forward
DRAM
- 2 GB with ECC
Flash
- 2 GB
CPU
- 1.25 GHz ARM CPU
GbE port density per system
- 14 (12 access ports + 2 uplink ports)
Physical Layer
- Physical port redundancy: Redundant trunk group (RTG)
- Cable diagnostics for detecting cable breaks and shorts
- Auto medium-dependent interface/medium-dependent interface crossover (MDI/MDIX) support
- Port speed downshift/setting maximum advertised speed on 10/100/1000BASE-T ports
- Digital optical monitoring for optical ports
Packet-Switching Capacities (Maximum with 64-Byte Packets)
- 64 Gbps
