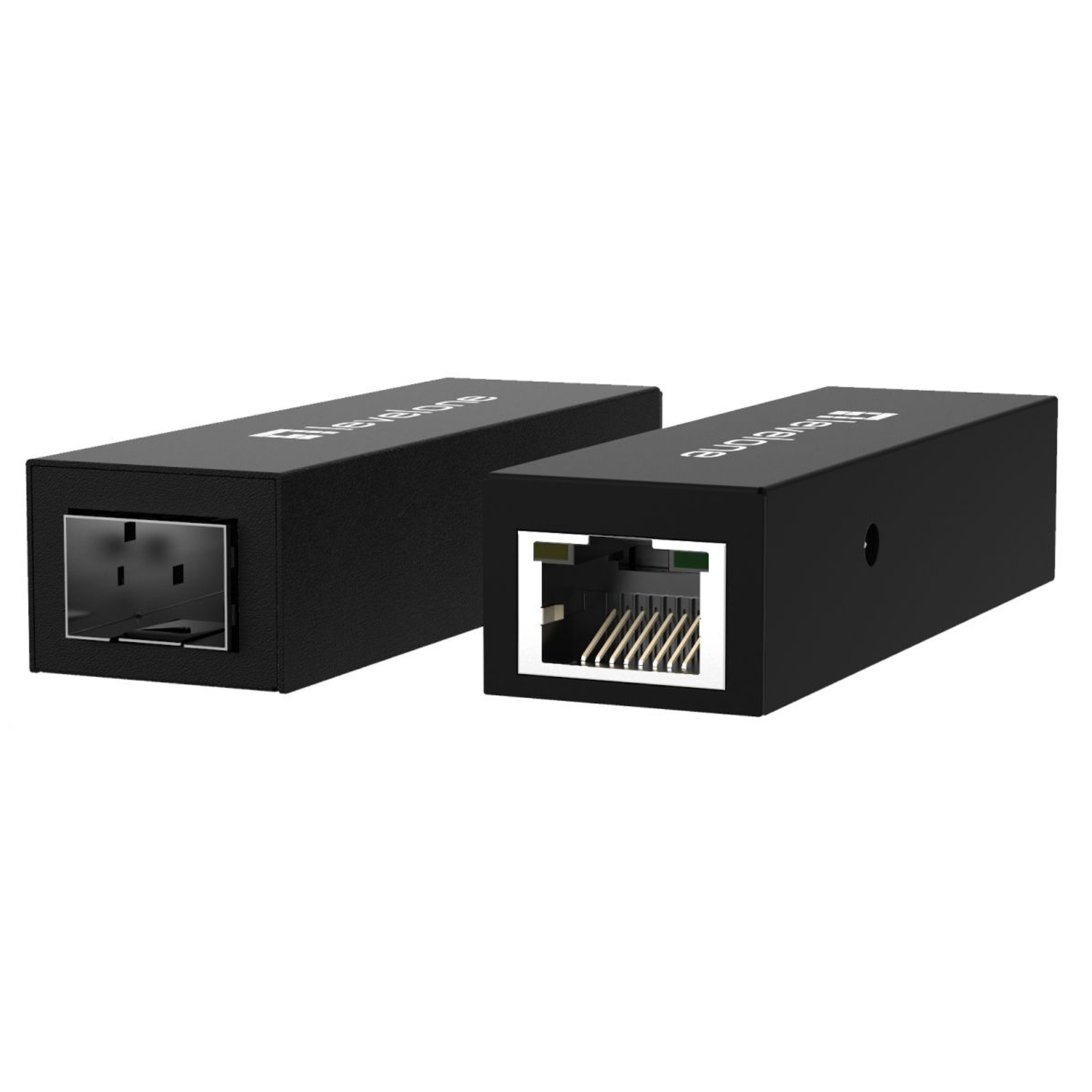

GVT-1001 Ultra-Slim RJ45 to SFP Gigabit Media Converter
The GVT-1001 is the ultra-slim plug-and play 10/100/1000Base-T to 1000Base-X media converter which is designed for applications where compact size, light weight and low power are critical requirements. It can be easily installed in tight places or conveniently slip into any pocket or laptop carrying case for easy portability with its ultra-slim size and super light weight.
This Ultra-Slim RJ45 to SFP gigabit media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. So this ultra-slim media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn't available. For applications not utilizing USB power, this converter is also available with a USB power adapter, providing compatibility with electrical outlet types. This media converter supports Jumbo frame 10 Kbytes and watchdog function, it can automatically reboot if frozen.- Support watchdog, automatically reboot if frozen.
- 10/100/1000Base-T to 1000Base-X
- SFP slot for flexible long distance transmission
- USB powered for easy portability or used with the included power adaptor
- Plug-and-Play and auto-MDI/MDIX
- Lower jitter and Lower latency
- Ultra low power dissipation<1.2W
- Support Jumbo frame 10Kbytes
Specifications
General
Brand
LevelOne
Manufacturer Part Number
GVT-1001
Color
Black
Dimensions (W x D x H)
23.3 x 79 x 18.5 mm
Product weight
0.056 kg
Features
Features
Fanless
Auto-MDI/MDIX
Auto-Negotiation
MTBF: 100,000 hrs
System specifications
Data rate
1Gbps
Indicators
Link/Active
10/100M link indicator
1000M link indicator
Jumbo frame (KB)
10
Mount
Desk mount
Port Configuration
10/100/1000Base-T to 1000Base-X
Power consumption
<1.2 Watt
Power input
DC 5V, 1000mA
Power supply
USB Power Adapter
Power supply included
Yes
Standard
IEEE 802.3 10/100/1000 BASE-T
IEEE 802.3z 1000BASE-X
Wavelength (nm)
Depend on SFP fiber optical transceiver
Miscellaneous
Fiber Optical Mode
Both
Media Interface
RJ45 to SFP
PoE supported
No
Manageable
No
Grade
Commercial
Others
Approval and compliance
CE, UKCA, RoHS
Operating humidity
5% RH ~ 95% RH
Operating temperature
-20°C ~ 70°C
Package contents
GVT-1001
USB power adapter with power cable
Quick Installation Guide
Declaration of Conformity
