LevelOne IGS-2105 6-Port Gigabit Industrial Smart Switch -40 C to 75 C DIN-Rail (Promotionalprice)

  • Brand: LevelOne
  • MPN: IGS-2105
  • Part #: NETLEL1010
  • UPC:
PB Tech price
$ 94 .23 $ 103 .65
 +GST  inc GST


Delivery: Order now and it ships on 19 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$94.23  +GST
$103.65

Features

IGS-2105 Hilbert 5-Port Industrial Gigabit Smart Lite Switch

The LevelOne IGS-2105 Hilbert Industrial gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. IGS-2105 delivers 5 (10M/100M/1G) RJ45 ports. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne IGS-2105 provides high HW performance and environment flexibility for Enterprises. IGS-2105 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

- 5 Gigabit Ethernet ports
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- 9K jumbo frames to increase data transfer rates
- Support STP/RSTP Spanning Tree Protocol
- IP Multicast Filtering through IGMP Snooping V1 / V2
- 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
- IEEE 802.1p QoS with 4 priority queues
- Supports unknown unicast / broadcast / multicast storm control
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- -40°C to 75°C operating temperature range
- 4KV surge protection, 6KV contact / 8KV air ESD protection

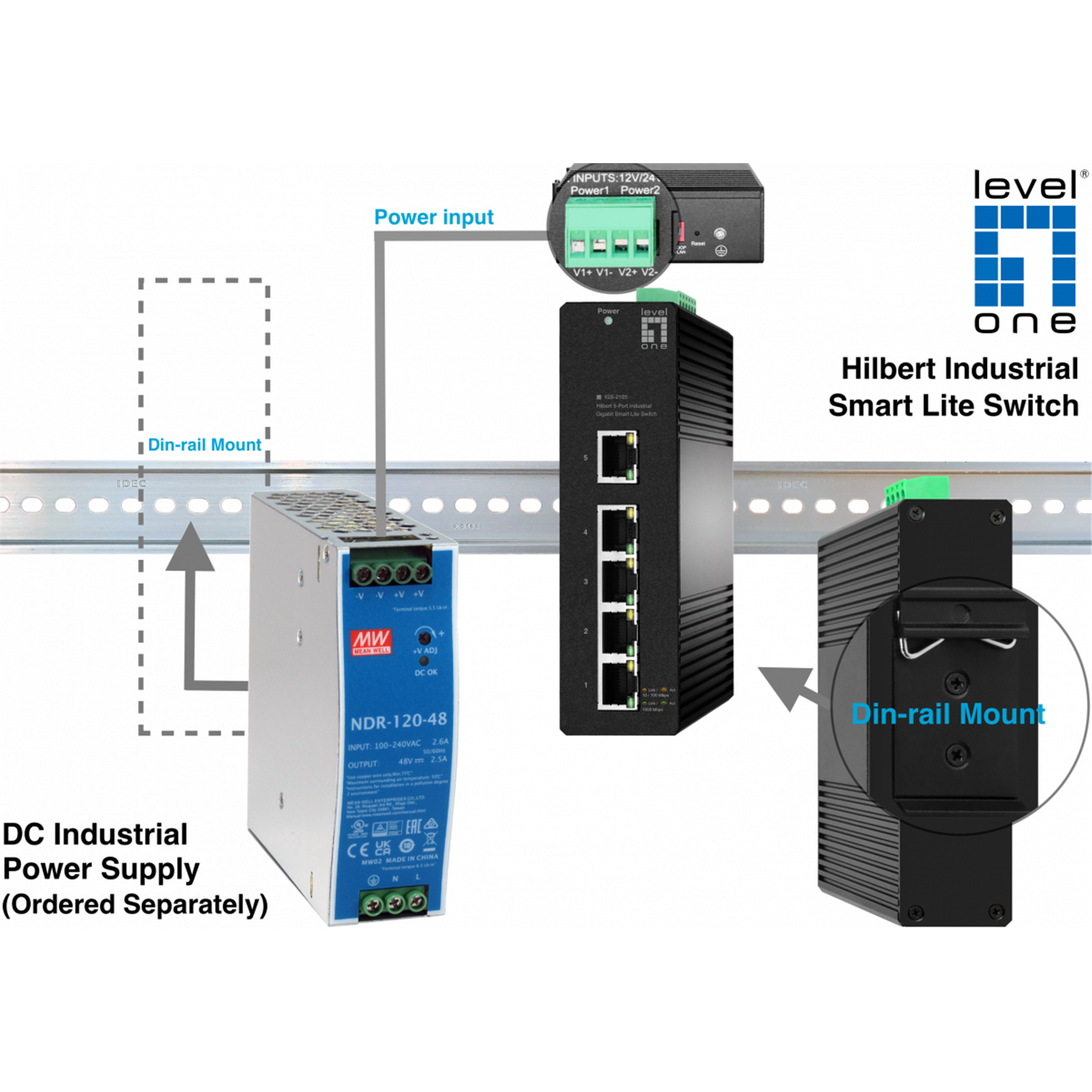

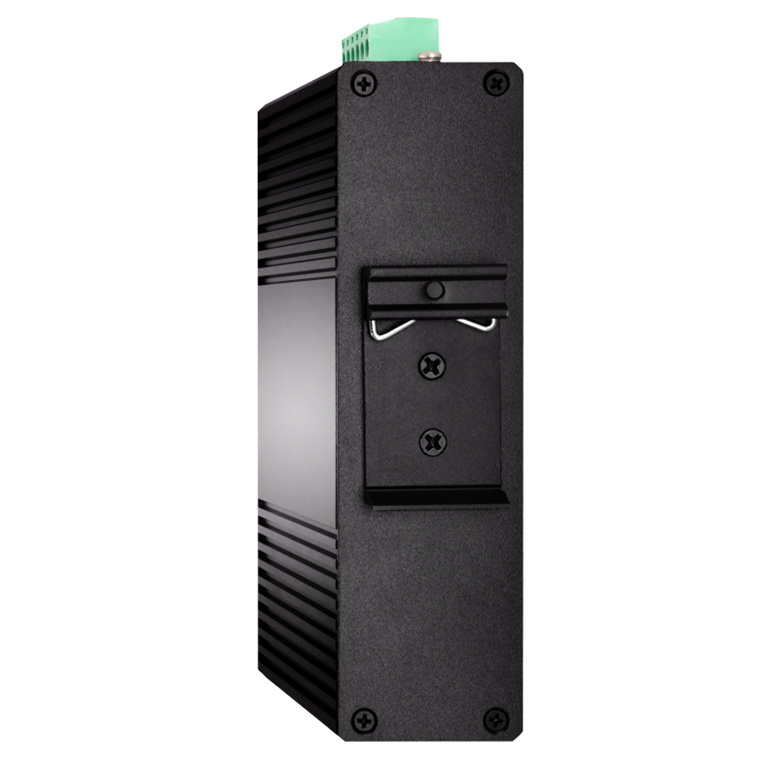

- Supports DIN-rail installation
- Web-based and smart lite Management
- Supports LevelOne IP Locator for easier IP management.

Specifications

General

Brand

LevelOne

Manufacturer Part Number

IGS-2105

Color

Black

Weight

0.35 kg

Dimensions (W x D x H)

136 x 108 x 38.5 mm

Features

Features

L2 Switching Features:
IGMP Snooping
Link Aggregation (Supports static link aggregation)
Port Mirroring
Cable Test

VLAN:
Supports up to 32 VLANs (out of 4K VLAN IDs)
MTU/Port/802.1Q VLAN

Quality of Service (QoS):
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

Management

Web-based Graphic User Interface (GUI)
Supports LevelOne IP Locator for easier IP management

Miscellaneous

Grade

Industrial

PoE Supported

No

Manageable

Yes

Fanless

Yes

Series

HILBERT series

Others

Approval and Compliance

CE
UKCA
FCC Part 15, Subpart B Class B
RoHS

Operating humidity

10% RH ~ 90% RH

Operating temperature

-40°C ~ 75°C

Storage humidity

5% RH ~ 95% RH

Storage temperature

-40°C ~ 85°C

Package Contents

IGS-2105
Power Terminal Block
Din-rail Mount Kit
Quick Installation Guide
Declaration of Conformity

Performance

Switching capacity

10 Gbps

System specifications

Power supply

VDC 12~57V

Data Rate

1Gbps

Power supply included

No

Power input

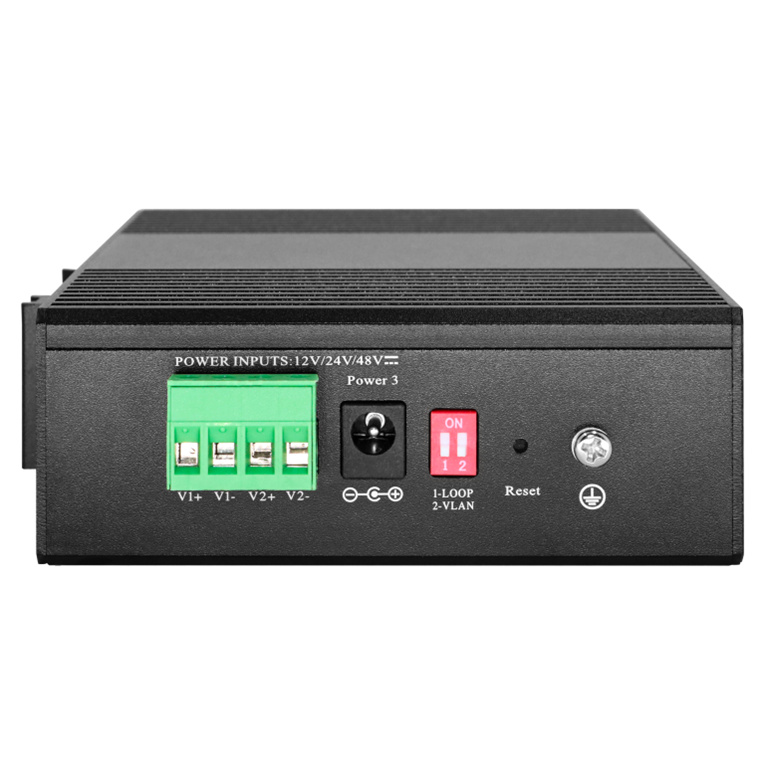

Redundant Dual DC 12V/24V/48V

Power consumption

5 W

MTBF

43,800 hrs

Heat dissipation

17.06 (Btu/H)

Packet forwarding rate

7.44 Mpps

Port Configuration

4x 10/100/1000 Ethernet ports, 1x 10/100/1000 Ethernet uplinks

IP grade

IP30

Standard

IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3az: Energy Efficient Ethernet
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

Acoustic noise (dB)

0 dB (A)

Mount

DIN rail mount

Flash memory size

2 MB

MAC address table

2 K

Jumbo frame (KB)

9 KB

Indicators

Power, Link/Act

Dip switch

LOOP, VLAN ON/OFF

Packet buffer

1.5 Mbits

Backplane (Gbps)

10
