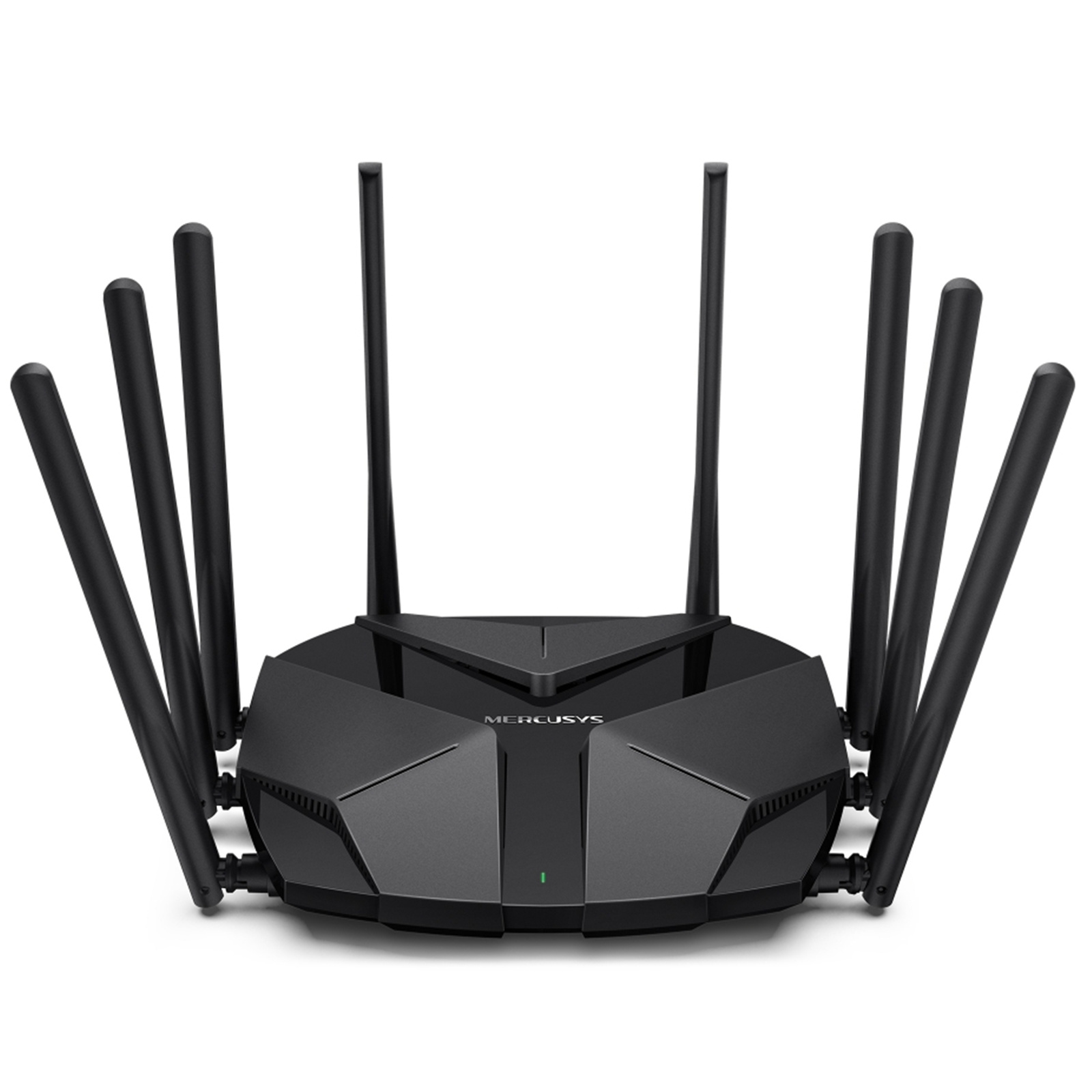

Mercusys MR90X (AX6000) Dual-Band WiFi 6 Router

MR90X

- OPTIMAL WIFI 6 SPEEDS - Optimal WiFi 6 speeds reaching up to 6 Gbps for faster browsing, streamings, and downloading, all at the same time.

- 2.5 Gbps MULTI-GIG PORT - Break through the 1G bottleneck and drive your devices to peak performance.

- MORE DEVICES, MORE FUN - Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.

- WiFi THAT GOES FARTHER - 8× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

- OVERALL SECURITY PROTECTION - The latest WPA3 provides improved WiFi security

- GIGABIT WIRED CONNECTIONS - Make full use of your internet access and transfer data at dizzying speeds for peak performance

- ECO-FRIENDLY POWER SAVING - Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions

- LESS WIFI INTERFERENCE - Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring

- SMART CONNECT - Intelligently chooses the best available band for each device

Super Fast WiFi 6 to 6 Gbps

Armed with 160 MHz channels and 1024-QAM,1 MR90X provides dramatically faster wireless connections. The speeds goes up to 6000 Mbps - 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz. 2 MR90X is 2.3× faster than 802.11ac 4×4 dual band router.

Connect 4× More Devices

Streaming or gaming on multiple devices brings more fun without dragging down performance. MR90X supports OFDMA and 4×4 MU-MIMO to power up your WiFi by allowing multiple clients to transmit at the same time. This delivers 4× greater network capacity and efficiency in traffic-dense environments.

Reduce the Interference from Your Neighbors' WiFi

Interference from nearby wireless networks may cause issues with your signal, especially when you live in an apartment or close to your neighbors. MR90X supports BSS Coloring to mark the data frames from different APs. This helps minimize the signal interference from your neighbors to improve transmission efficiency.

Eco-Friendly Power Saving

Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend your devices' battery life.

WiFi Goes Farther with 8 High-Gain Antennas

Eight powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.

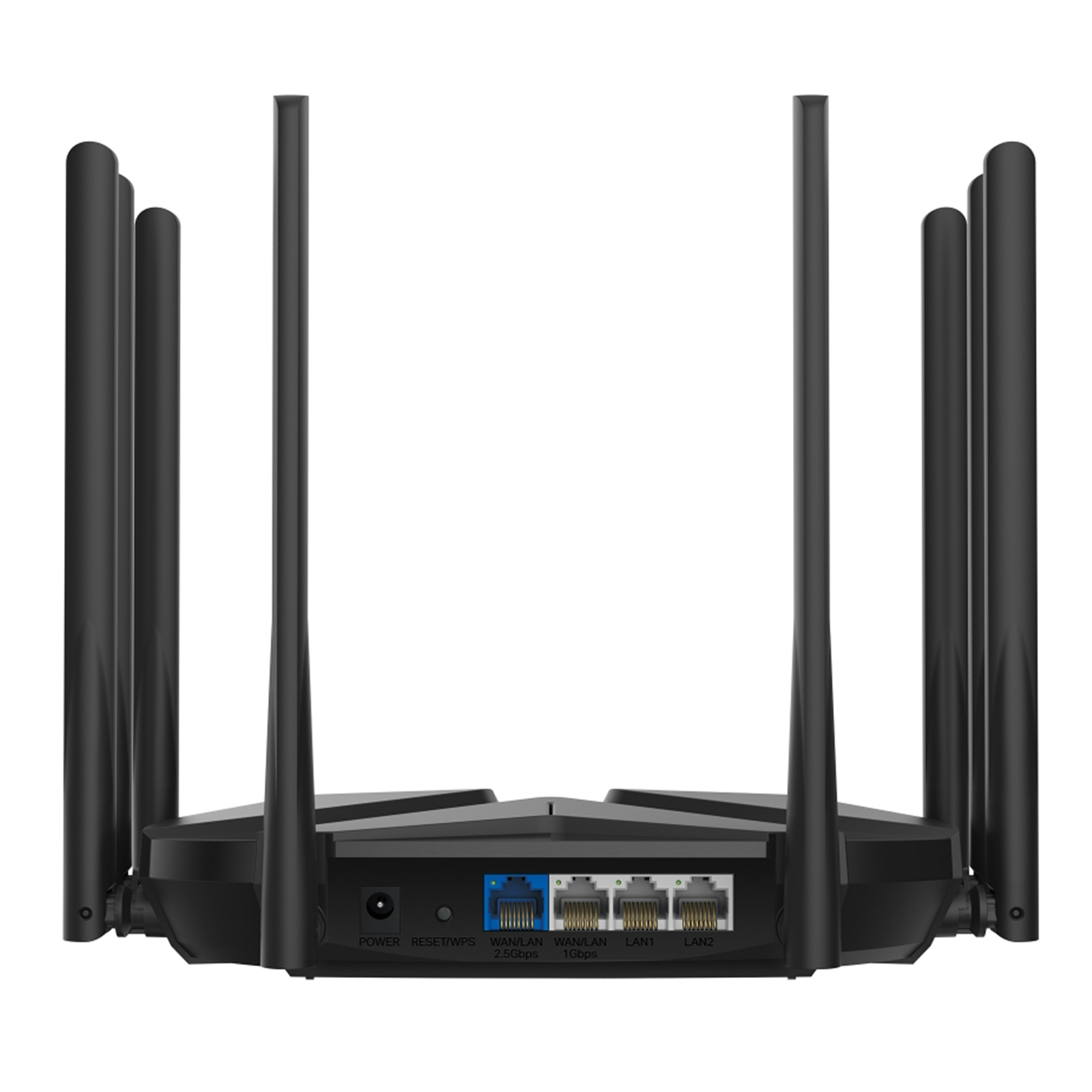

Multi-Gig Speeds, Wired and Wireless

A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network's needs.

Robust Quad-core Processor Minimizes Buffering and Lag

Powered by a robust Quad-core 1.6 GHz processor, MR90X handles massive data throughput, allowing numerous bandwidth-intensive tasks to run smoothly at the same time and enables stable connections for up to 256 devices.

Smart Connect Assigns Devices to the Best Band Automatically

Smart Connect allows each of MR90X's wireless bands to use the same wireless settings. MR90X balances network demand and assigns your devices to the band with the best signal and speed. This keeps your devices always running optimally when you walk around your home.

The Latest WPA3 Protects Your Personal Network

The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.4

- Protect Against Brute-Force Attacks
Delivers robust protection even when you are using a weak password

- Advanced Forward Secrecy
Prevents data from being snooped even if a cracker compromises a session's secret keys

- Unbreakable 128-Bit Encryption
Creates an active defense against security threats and intruders

Easy Setup and Management via the MERCUSYS App

Without needing technical knowledge or reading installation instructions in advance, just follow the on-screen directions with the MERCUSYS app to set up your router in minutes. The MERCUSYS app helps you set and manage your WiFi at home or away through your iOS or Android devices.
