MikroTik RBOMNITIKPG-5HACD WiFi 5 Outdoor Router
5 GigE - 802.3at/af - PoE Input / Output
MikroTik RBOMNITIKPG-5HACD WiFi 5 Outdoor Router
5 GigE - 802.3at/af - PoE Input / Output
- Brand: MikroTik
- MPN: RBOMNITIKPG-5HACD
- Part #: NETMKT1239
- UPC:
View all shipping info
- Brand: MikroTik
- MPN: RBOMNITIKPG-5HACD
- Part #: NETMKT1239
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wireless Routers





MikroTik RBOMNITIKPG-5HACD WiFi 5 Outdoor Router 5 GigE - 802.3at/af - PoE Input / Output
- Brand: MikroTik
- MPN: RBOMNITIKPG-5HACD
- Part #: NETMKT1239

Product URL: https://www.pbtech.com/au/product/NETMKT1239/MikroTik-RBOMNITIKPG-5HACD-WiFi-5-Outdoor-Router-5
Features

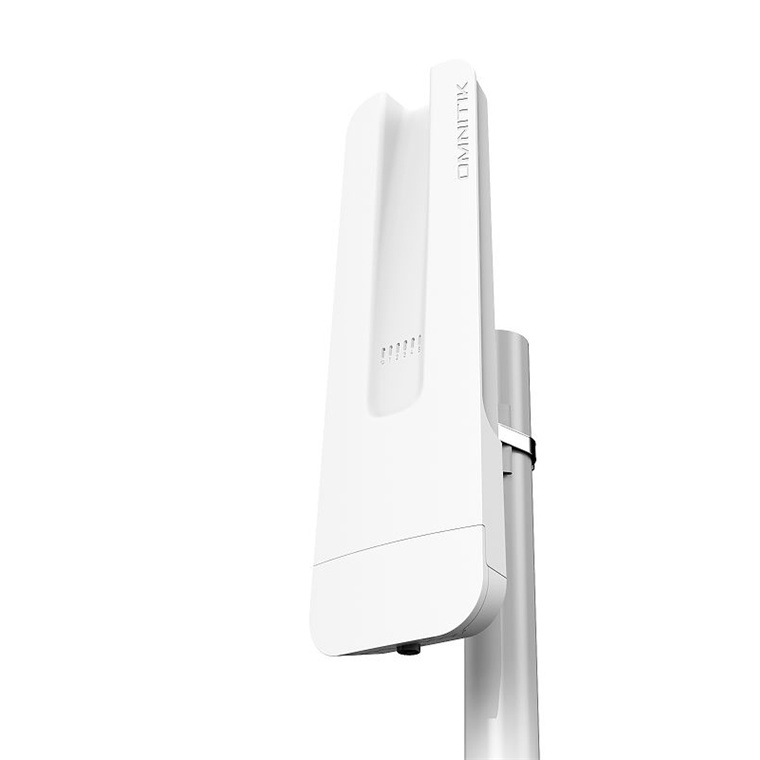

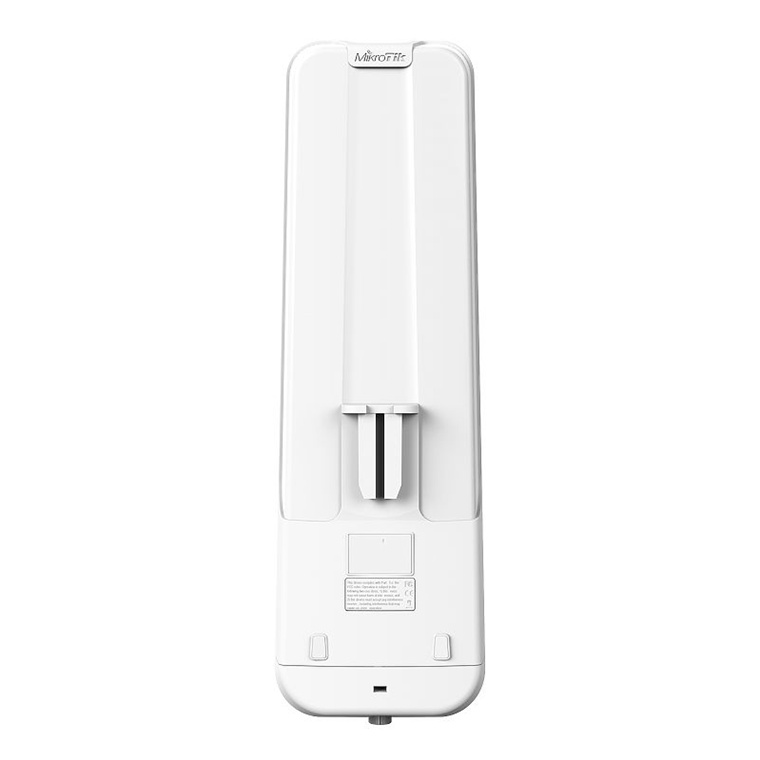

MikroTik Outdoor 802.11ac WiFi Router - (RBOMNITIKPG-5HACD)

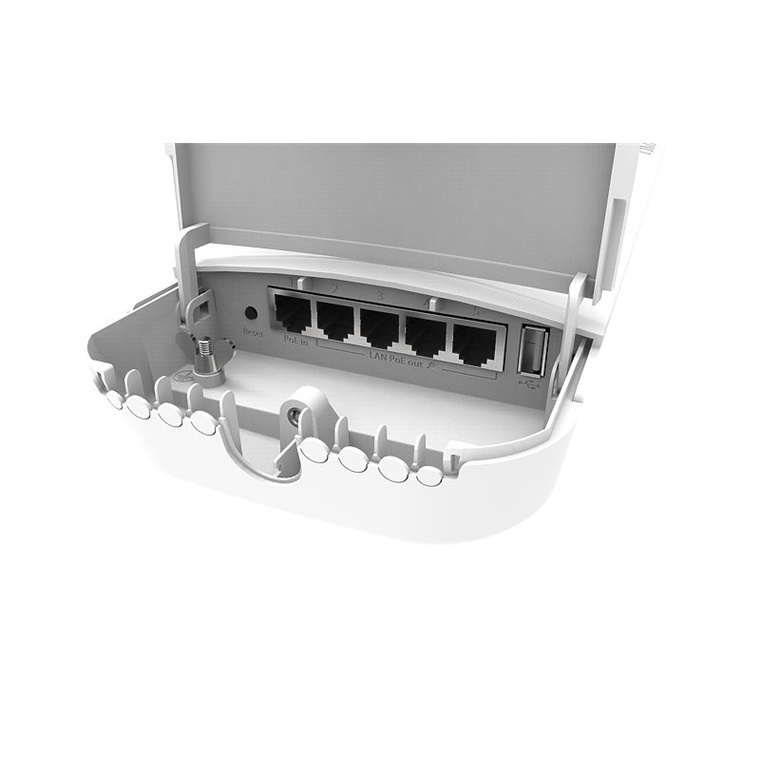

OmniTIK 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It's equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
Specifications
General
Product code
RBOmniTikPG-5HacD
Architecture
MIPSBE
CPU
QCA9557
CPU core count
1
CPU nominal frequency
720 MHz
Dimensions
416 x 129 x 58 mm
Operating System
RouterOS
Size of RAM
128 MB
Storage size
16 MB
Storage type
FLASH
Tested ambient temperature
-40°C to 70°C
Powering
PoE in
Passive PoE
PoE out
802.3af/at
PoE in input Voltage
12-57 V
Number of DC inputs
1 (PoE-IN)
Max out per port output (input > 30 V)
450 mA
Max out per port output (input < 30 V)
1 A
Max total out (A)
2 A
Max power consumption
66 W
Max power consumption without attachments
18 W
Wireless
Wireless 5 GHz number of chains
2
Wireless 5 GHz Max data rate
867 Mbit/s
Wireless 5 GHz standards
802.11a/n/ac
Antenna gain dBi for 5 GHz
7.5
Wireless 5 GHz chip model
QCA9892
Ethernet
10/100/1000 Ethernet ports
5
Peripherals
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1
Other
PCB temperature monitor
Yes
Voltage Monitor
Yes
