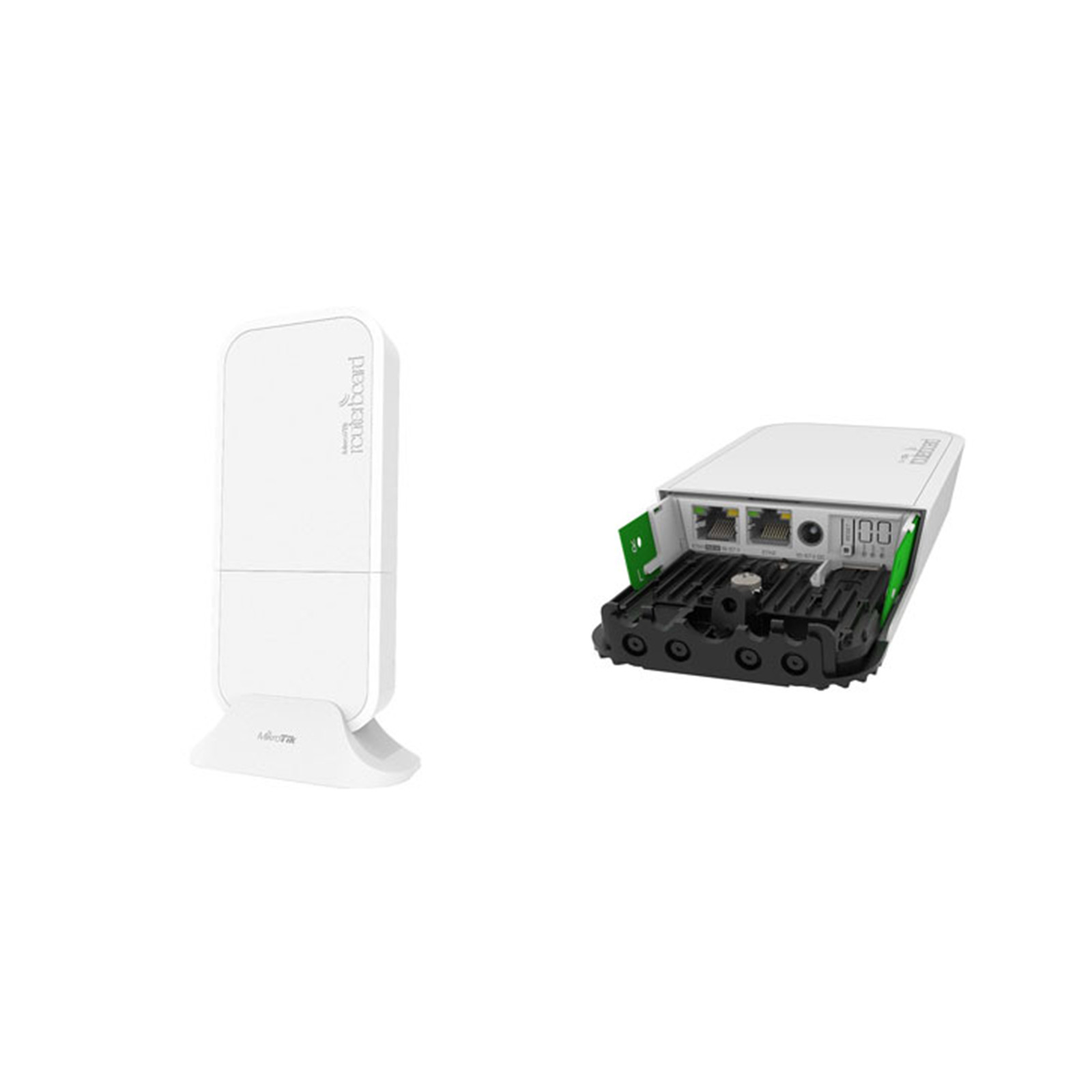

MikroTik RBwAPGR-5HacD2HnD R11e-LTE6 wAP ac LTE kit with R11e-LTE6 modem
- Brand: MikroTik
- MPN: RBwAPGR-5HacD2HnD_R11e-LTE6
- Part #: NETMKT1338

Product URL: https://www.pbtech.com/au/product/NETMKT1338/MikroTik-RBwAPGR-5HacD2HnD-R11e-LTE6-wAP-ac-LTE-ki
Features
The MikroTik wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its new CAT6 LTE modem enables even greater download speed - up to 300 Mbps!
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
wAP ac LTE6 (RBwAPGR-5HacD2HnD&R11e-LTE6) kit has two Gigabit Ethernet ports - you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere - indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.
Features
- CAT6 with carrier aggregation
- Built in Long Range 802.11ac WiFi
Specifications
Product code
RBwAPGR-5HacD2HnD&R11e-LTE6
Architecture
ARM 32bit
CPU
IPQ-4018
CPU core count
4
CPU nominal frequency
716 MHz
License level
4
Size of RAM
128 MB
Storage size
16 MB
Storage type
FLASH
Tested ambient temperature
-30°C to 60°C
PoE in
802.3af/at
PoE in input Voltage
18-57 V
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
10-57 V
Max power consumption
16 W
Max power consumption without attachments
10 W
10/100/1000 Ethernet ports
2
Wireless 2.4 and 5GHz standards
802.11a/b/g/n/ac, Wi-Fi 5
Number of SIM slots
1 Modem (Micro SIM)
MiniPCI-e slots
1
PCB temperature monitor
Yes
Voltage Monitor
Yes
2G Category
Class12
3G Category
R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
LTE Category
6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands
38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
2G bands
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G bands
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
Certification
CE/RED, FCC, IC, EAC, ROHS
Dimensions
185 x 85 x 30 mm
