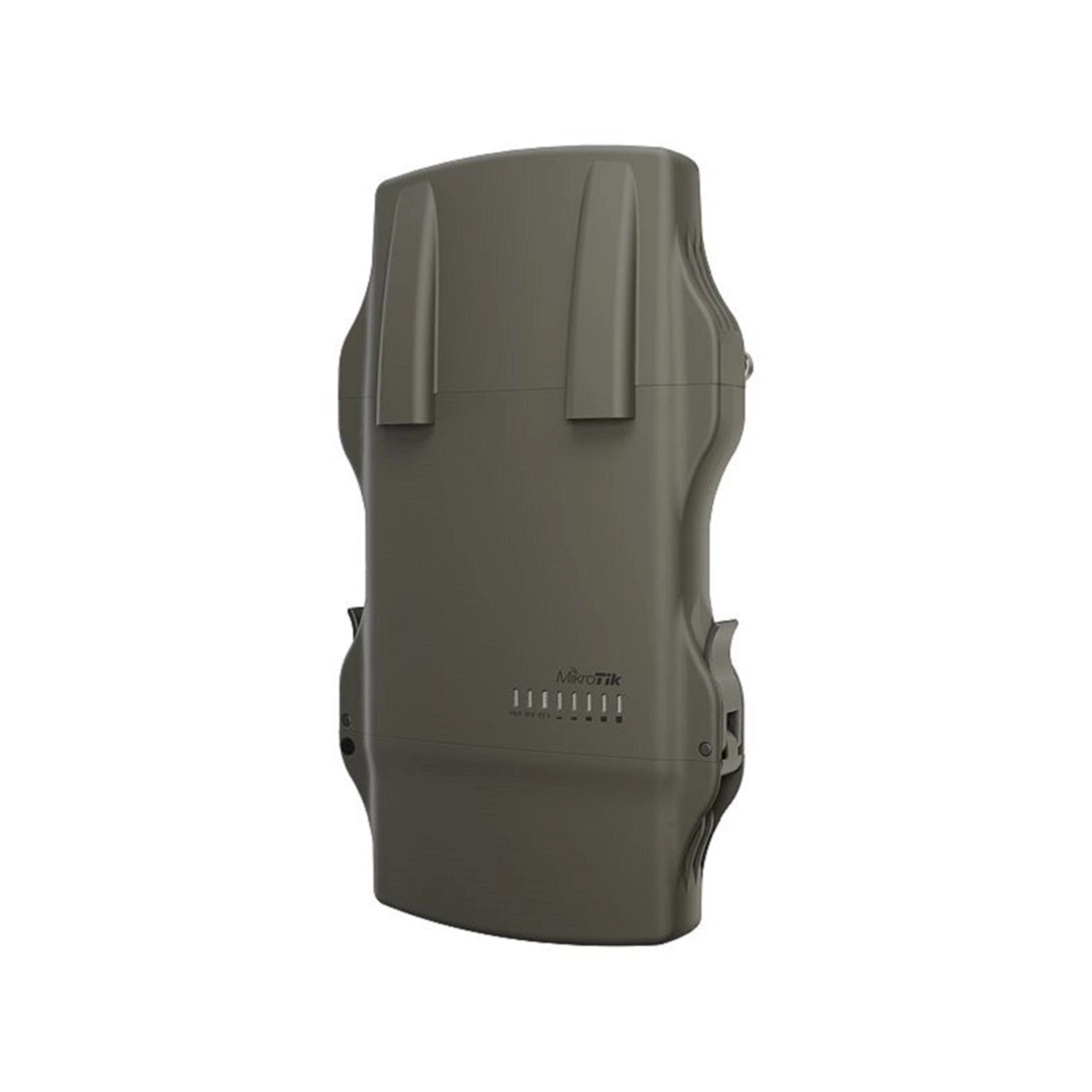

MikroTik RBD23UGS-5HPacD2HnD-NM NetMetal ac Dual Band 802.11ac Outdoor Access Point
MikroTik RBD23UGS-5HPacD2HnD-NM NetMetal ac Dual Band 802.11ac Outdoor Access Point
- Brand: MikroTik
- MPN: RBD23UGS-5HPacD2HnD-NM
- Part #: NETMKT1355
- UPC:
View all shipping info
- Brand: MikroTik
- MPN: RBD23UGS-5HPacD2HnD-NM
- Part #: NETMKT1355
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





MikroTik RBD23UGS-5HPacD2HnD-NM NetMetal ac Dual Band 802.11ac Outdoor Access Point
- Brand: MikroTik
- MPN: RBD23UGS-5HPacD2HnD-NM
- Part #: NETMKT1355

Product URL: https://www.pbtech.com/au/product/NETMKT1355/MikroTik-RBD23UGS-5HPacD2HnD-NM-NetMetal-ac-Dual-B
Features
The Mikrotik NetMetal ac² is a Dual Band 802.11ac Outdoor Access Point.
More power and advanced features, with the same design philosophy as its predecessors - the new NetMetal ac² AP is sturdy, reliable, easy to use and extremely capable. This is the best way to add IPsec hardware acceleration to your backhaul link! We have added an out-of-the-box 2.4/5 GHz dual-concurrent (2.4GHz and 5GHz can be used at the same time) band support - no need for additional tinkering!
NetMetal ac² can handle massive loads, as it features an improved 4-core CPU and 256 MB RAM. There is a miniPCIe slot for an LTE or other wireless modules and an SFP port for fiber. The NetMetal ac² can be a very adaptable addition for all kinds of setups.
Two RP-SMA connectors allow adding an antenna of your choice. If necessary, you can adapt the NetMetal ac² for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit (not included; available for ordering seperately).
The enclosure has an IP rating of IP54 with protection against splashing from any angle, but it can still be opened and closed with one hand. Very handy in rough environments!
Features
- Connectorized radio with dual RP-SMA Female connectors
- Dual Band (2.4GHz & 5GHz) Integrated radios
- Improved 4-core 716MHz CPU
- Outdoor IP54 rated
- (1) Gigabit ethernet port and (1) SFP port
- Flexible power options with support for DC and/or 802.3af/at POE input
Specifications
Product code
RBD23UGS-5HPacD2HnD-NM
Architecture
ARM 32 bit
CPU
IPQ-4019
CPU core count
4
CPU nominal frequency
716.8 MHz
Dimensions
143 x 247 x 48 mm
License level
4
Operating system
RouterOS
Size of RAM
256 MB
Storage size
16 MB
Storage type
SPI flash
Tested ambient temperature
-40°C to +70°C
Number of DC inputs
2 (DC jack, PoE-IN)
PoE-in
802.3 af/at
Poe-in input voltage
24 - 57 V
DC jack input voltage
12 - 57 V
Max power consumption
28 W
Max power consumption without attachments
12 W
10/100/1000 Ethernet ports
1
SFP ports
1
Number of SIM slots
1 Modem (Micro SIM)
MiniPCI-e slots
1
Number of USB ports
1
PCB temperature monitor
Yes
Voltage Monitor
Yes
