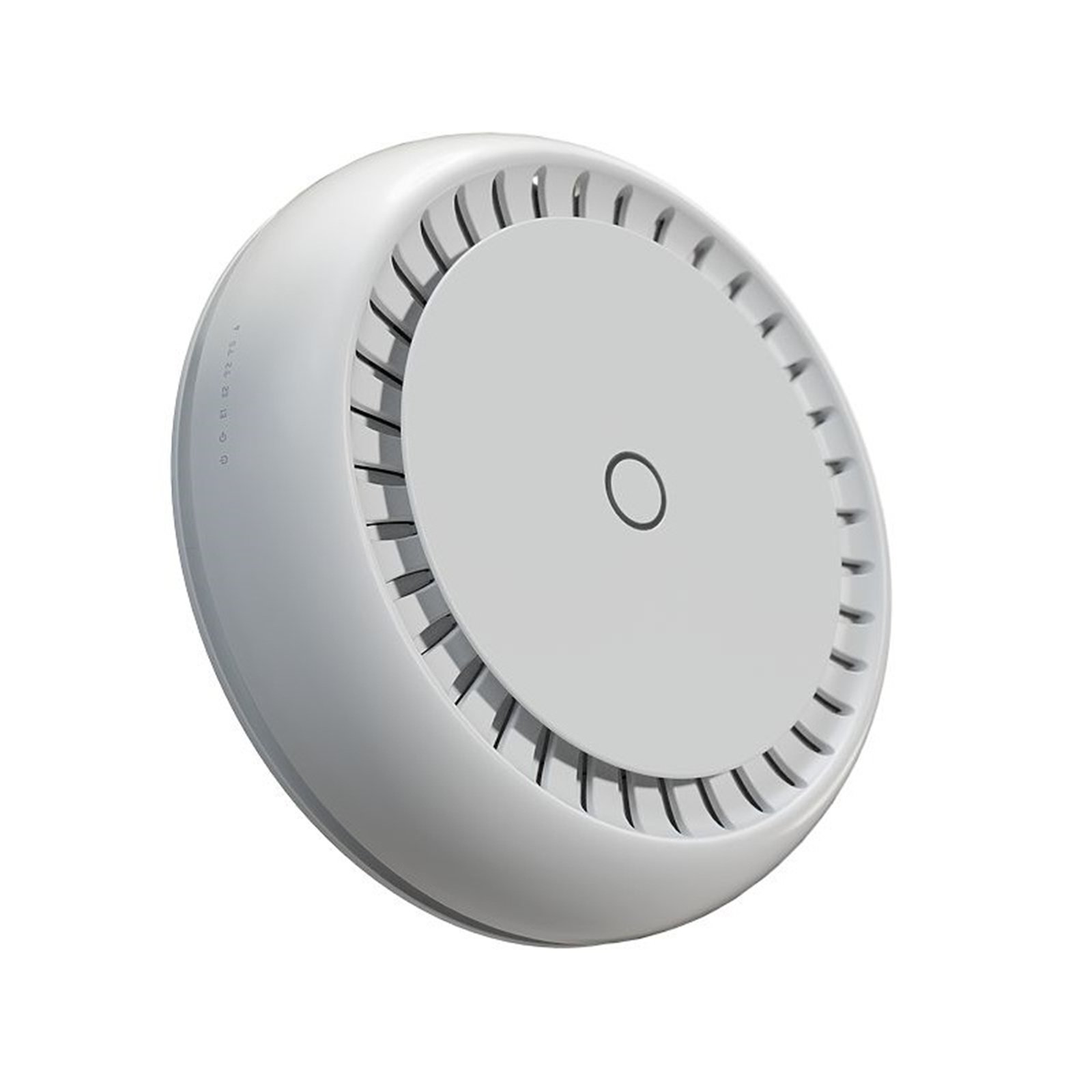

MikroTik RBcAPGi-5acD2nD-XL cAP XL ac Long Range Dual Band 802.11ac Ceiling Mount Access Point

PB Tech price

$ 172 .92

+GST

$ 190 .21

inc GST

MikroTik RBcAPGi-5acD2nD-XL cAP XL ac Long Range Dual Band 802.11ac Ceiling Mount Access Point

Brand: MikroTik
MPN: RBcAPGi-5acD2nD-XL
Part #: NETMKT1393
UPC:

PB Tech price

$ 190 .21

inc GST

+GST inc GST

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 16 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: MikroTik
MPN: RBcAPGi-5acD2nD-XL
Part #: NETMKT1393
UPC:

Be the first to review this product

Ethernet Ports

USB Ports

WiFi Bands

Wireless Technology

WiFi 5 (802.11ac)

Wireless Transmission Speed

Pack Size

1-Pack

View full specs

Returns & Warranty Bulk Quote Print Page

Features

MIKROTIK CAP XL AC LONG RANGE DUAL BAND 802.11AC CEILING MOUNT ACCESS POINT

MikroTik cAP XL ac Long Range Dual Band 802.11ac Ceiling Mount Access Point. Need a nice-looking high power access point that won't get in your way? Or perhaps you're managing the network in a crowded place and don't want everyone to have physical access to the device? Either way - ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won't even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.

The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!

The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don't have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.

https://youtu.be/W7aAOpmC1bo

Features

- Large high-gain 6dBi antenna
- Higher sensitivity to -100 dBm
- Built-in reflector for longer range
- 360 degree coverage

Specifications

Architecture

ARM 32bit

CPU

IPQ-4018

CPU core count

CPU nominal frequency

716 MHz

RouterOS license

Operating System

RouterOS

Size of RAM

128 MB

Storage size

16 MB

Storage type

FLASH

MTBF

Approximately 100'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

Wireless 2.4 GHz number of chains

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

Wireless 2.4 GHz chip model

IPQ-4018

Wireless 2.4 GHz generation

Wi-Fi 4

Wireless 5 GHz number of chains

Wireless 5 GHz standards

802.11a/n/ac

Antenna gain dBi for 5 GHz

5.5

Wireless 5 GHz chip model

IPQ-4018

Wireless 5 GHz generation

Wi-Fi 5

AC speed

AC1200

10/100/1000 Ethernet ports

Number of 1G Ethernet ports with PoE-out

Number of DC inputs

1 (PoE-IN)

Max power consumption

24 W

Max power consumption without attachments

11 W

FAN count

Passive

PoE in

802.3af/at

PoE in input Voltage

18-57 V

PoE-out ports

Ether2

PoE out

Passive PoE up to 57V

Max out per port output (input 18-30 V)

500 mA

Max out per port output (input 30-57 V)

330 mA

Max total out (A)

500 mA

Certification

CE, FCC, IC, EAC, ROHS

Mode button

Yes

Manufacturer Part No:

RBcAPGi-5acD2nD-XL

Brand:

MikroTik

Product Type:

UPC

Product Family:

Shipping Weight:

0.1 kg

PB Part No:

NETMKT1393

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
