MikroTik RBwAPR-2nD&R11e-LR2 WAP Lora2 Outdoor LoRaWAN IoT Gateway with Built in Wi-Fi
MikroTik RBwAPR-2nD&R11e-LR2 WAP Lora2 Outdoor LoRaWAN IoT Gateway with Built in Wi-Fi
- Brand: MikroTik
- MPN: RBwAPR-2nD&R11e-LR2
- Part #: NETMKT1450
- UPC:
View all shipping info
- Brand: MikroTik
- MPN: RBwAPR-2nD&R11e-LR2
- Part #: NETMKT1450
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





MikroTik RBwAPR-2nD&R11e-LR2 WAP Lora2 Outdoor LoRaWAN IoT Gateway with Built in Wi-Fi
- Brand: MikroTik
- MPN: RBwAPR-2nD&R11e-LR2
- Part #: NETMKT1450

Product URL: https://www.pbtech.com/au/product/NETMKT1450/MikroTik-RBwAPR-2nDR11e-LR2-WAP-Lora2-Outdoor-LoRa
Features

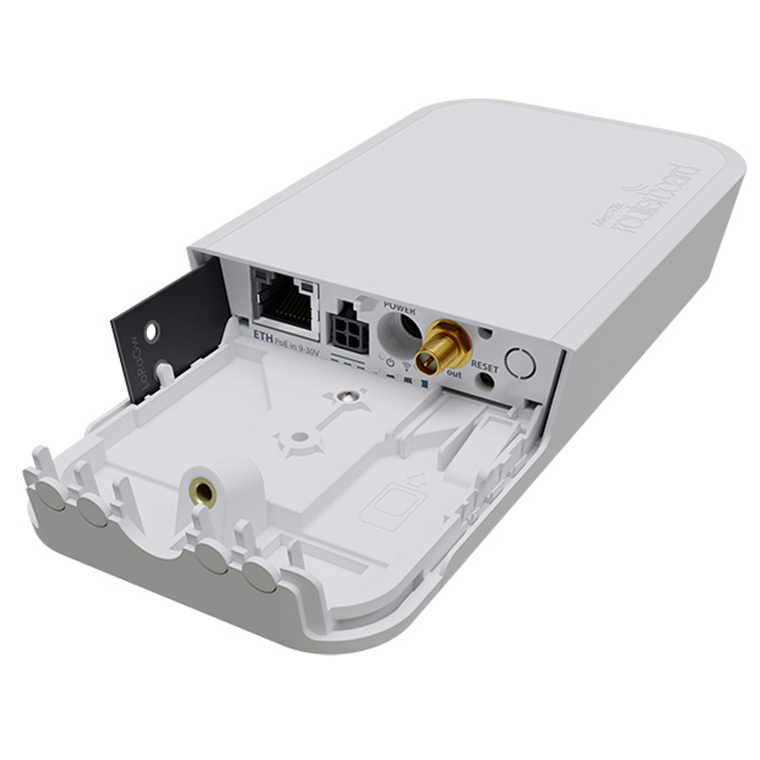

MikroTik wAP Lora2 (RBwAPR-2nD&R11e-LR2) Outdoor LoRaWAN IoT Gateway. Our newest out-of-the-box solution for LoRa® technology. Works with the 2.4 GHz frequency for LoRa®. Doesn't interfere with the 2.4 GHz WLAN signal!
Like the previous wAP LR kits, it contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port with PoE-in that could be used as a backend.
Here's the difference: this device works with the 2.4 GHz frequency for LoRa® as well. That means significantly higher bandwidth, higher data rate, and less air time. And because of the Chirp modulation technology, it doesn't interfere with the 2.4 GHz WLAN signal! A perfect solution for industrial setups with a high density of sensors.
There is a built-in 2 dBi WLAN / 4.7 dBi LoRa® antenna, but you can add an external antenna for extra coverage. We suggest using the TOF-2400-8V-4 Omni antenna for best results.
We've decided to keep the classic wAP form-factor that has been tested in many other MikroTik products - it can deliver excellent and stable performance in almost any weather conditions. Functional and non-intrusive design, astonishing durability, and great value remain at the core of this design.
The whole IoT community is exploring the 2.4 GHz LoRa® possibilities - join them and be among the first ones to benefit from the increased data rates.
Note: The device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem.
Specifications
Brand
MikroTik
MPN
RBwAPR-2nD&R11e-LR2
CPU
QCA9531 650 MHz
Size of RAM
64 MB
Number of 100M Ethernet ports
1
MiniPCIe slots
1
Wireless
Built-in 2.4 GHz 802.11b/g/n, dual-chain
Antenna gain
2 dBi (WiFi) 4.7 dBi (LoRa®)
Antenna beam width
360°
Supported input voltage
9 V - 30 V (PoE-in)
Dimensions
185 x 85 x 30 mm
Operating temperature
-40°C to +60°C
Operating system
RouterOS, License level 4
Max power consumption
8 W
LoRa band
2.4 GHz
Tx chain number
1
Rx chain number
4
TX/RX channels
2403 MHz, 2425 MHz, 2450 MHz, 2479 MHz
RF Output power
10 dBm
