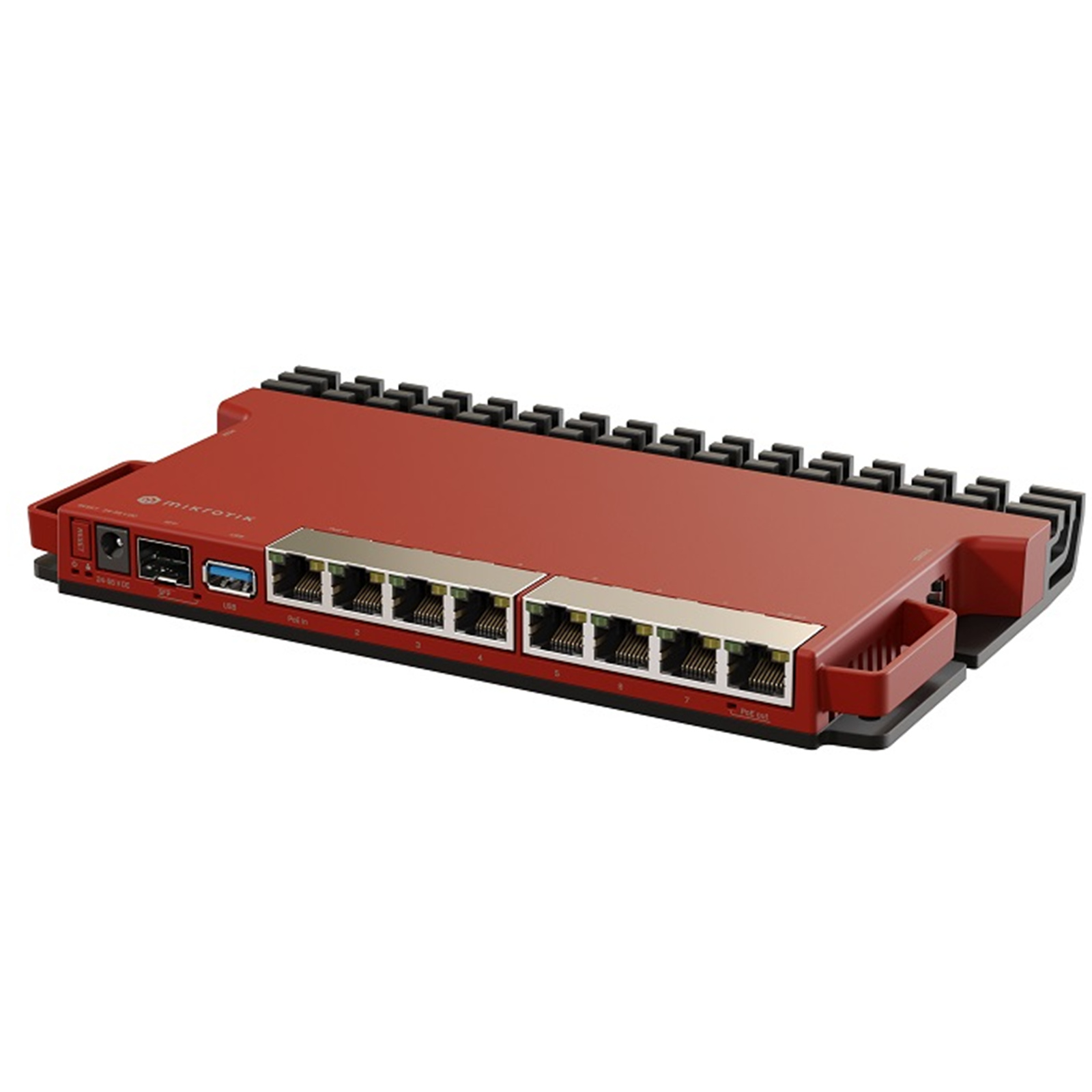

MikroTik L009UiGS-RM Rack Mount Gigabit Router with SFP Port

There are three main reasons to choose the MikroTik L009: better performance, more features, and some interesting quality-of-life improvements. Let's start with the raw power and performance improvements.

The MikroTik L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.

The MikroTik L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters.

All the ports are now Gigabit Ethernet ports. There's PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there's PoE-Out* on the last port - for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds - the 2.5G capability makes a sysadmin's life so much easier- there's a console port for quick direct-access configuration!

At the heart of it all we have a speedy Marvell Peridot Switchchip which offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1. The first port has its own Gigabit full duplex line to the CPU. That means - countless configurations with no bottlenecks!

The new enclosure is a spectacular innovation on its own. It's the same form-factor you might have seen with our highly sought-after RB5009 devices. It has several extremely useful properties. First of all, the case acts as a massive heat-sink, protecting your setups from overheating. But here's the fun part: it comes with everything you need to fit up to four of these routers in a single 1U rackmount space.

RB2011 will always remain a networking legend, but it's time to take it up a notch. And the L009 product line is the perfect upgrade that will help you save time, money, and server room space like never before!

- Innovative enclosure that acts as a massive heat-sink
- Modern dual-core arm cpu
- 8x Gigabit ethernet ports
- SFP cage with 2.5g support
- USB 3.0
- Console port
- 512 MB ram
- POE-In & POE-Out
- Container support

Specifications

MPN

L009UiGS-RM

CPU

Dual-Core IPQ-5018 800 MHz

CPU architecture

ARM 64bit (RouterOS 32 bit)

Size of RAM

512 MB

RAM type

DDR3L

Storage

128 MB, NAND

Number of 1G Ethernet ports

Number of 1G SFP ports

1 (2.5G supported)

USB port

1 (3.0 type A)

Serial console port

RJ45

Switch chip model

88E6190

Dimensions

220 x 125 x 22 mm

Operating system

RouterOS v7, License level 5

Operating temperature

-40°C to +70°C

PoE-in

802.3af

PoE-Out (If powered via DC Jack)

Passive PoE

Max out per port output (DC input 24-30 V)

1 A

Max out per port output (DC input 30-56 V)

450 mA

Number of DC inputs

2 (PoE-in, DC jack)

PoE-in input Voltage

24-56 V

DC jack input Voltage

24-56 V

Max USB current

1.5 A

Power adapter nominal voltage

24 V

Power adapter nominal current

1.5 A

Max power consumption without attachments

8 W

Max power consumption

37 W
