MikroTik L11UG-5HaxD-NB NetBox 5 ax WiFi 6 802.11axAP/CPE/Point-to-pointOutdoorRadioL22UGS-5HaxD2HaxD-15S
MikroTik L11UG-5HaxD-NB NetBox 5 ax WiFi 6 802.11axAP/CPE/Point-to-pointOutdoorRadioL22UGS-5HaxD2HaxD-15S
- Brand: MikroTik
- MPN: L11UG-5HaxD-NB
- Part #: NETMKT1484
- UPC:
View all shipping info
- Brand: MikroTik
- MPN: L11UG-5HaxD-NB
- Part #: NETMKT1484
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





MikroTik L11UG-5HaxD-NB NetBox 5 ax WiFi 6 802.11axAP/CPE/Point-to-pointOutdoorRadioL22UGS-5HaxD2HaxD-15S
- Brand: MikroTik
- MPN: L11UG-5HaxD-NB
- Part #: NETMKT1484

Product URL: https://www.pbtech.com/au/product/NETMKT1484/MikroTik-L11UG-5HaxD-NB-NetBox-5-ax-WiFi-6-80211ax
Features

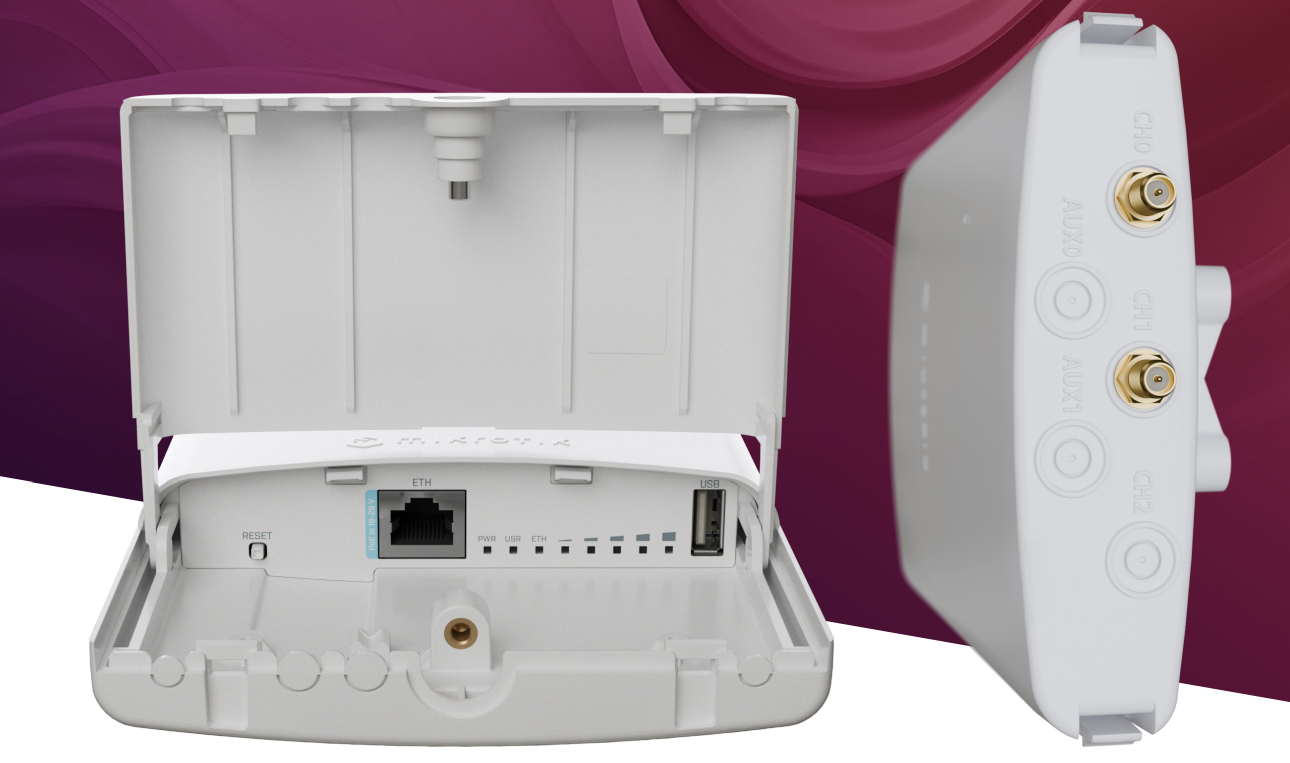

MikroTik NetBox 5 ax Wi-Fi 6 802.11ax AP/CPE/Point-to-point Outdoor Radio L22UGS-5HaxD2HaxD-15S. NetBox 5 ax is a powerful dual-chain outdoor WiFi6 device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy SMA connectors. That means you can add a HGO-antenna-OUT and you've got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!
This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.
The case has been designed to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you'll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.
Specifications
MPN
L11UG-5HaxD-NB
Wireless 5 GHz Max data rate
2400 Mbit/s
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax
10/100/1000 Ethernet ports
1
Number of USB ports
1
Architecture
AR
CPU
IPQ-5010
CPU core count
2
CPU nominal frequency
800 MHz
RouterOS license
4
Operating System
RouterOS v7
Size of RAM
256 MB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Number of DC inputs
1 (PoE-IN)
Max power consumption
15 W
Max power consumption without attachments
6 W
Cooling type
Passive
PoE in
Passive PoE
PoE in input Voltage
18-28 V
PCB temperature monitor
Yes
Voltage Monitor
Yes
Beeper
Yes
Certification
CE, FCC, IC, EAC, ROHS
IP
54
