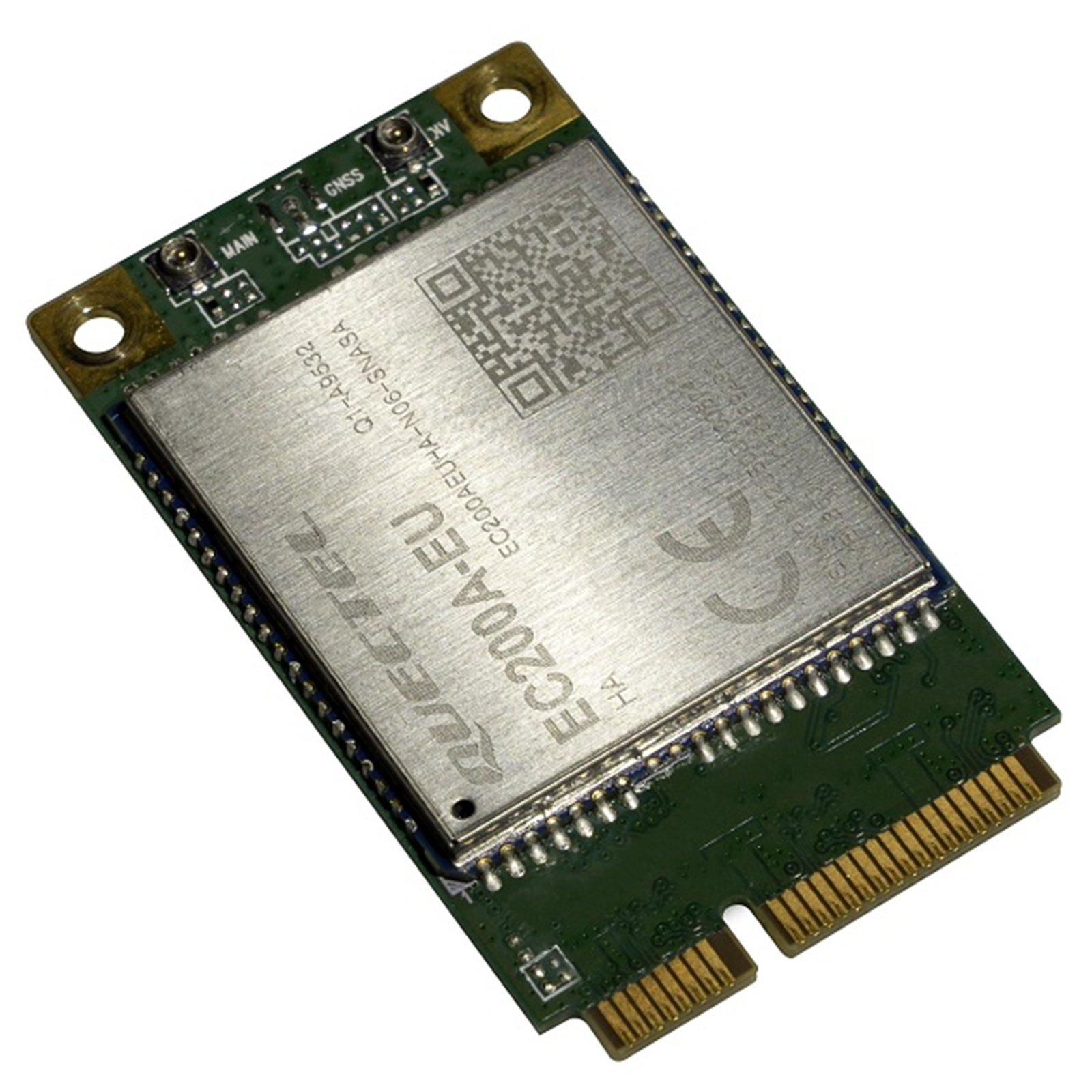

MikroTik R11eL-EC200A-EU R11eL-EC200A-EU 2G/3G/4G/LTE Cat-4 MiniPCIe Card with B28 Support
- Brand: MikroTik
- MPN: R11eL-EC200A-EU
- Part #: NETMKT1491

Product URL: https://www.pbtech.com/au/product/NETMKT1491/MikroTik-R11eL-EC200A-EU-R11eL-EC200A-EU-2G3G4GLTE
Features
The MikroTik R11eL-EC200A-EU is an extra cost-effective upgrade of MikroTik's previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now!
This mini-PCIe modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.
- LTE Category 4 Modem (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
- LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
- 3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
- 2G bands 3 (1800MHz) / 8 (900MHz)
Specifications
Manufacturer
MikroTik
MPN
R11eL-EC200A-EU
Product Type
2G/3G/4G/LTE Cat-4 MiniPCIe Card
LTE modem
EC200A-EU
TAC
86314105
LTE Category
4 (150Mbps Downlink, 50Mbps Uplink
Supported target regions
EMEA/APAC/Australia
LTE FDD bands
1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
LTE TDD bands
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
3G Category
R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands
1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
2G Category
Class12
2G bands
3 (1800MHz) / 8 (900MHz)
Max power consumption
3 W
Operating temperature
-35°C to +70°C
Connector
2x u.FL
Form Factor
miniPCIe
