MikroTik RouterBOARD RB1100AHx4 Dude Edition Router AL21400 Cortex A15 CPU - 1GB RAM - 13x Gbit LAN - 60GB M.2 Drive
- Brand: MikroTik
- MPN: RB1100AHx4
- Part #: NETMKT690145

Product URL: https://www.pbtech.com/au/product/NETMKT690145/MikroTik-RouterBOARD-RB1100AHx4-Dude-Edition-Route
Features
New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

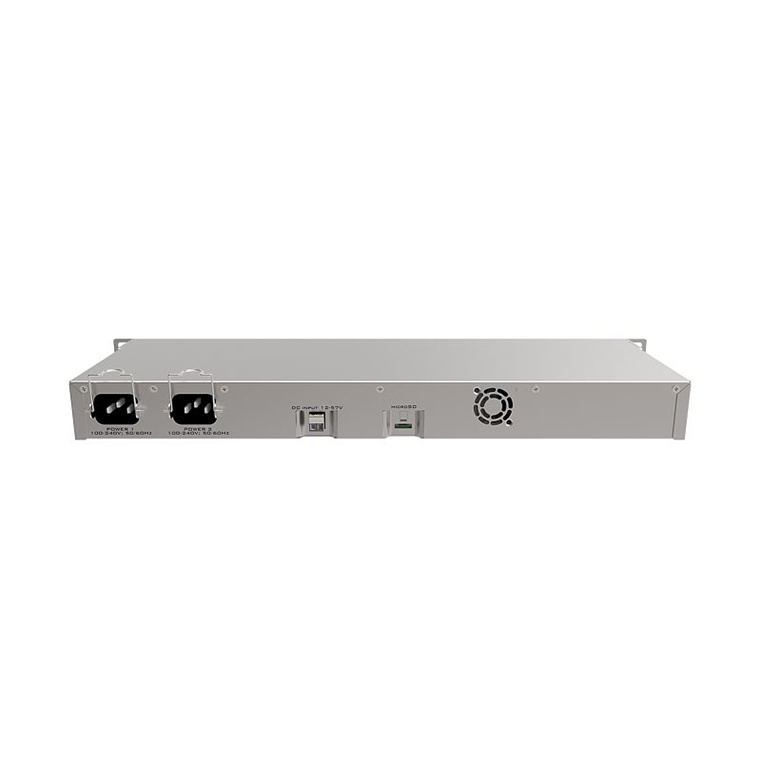

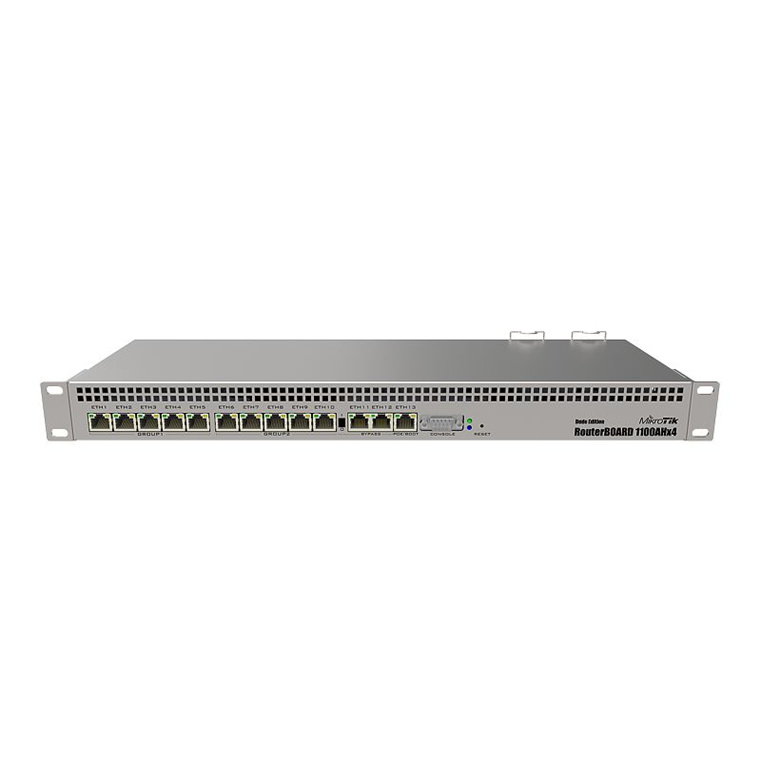

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Specifications
RB1100Dx4
10/100/1000 Ethernet ports
13
AC input range
110-240 V
CPU
AL21400-1400-A0-E-1AN-8-C
CPU Threads count
4
CPU core count
4
CPU nominal frequency
1.4 GHz
Current Monitor
Yes
Dimensions
444 x 148 x 47 mm
Extended storage
60GB M.2 SSD included
License level
6
M.2 slots
2
Max Power consumption
25W
Number of AC inputs
2
Operating System
RouterOS
PCB temperature monitor
Yes
PoE in
802.3af/at
PoE-IN
12-57 V
Power Jack
2
SATA ports
2x SATA3
Serial port
RS232
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
Voltage Monitor
Yes
