PoE World PassivePOE-Extender Passive PoE 10/100 Mbps Ethernet Extender Repeater
- Brand: PoE World
- MPN: PassivePOE-Extender
- Part #: NETPEW1018

Product URL: https://www.pbtech.com/au/product/NETPEW1018/PoE-World-PassivePOE-Extender-Passive-PoE-10100-Mb
Features

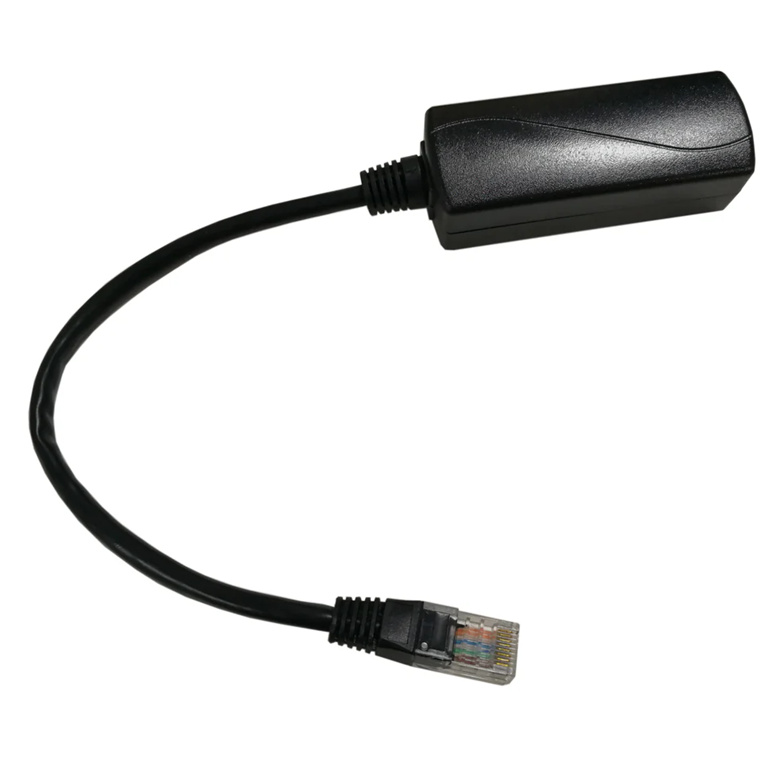

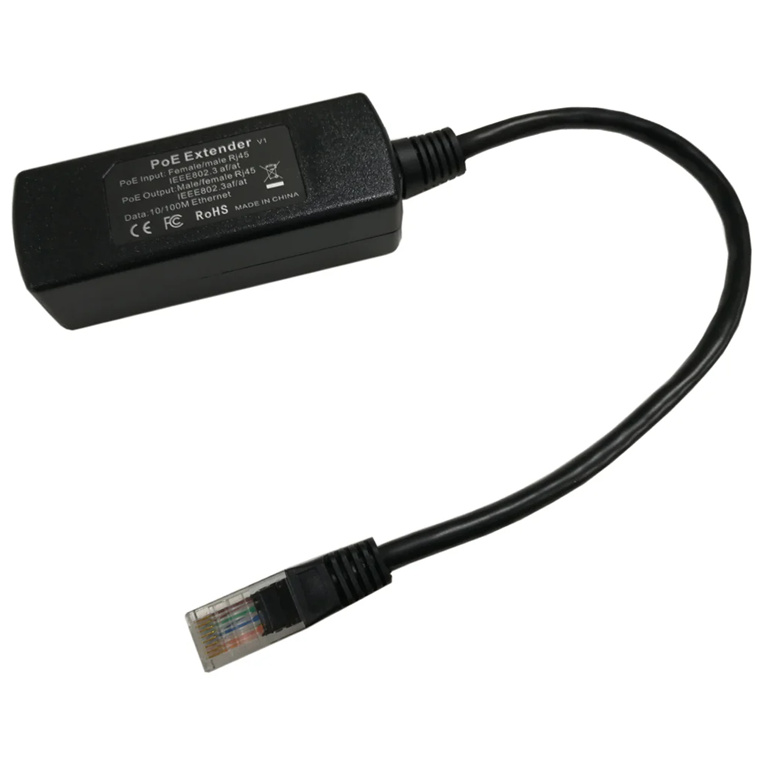

This device extends PoE power and data for 100 meters past the standard. It allows power to be carried on 10/100 network cables and have that power and data extended another 100 meters. Compatible with Passive PoE switches or injectors with any CAT5e, CAT6 or CAT7 Ethernet network cable.
Intended for use with passive injectors or switches - this pass thru PoE solution uses some of the power to rebuild each data packet for error free retransmission another 100 meters. It is a compact and cost effective power solution. The PoE source supplies between 24 and 56 volts DC at the source location. 13 watts in delivers 12.5 watts out. Repeat each 100 mtr as needed. 24v systems might need our 29 volt injector to operate beyond 200 meters if the load is more than 6watts. The use of CCA Ethernet cable is not recommended.
The PoE source can send either voltage polarity, and only 2 pairs are required. The device is symmetrical - either side can be used as the input or output.
- Supplies 15 - 56 volts DC at the source location
- Can send either voltage polarity for power input and output pins (Mode A or B)
- Either side can be used as input or output
- 10/100 data speed
- LED status on female RJ45
- 500 mw internal power use
Specifications
Brand
PoE World
Power and data source
RJ 45 PoE in - male or female
Data speed
10/100 Mbps
Power and data output
RJ45 PoE out - male or female
Input voltage max
Up to 57 volts
PoE Passthru
802.3af or 802.3at
Internal power use
500 mw
Operating temperature
0°C - 50°C
Ethernet switch
IP175G as a 2 port, 802.3u fast low power switch
Vlan support
Transparent
Dimensions
95 x 24 x 31 mm plus 24 cm Ethernet cable
