Features

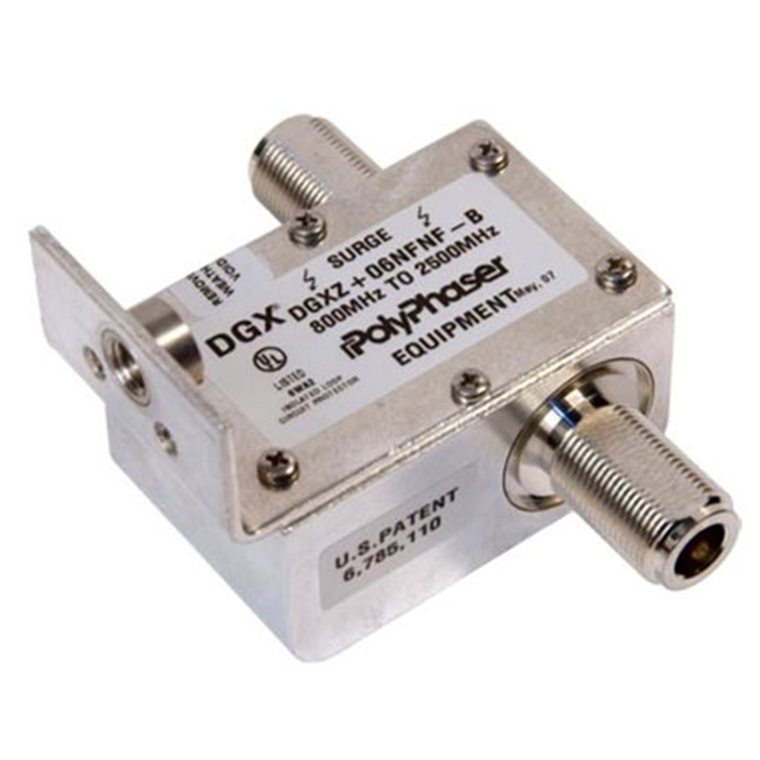

PolypPhaser DGXZ+06NFNF-A Type N F/F Coaxial RF Surge Protector, 800MHz - 2.5GHz, 300W, IP67, 6 V Max., 175uJ, 20kA, Hybrid, Bracket Down, Hole Mount

PolyPhaser coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) DGXZ+06NFNF-A is in-stock and will ship same-day as purchased. This radio frequency surge protector / lightning surge arrestor helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes. Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 800 MHz to 2.5 GHz while suppressing DC surge.

While this radio frequency lightning surge suppressor operates in a range of frequencies from 800MHz to 2.5GHz, it is supporting a power handling maximum of 300 Watts. RF surge protector DGXZ+06NFNF-A from PolyPhaser incorporates hybrid technology to provide protection for equipment at up to the max. power of 300W. Our coax surge protection device for RF is manufactured with a N type connection in and a type N out.

DGXZ+06NFNF-A is constructed with a female gender for the input and female for the output. This F/F type N to type N surge protecting component for RF has a let-through energy of 175uJ. The coaxial lightning surge arrestor is IP rated, it has an IP67 rating. The N type coaxial lightning surge protector is REACH and RoHS compliant.

- Frequency ranges from DC to 2.7 GHz
- Patented hybrid surge protection
- Repeatable RF performance after surge
- Flexible bulkhead and bracket mounting options
- Weatherproof when installed
- 7/16" DIN, N-Type and TNC

Specifications

Manufacturer Product Code

DGXZ+06NFNF-A

Connectors

N-Female to N-Female

Insertion Loss

=0.1dB

Impedance

50 Ohm

Minimum Frequency

800 MHz

Maximum Frequency

2.5 GHz

VSWR

=1.1 or Better Over Frequency Range

Return Loss

<26dB

Max Operational Current

Typical Surge Withstand

20kA 8/20µs Waveform

Maximum Input Power

300 Watts

Direction

Directional

Throughput Energy

175 uJ

Manufacturer Part No:

DGXZ06NFNF-A

Brand:

PolyPhaser

Product Type:

UPC

Product Family:

Shipping Weight:

1.8 kg

PB Part No:

NETPLP0001

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
