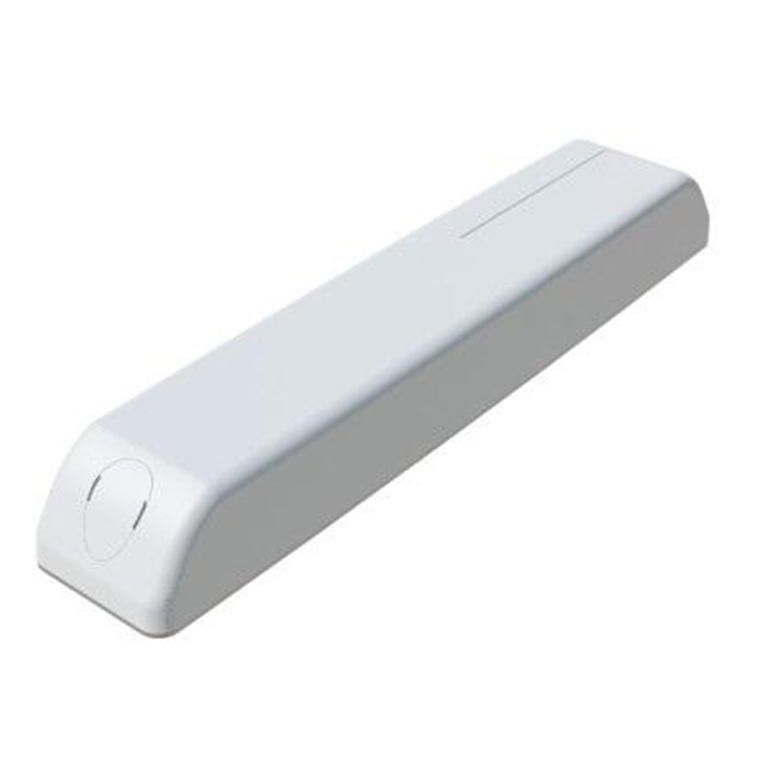

Panorama LPW-BC3G-26-2SP 4G LTE Low Profile Wall Mount Smart Antenna 2m cable SMA
Panorama LPW-BC3G-26-2SP 4G LTE Low Profile Wall Mount Smart Antenna 2m cable SMA
- Brand: Panorama
- MPN: LPW-BC3G-26-2SP
- Part #: NETPNM10003
- UPC:
View all shipping info
- Brand: Panorama
- MPN: LPW-BC3G-26-2SP
- Part #: NETPNM10003
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Panorama LPW-BC3G-26-2SP 4G LTE Low Profile Wall Mount Smart Antenna 2m cable SMA
- Brand: Panorama
- MPN: LPW-BC3G-26-2SP
- Part #: NETPNM10003

Product URL: https://www.pbtech.com/au/product/NETPNM10003/Panorama-LPW-BC3G-26-2SP-4G-LTE-Low-Profile-Wall-M
Features
4G LTE Low Profile Wall Mount Antenna w/ 2m cable SMA
Compatible with a wide range of cellular routers, including Cradlepoint IBR200 / IBR600 / IBR900 series.
The Panorama LPW range of antennas are designed to decrease the lifetime cost of M2M installations by offering a robust, effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.
This antenna offers ground-plane independent omni-directional performance across global cellular and LTE bands making it a versatile solution for any number of applications. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in problematic coverage areas.
It can be installed using the supplied automotive grade adhesive pad or via the integrated screw mounting bosses. If the antenna is panel mounted the cable can be routed through a hole in the adhesive pad to run invisibly into the panel behind.
*Performance may change based on mounting surface.
Specifications
Electrical Data
LTE Frequencies
698-960/1710-2700MHz
Typical VSWR
<2:1
Peak Gain (dBi)
2
Max Input Power (W)
20
Pattern
Omni-directional
Ground Plane Independent
Yes
Mechanical Data
Available Colours
Grey
Length (mm)
165
Width (mm)
32
Height (mm)
19.6
Operating Temperature
-30 / + 70°C
Mounting Data
Mounting Type
Wall Mount; Panel Mount; Adhesive Mount
Mounting Method
Screw Mount; Adhesive Pad
