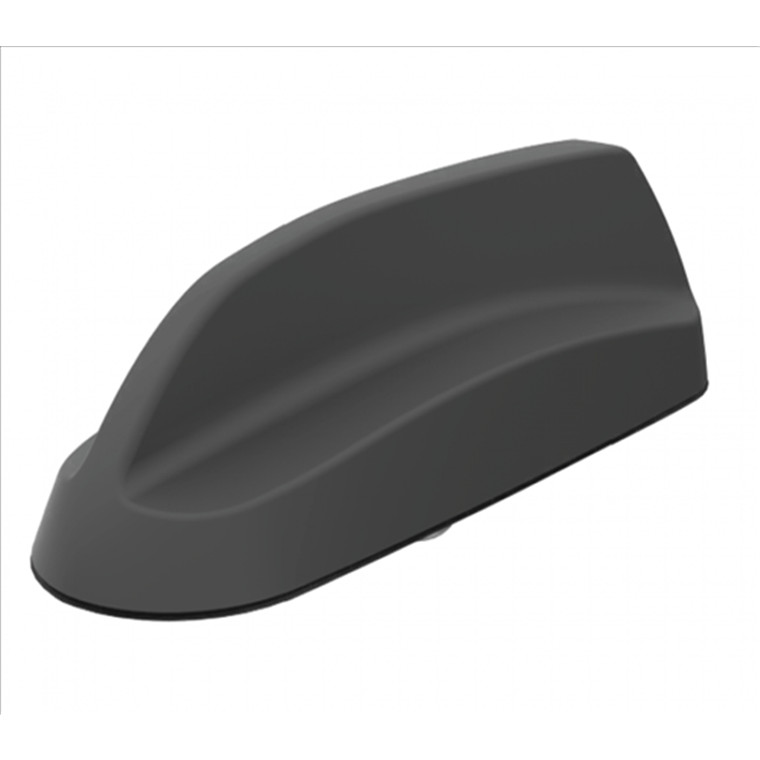

Panorama GPSD-7-27-24-58 Shark Finn Vehicle Antenna 2 Cellular (698-2700MHz) 1 GPS 2 WiFi
Out of stock
Panorama GPSD-7-27-24-58 Shark Finn Vehicle Antenna 2 Cellular (698-2700MHz) 1 GPS 2 WiFi
- Brand: Panorama
- MPN: GPSD-7-27-24-58
- Part #: NETPNM1008
- UPC:
View all shipping info
- Brand: Panorama
- MPN: GPSD-7-27-24-58
- Part #: NETPNM1008
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Panorama GPSD-7-27-24-58 Shark Finn Vehicle Antenna 2 Cellular (698-2700MHz) 1 GPS 2 WiFi
- Brand: Panorama
- MPN: GPSD-7-27-24-58
- Part #: NETPNM1008

Product URL: https://www.pbtech.com/au/product/NETPNM1008/Panorama-GPSD-7-27-24-58-Shark-Finn-Vehicle-Antenn
Features
A one size fits all, shark fin style solution for MiMo Cellular, MiMo WiFi and GPS applications requiring VHF or UHF capability.
- OEM shark fin styling
- GPS/GNSS, MiMo 2G/3G/4G cellular & optional MiMo 2.4/4.9-6GHz in one housing
- Heavy duty design for optional VHF or UHF whip
The GPSD 'MiMo Sharkee™' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas.
A further version of GPSD is available that adds 2x2 MiMo antenna function for 2.4/5.8GHz WiFi.
The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle's resale value.
Specifications
Electrical Data
2G/3G/4G Frequencies
698-960/1710-3800MHz
Global Positioning
GPS / GNSS 1562-1612
Wifi Frequencies
MiMo - 2.4/5.0GHz - (Optional)
2G/3G/4G MiMo
2x2
WiFi MiMo
Optional 2x2
Max Input Power (W)
50
Pattern
Omni-directional
Global Positioning Data
Frequency Range (MHz)
1562-1612
LNA Gain (dB)
26
Mechanical Data
Length (mm)
172
Width (mm)
61
Height (mm)
50
Mounting Data
Mounting Type
Panel Mount
Mounting Method
18mm (3/4") Mounting Bush
Whip Mounting
M6x0.75
Approvals Data
IP Rating
IP66
Flame Retardancy
UN118.01 Compliant
