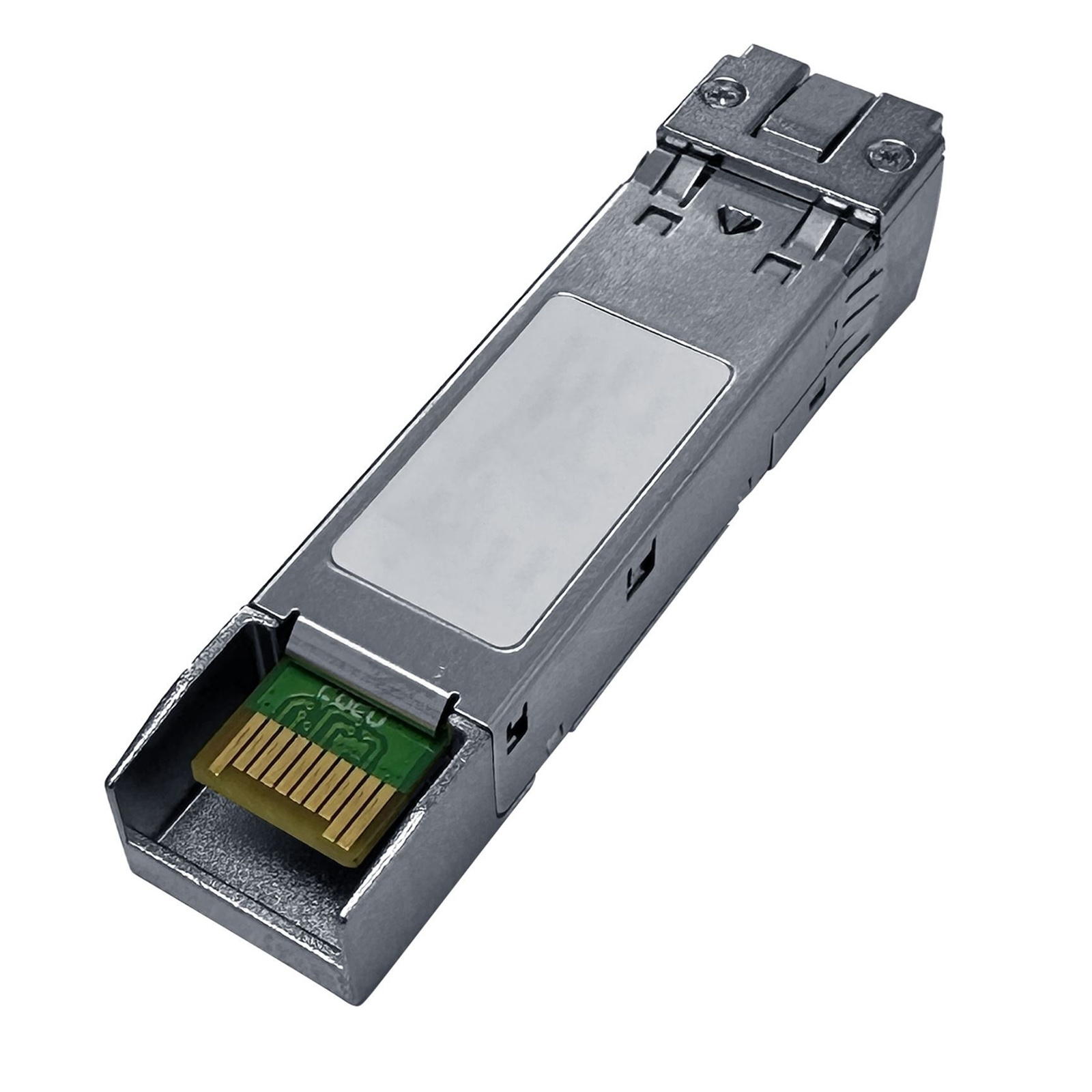

Smartoptics 1.25G SFP BiDi LC Simplex Transceiver Module for SingleMode Fibre. Dual Wave length TX/RX 1550/1310nm, DDM, 10km, 12dB Industrial Temp -40C to 85C

PB Tech price
PB Tech price
$ 86 .36
 +GST
$ 95 .00
 inc GST

Out of stock

Smartoptics 1.25G SFP BiDi LC Simplex Transceiver Module for SingleMode Fibre. Dual Wave length TX/RX 1550/1310nm, DDM, 10km, 12dB Industrial Temp -40C to 85C

  • Brand: Smartoptics
  • MPN: SOSFP1G-BX10D53
  • Part #: NETSMO1016
  • UPC:
PB Tech price
$ 86 .36 $ 95 .00
 +GST  inc GST


Delivery: Out of stock
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
  • Brand: Smartoptics
  • MPN: SOSFP1G-BX10D53
  • Part #: NETSMO1016
  • UPC:

Features

The SO-SFP-1000BASE-BX10D is a bi-directional transceiver solution operating directly on a single-fiber without the need for a separate optical filter. This is achieved by having two transceivers that inject different wavelengths into the same single-fiber.

The solution thus consists of two transceivers; SO-SFP-1000BASE-BX10D-35 and SO-SFP-1000BASE-BX10D-53, operating at 1310nm and 1550nm respectively.

- Single-fiber bi-directional communication using dual wavelengths (1310nm / 1550nm)
- Supports 1G Ethernet (GbE) and 1G Fiber Channel (FC)
- Typical reach up to 10 km over single-mode fiber
- Industrial-grade temperature versions: -40°C to +85°C
- Low power consumption: <1.0 W
- Digital diagnostics via SFF-8472 interface
- Transmitter wavelength range: 1270-1350nm or 1500-1580nm
- Receiver sensitivity: down to -21 dBm

Efficient Single-Fiber Bi-Directional SFP Solution

The SO-SFP-1000BASE-BX10D uses dual wavelengths for bi-directional communication over a single-mode fiber. This efficient approach simplifies cabling, reduces cost, and eliminates the need for separate optical filters. The system works in pairs, each using 1310nm or 1550nm for transmit/receive.

Broad Compatibility and Multi-Protocol Support

Supporting both 1G Ethernet (GbE) and 1G Fiber Channel (FC) services, these modules are suited for a variety of enterprise and data center interconnects. With a typical reach of up to 10km, they provide the performance needed for metropolitan and campus-wide networks.

Robust Industrial-Grade Operation

Available in versions rated for industrial temperature ranges (-40°C to +85°C), the SO-SFP-1000BASE-BX10D ensures reliable performance even in harsh environments. Low power consumption (<1.0W) and support for digital diagnostics via SFF-8472 interface make these modules easy to monitor and manage.

Flexible Transmitter and Receiver Design

Transmitter wavelengths range from 1270-1350nm or 1500-1580nm, with receiver sensitivity down to -21.0dBm, covering various network scenarios. The use of single LC connectors further simplifies installation and maintenance. Standard MSA compliance ensures wide integration across platforms.

Certified and Reliable Network Performance

Compliant with global standards including EMC, UL, FCC, RoHS, and TUV, these SFP BiDi modules guarantee network stability and regulatory safety. The 12dB power budget and 10km typical reach offer both reach and efficiency. It is the dependable choice for modern single-fiber optical networks.

Specifications

Technology

BiDi SFP

Transmitter Data

Output Power
Min: -9.0 dBm
Max: -3.0 dBm
Tx Wavelength: 1270 - 1350 nm* 1500 - 1580 nm**

Transmission Media

SM (1x LC)

Typical Reach

10 km

Nominal Wavelength

1310 nm* & 1550 nm**

Bit Rate Range

1.063 / 1.25 Gbps

Protocols

Eth: GbE
FC: 1G FC

Receiver Data

Minimum Input Power: -21.0 dBm***
Overload (max power): -3.0 dBm
Wavelength Range: 1530 - 1570 nm*, 1260 - 1360 nm**

Power Budget

0.0 - 12.0 dB***

Notes

*SO-SFP-1000Base-BX10D-35
**SO-SFP-1000Base-BX10D-53
***GbE

Temperature Range

0°C to +70°C; -40°C to +85°C (-I)

DDM

Yes

MSA Compliance

SFP MSA, SFF 8472

Power Consumption

< 1.0W

Regulatory Compliance

EMC: CE EN 55022:2010, EN 55024:2010
UL/Safety: UL 60950-1
FCC: 47 CFR PART 15 OCT, 2013
RoHS: RoHS 6
TUV: EN 60950-1:2006+A11+A1+A12+A2
EN 60825-1:2014
EN 60825-2:2004+A1+A2

Manufacturer Part No:
SOSFP1G-BX10D53
Brand:
Smartoptics
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETSMO1016
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Provide feedback on product content: If this product page is missing key information or you spotted a mistake please let us know.
