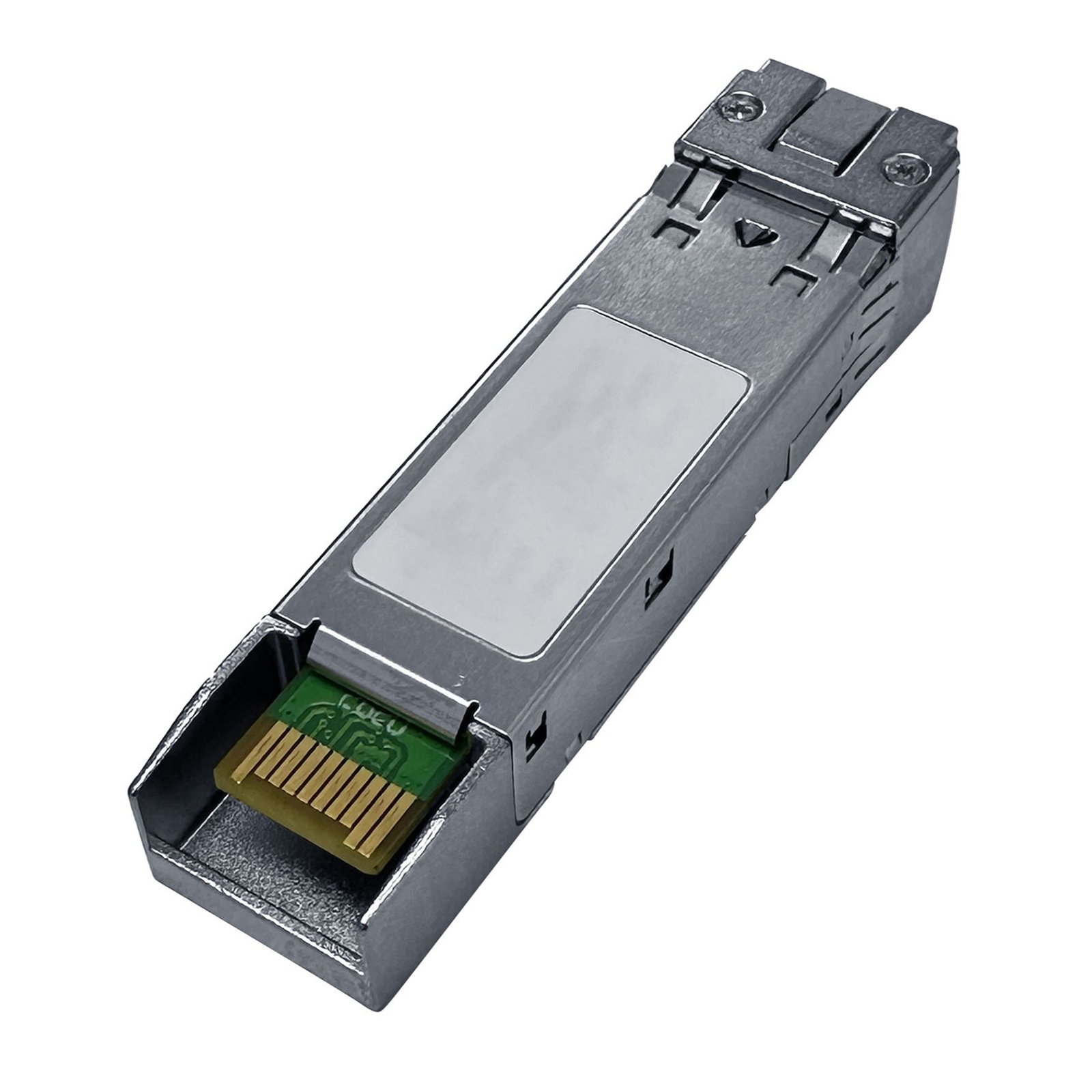

Smartoptics 1.25G SFP BiDi LC Simplex Transceiver Module for SingleMode Fibre. Dual Wave length TX/RX 1550/1310nm, DDM, 20km, 14dB Industrial Temp -40C to 85C
Out of stock
Smartoptics 1.25G SFP BiDi LC Simplex Transceiver Module for SingleMode Fibre. Dual Wave length TX/RX 1550/1310nm, DDM, 20km, 14dB Industrial Temp -40C to 85C
- Brand: Smartoptics
- MPN: SOSFP1G-BX20D53
- Part #: NETSMO1018
- UPC:
View all shipping info
- Brand: Smartoptics
- MPN: SOSFP1G-BX20D53
- Part #: NETSMO1018
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transceivers
Smartoptics 1.25G SFP BiDi LC Simplex Transceiver Module for SingleMode Fibre. Dual Wave length TX/RX 1550/1310nm, DDM, 20km, 14dB Industrial Temp -40C to 85C
- Brand: Smartoptics
- MPN: SOSFP1G-BX20D53
- Part #: NETSMO1018
Product URL: https://www.pbtech.com/au/product/NETSMO1018/Smartoptics-125G-SFP-BiDi-LC-Simplex-Transceiver-M
Features
Only compatible with SOSFP1G-BX20D35
The SO-SFP-1000BASE-BX20D is a bi-directional transceiver solution operating directly on a single-fiber without the need for a separate optical filter. This is achieved by having two transceivers that inject different wavelengths into the same single-fiber. The solution thus consists of two transceivers; SO-SFP-1000BASE-BX20D-35 and SO-SFP-1000BASE-BX20D-53, operating at 1310nm and 1550nm respectively. Using a single-fiber solution provides a cost-efficient solution for interconnect and it simplifies the patching since no separate transmit/receive direction has to be taken into account.
Optimized Single-Fiber Bi-Directional SFP Solution
The SO-SFP-1000BASE-BX20D enables high-speed data transfer over a single-mode fiber using separate transmit and receive wavelengths (1310nm and 1550nm). This design significantly reduces cabling complexity and cost in interconnects. Its plug-and-play nature streamlines installation and operation.
Reliable Long-Distance Optical Connectivity
Supporting both 1G Fiberchannel and 1G Ethernet, the module delivers robust optical performance for distances up to 20km. Enterprises and data centers benefit from secure, high-performance links with easy infrastructure requirements. The 14dB power budget further ensures dependable communication.
Flexible Dual-Temperature Range for Industrial Use
The transceivers are available in two temperature range options, including a full industrial range from -40°C to +85°C. This makes the BX20D an ideal solution for harsh or mission-critical environments. Operational stability is maintained even under extreme temperature swings.
Integrated DDM for Real-Time Monitoring
Digital diagnostic monitoring is built-in via a 2-wire serial interface according to SFF-8472 standards. Users gain real-time visibility over key parameters, enabling proactive maintenance and enhanced network security. This advanced feature is standard for all models.
Cost-Efficient and Hassle-Free Network Integration
The single-fiber approach simplifies patching, minimizing the need for additional components and reducing total costs. All compatibility and diagnostic functionality is included out of the box. BX20D provides a smart and effective solution for modern optical networks.
Specifications
Technology
BiDi SFP
Transmission media
SM (1x LC)
Typical reach
20km
Nominal wavelength Tx/Rx
1310nm/1550nm & 1550nm/1310nm
Bit rate support
1.063Gbps / 1.25Gbps
Protocol support
GbE
1G FC
Power budget
0 - 14dB
Power consumption
< 1.0W
Transmitter data
Output power
Min: -8.0dBm(average power)
Max: -3.0dBm (average power)
Typical reach
20km
Transmit wavelength
1520 - 1580nm
Receiver data
Minimum input power: -22.0dBm(average power)
Overload (max power): -3.0dBm (average power)
Power budget
0 - 14dB
Wavelength range
1260 - 1360nm
LOS Assert
Min -35dBm
LOS De-assert
Max -23dBm
LOS Hysteresis
Min 0.5dB
DDM
Yes
MSA compliance
SFF-8431, -8432, -8472
Operating temperature
0°C to +70°C
-40°C to +85°C (-I)
Storage temperature
-40°C to +85°C
