TP-Link Archer TX20UH (AX1800) Dual-Band WiFi 6 High Gain USB Wireless Adapter
TP-Link Archer TX20UH (AX1800) Dual-Band WiFi 6 High Gain USB Wireless Adapter
- Brand: TP-Link
- MPN: ARCHER TX20UH
- Part #: NETTPL0047
- UPC:
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"First of all thank you for the clerk helping me choose when I was browsing. Works great so far with full bar connection and only disconnected once briefly.So if you need for genera ...view more"
"works great does the job win11 no probs."
COMBO DEALS: Frequently Bought Together
$9.78 +GST
$10.76
Features
AX1800 High Gain Wireless USB Adapter
- Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity.
- Broader Coverage - Connect to your WiFi from wherever in your home with high-gain antennas and Beamforming.
- Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC.
- Improved Security - WPA3 provides the latest security enhancements for personal password protection.
- SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0***
Upgrades Your PC with Wi-Fi 6
Forget about buying a new PC. TX20UH delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.
Greater Coverage and Stability

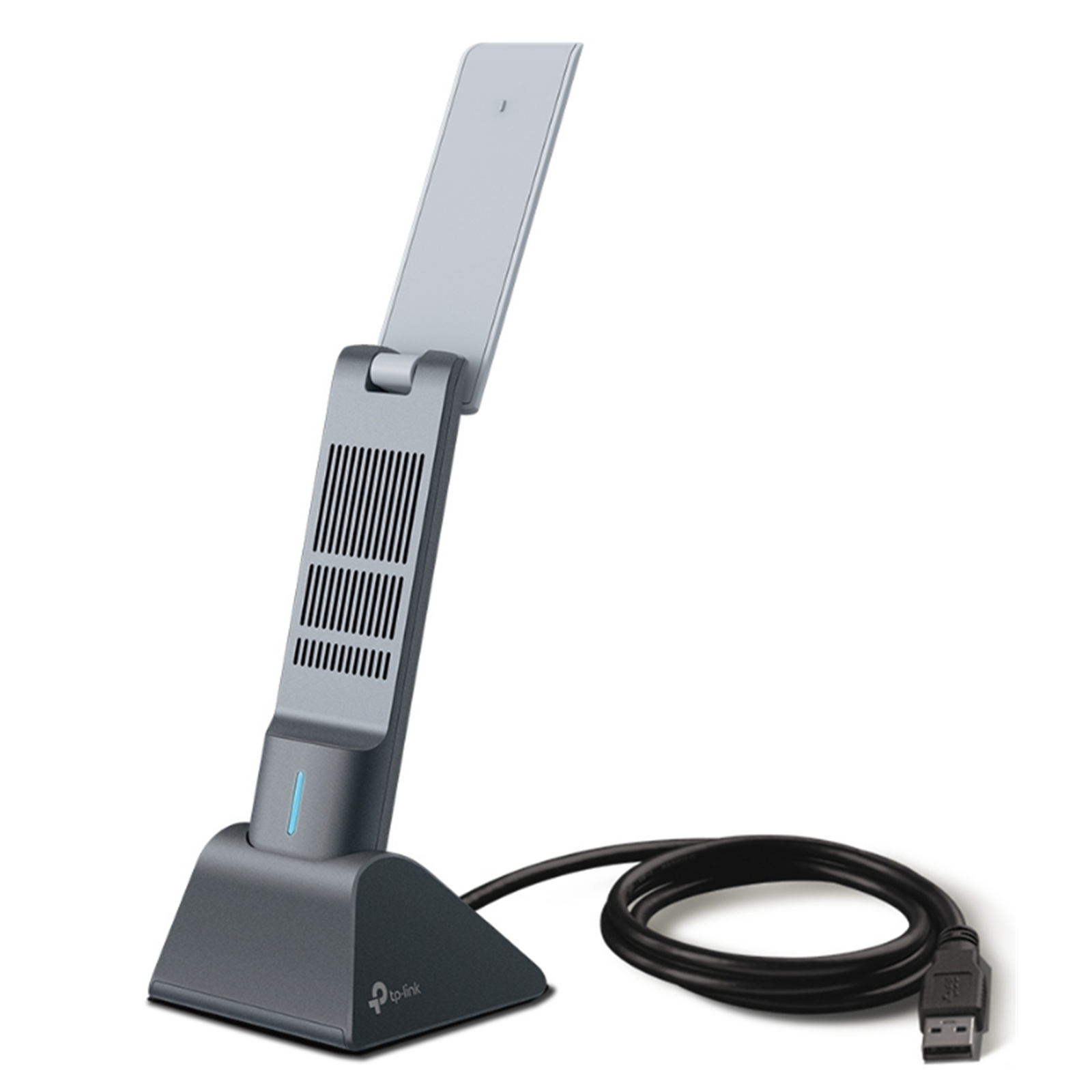

The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 - the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20UH ideal for HD streaming, online gaming and large file downloads.
Easy Use with a Flexible Design
A1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TX20UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.
Specifications
Reviews
Do you own this product?
Require manual installation on Windows 10
It's been a long time since I've had to manually install a driver to get networking adapters to work but here we are in 2-023 and I'm doing it for these. No problems once working, but definitely NOT suitable for wide deployment when each one needs a manual install on Windows 10.
.png){kind=icon}
Do Not Buy
I would not recommend this unless you want to spend 2 hours trying to debug what should be a simple plug and play device only to give up and refund it.
When I first plugged it in it downloaded the wrong drivers and blue-screened my PC, once I had the correct drivers installed it worked but would regularly turn off, disconnecting me from the WIFI for a good 5-10sec before turning back on.
After doing a bit of research I found this is a recurring issue with this device that for some reason is not mentioned in any online reviews and does not seem to have a fix.
I will say that when it wasn't blue-screening my PC or disconnecting, the speed...view more
Works great for general purpose
First of all thank you for the clerk helping me choose when I was browsing. Works great so far with full bar connection and only disconnected once briefly.So if you need for general purpose I would highly recommend but if it’s for gaming maybe should look for another option as brief disconnection might happen
Got one of these
works great does the job win11 no probs.
Accessories
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular USB WiFi Adapters
TP-Link Archer T2U (AC600) Dual-Band WiFi 5 Nano USB Wireless...
TP-Link TL-WN725N (N150) WiFi 4 Nano USB Wireless Adapter
TP-Link Archer T4U (AC1300) Dual-Band WiFi 5 USB Wireless Adapter
UGREEN UG-20204 Ac650 Usb Wifi Dual-Band Dongle
TP-Link Archer TX20U Nano (AX1800) Dual-Band WiFi 6 Nano USB...
TP-Link Archer TX20UH (AX1800) Dual-Band WiFi 6 High Gain USB Wireless Adapter
- Brand: TP-Link
- MPN: ARCHER TX20UH
- Part #: NETTPL0047
Product URL: https://www.pbtech.com/au/product/NETTPL0047/TP-Link-Archer-TX20UH-AX1800-Dual-Band-WiFi-6-High?is-review=1
Features
AX1800 High Gain Wireless USB Adapter
- Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity.
- Broader Coverage - Connect to your WiFi from wherever in your home with high-gain antennas and Beamforming.
- Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC.
- Improved Security - WPA3 provides the latest security enhancements for personal password protection.
- SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0***
Upgrades Your PC with Wi-Fi 6
Forget about buying a new PC. TX20UH delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.
Greater Coverage and Stability
The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 - the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20UH ideal for HD streaming, online gaming and large file downloads.
Easy Use with a Flexible Design
A1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TX20UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.
Specifications
HARDWARE FEATURES
LED
Status
Dimensions
30.5 x 14.8 x 111.7 mm (1.2 x 0.58 x 4.4 in)
Antenna
2x High-Gain Dual-Band Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/b/g/n/ac/ax
Signal Rate
5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Transmit Power
5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)
Wireless Modes
Infrastructure mode
Wireless Security
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
OTHERS

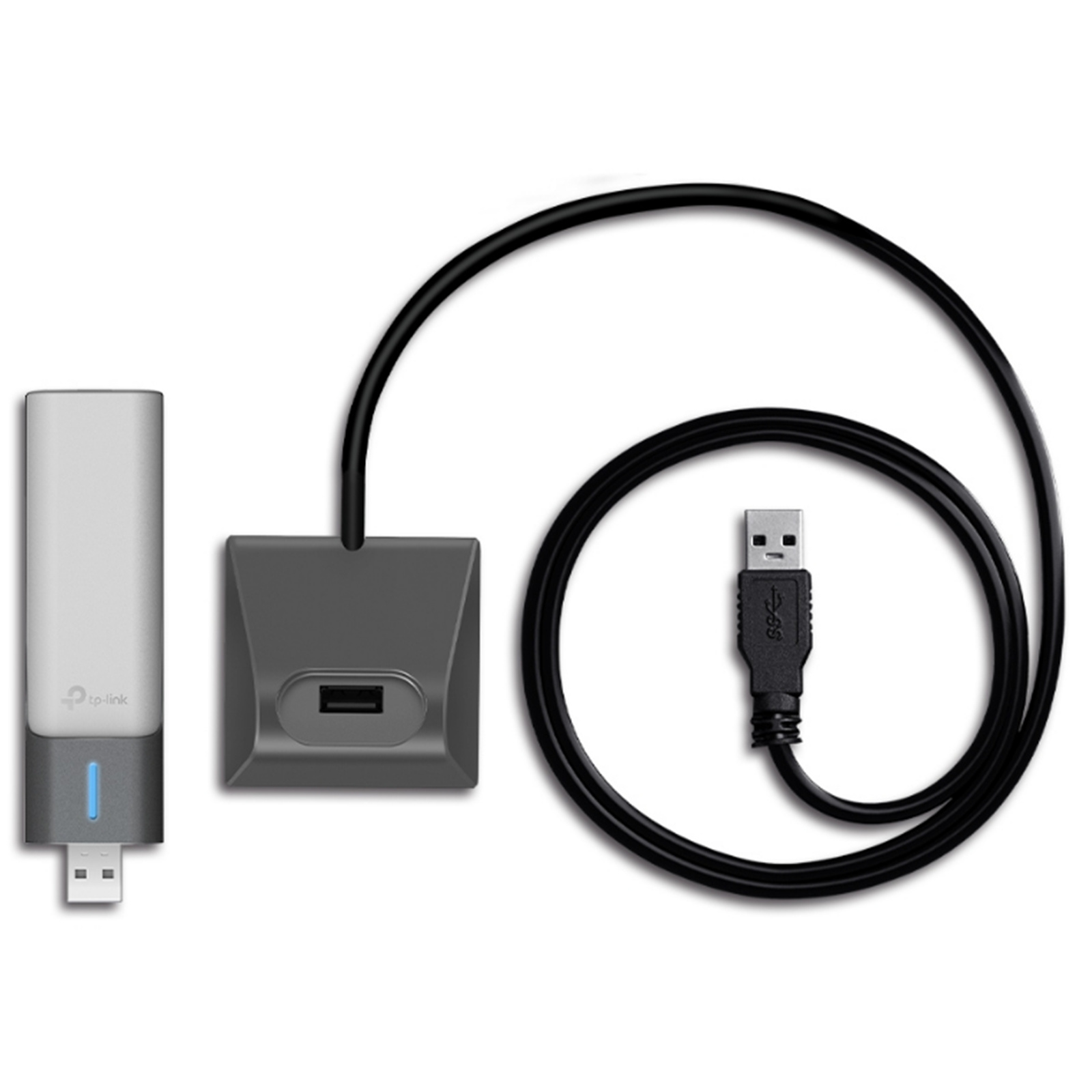

Package Contents
AX1800 High Gain Wireless USB Adapter Archer TX20UH
Quick Installation Guide
USB 3.0 Cradle
System Requirements
Supported operating systems include Windows 10, 11
Environment
Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
