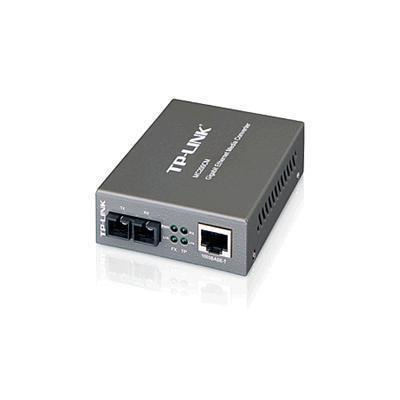

TP-Link MC200CM Gigabit Media Converter - Fiber SC - RJ45, Multi-mode, Up to 0.5km

Normally $69.57
Normally $76.53
You save 5%
You save 5%
$ 65 .40
 +GST
$ 71 .94
 inc GST
$65.40  +GST
$71.94  inc GST

TP-Link MC200CM Gigabit Media Converter - Fiber SC - RJ45, Multi-mode, Up to 0.5km

  • Brand: TP-Link
  • MPN: MC200CM
  • Part #: NETTPL0100
  • UPC: 845973030438
Normally $69.57
Normally $76.53
You save 5%
You save 5%
PB Tech price
$ 65 .40 $ 71 .94
 +GST  inc GST


Delivery: Order now and it ships on 15 May
Estimated Delivery Times
NSW, VIC, ACT, QLD - Within 4-8 working days
SA, WA, TAS, NT - Within 8-12 working days

View all shipping info
$65.40  +GST
$71.94  inc GST

Six easy payments of $11.99 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Features

What This Product Does

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK�s 19�system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 0.5km
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply

Specifications

Standards and Protocols
IEEE 802.3ab,
IEEE 802.3z,
IEEE 802.3x

Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber
Extends fiber distance up to 0.22km using 2.5/125um fiber

Ports
1 x 1000M SC port
1 x 1000M RJ45 port (Auto MDI/MDIX)

Network Media 1000BASE-FX
Multi-mode Fiber

Network Media 1000BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

LED Indicators
PWR, LINK, RX

Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply
External Power Adapter

Safety & Emission
FCC, CE

Operating Temperature:
0 - 40 Degrees C

Storage Temperature:
-40 - 70 Degrees C

Operating Humidity:
10% - 90% non-condensing

Storage Humidity:
5% - 90% non-condensing

Manufacturer Part No:
MC200CM
Brand:
Product Type:
Gigabit Media Converter
UPC
845973030438
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETTPL0100
Product Model:
MC200CM
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
