TP-Link TL-POE170S Gigabit PoE++ Injector, 802.3af/at/bt, up to 60W
- Brand: TP-Link
- MPN: TL-POE170S
- Part #: NETTPL0170
Product URL: https://www.pbtech.com/au/product/NETTPL0170/TP-Link-TL-POE170S-Gigabit-PoE-Injector-8023afatbt
Features

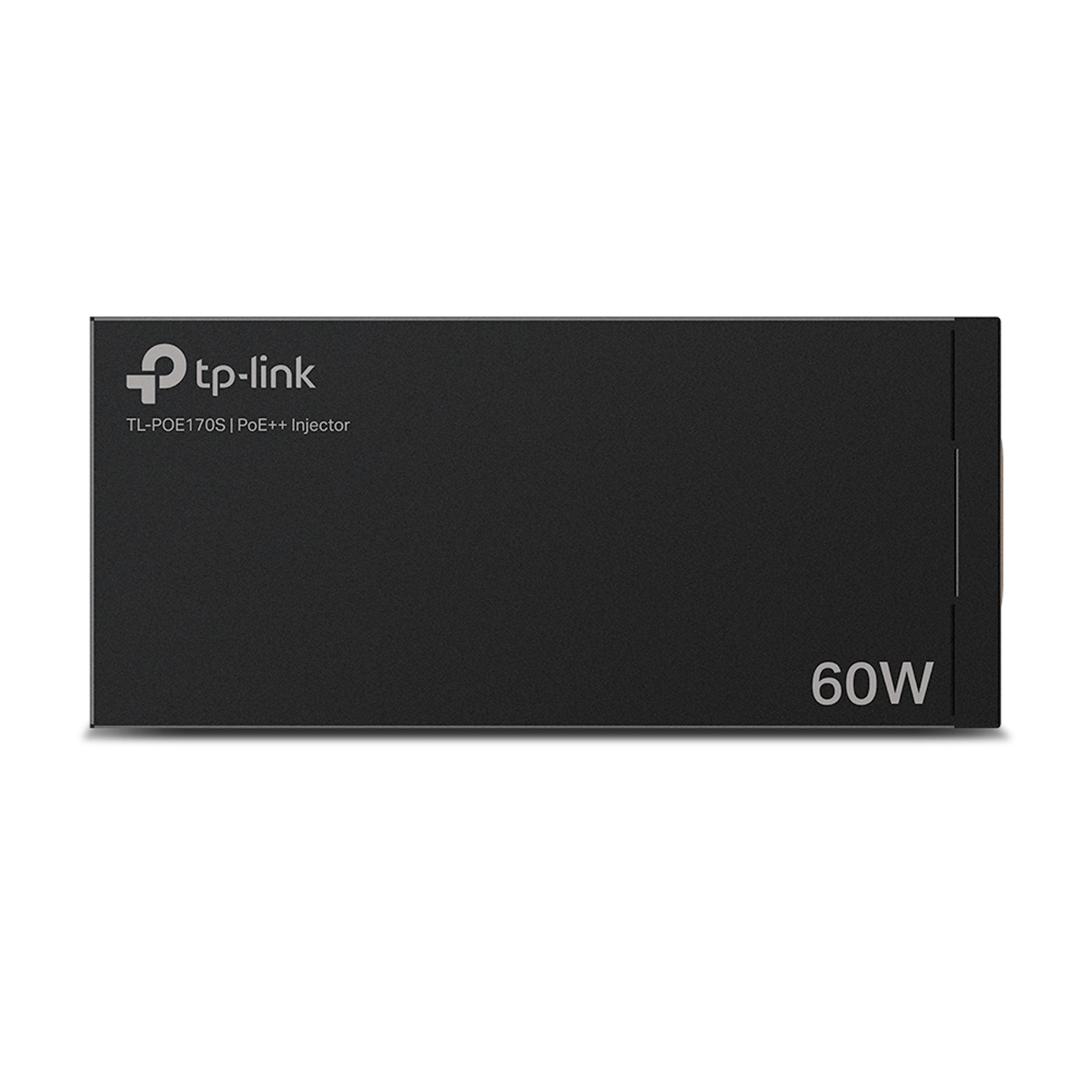

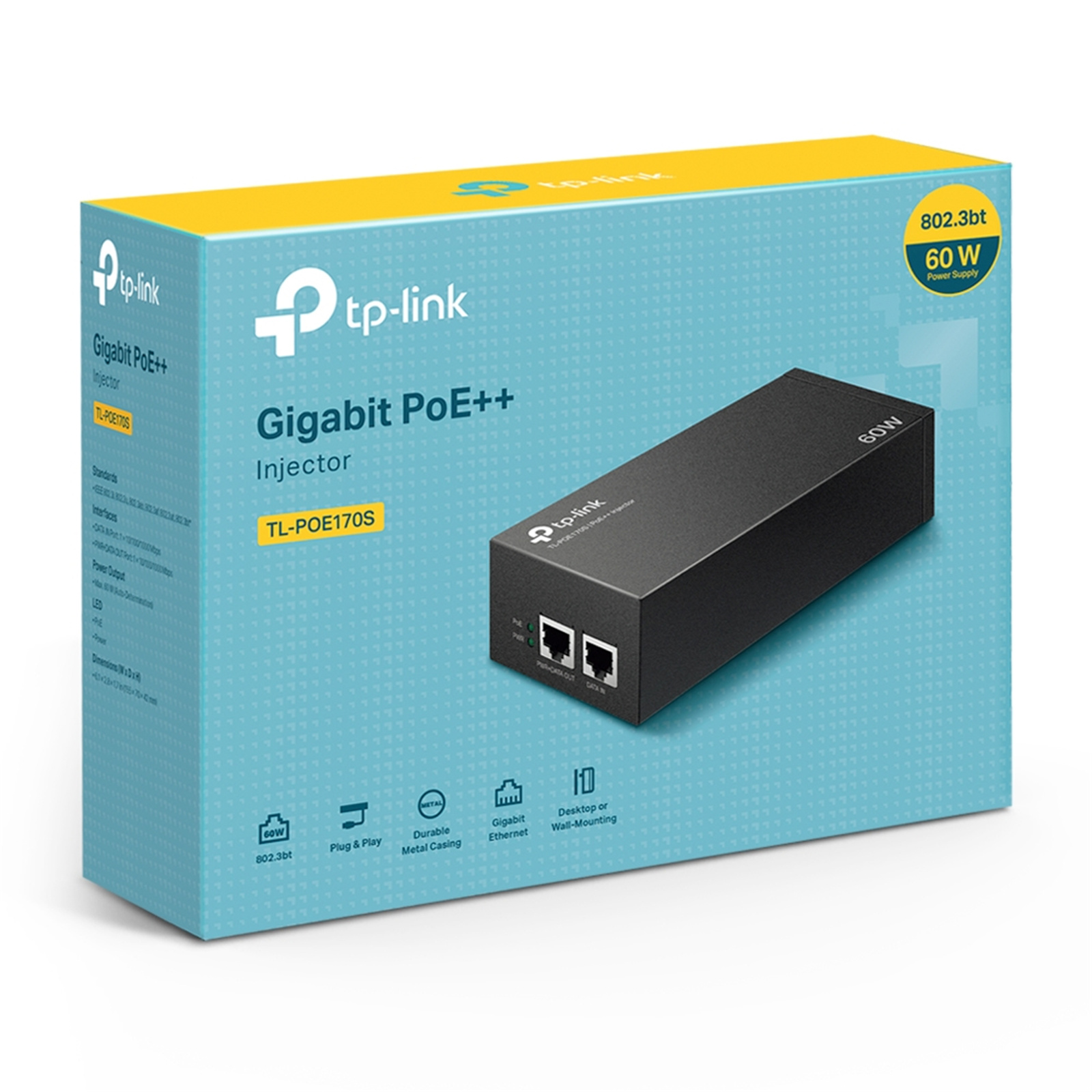

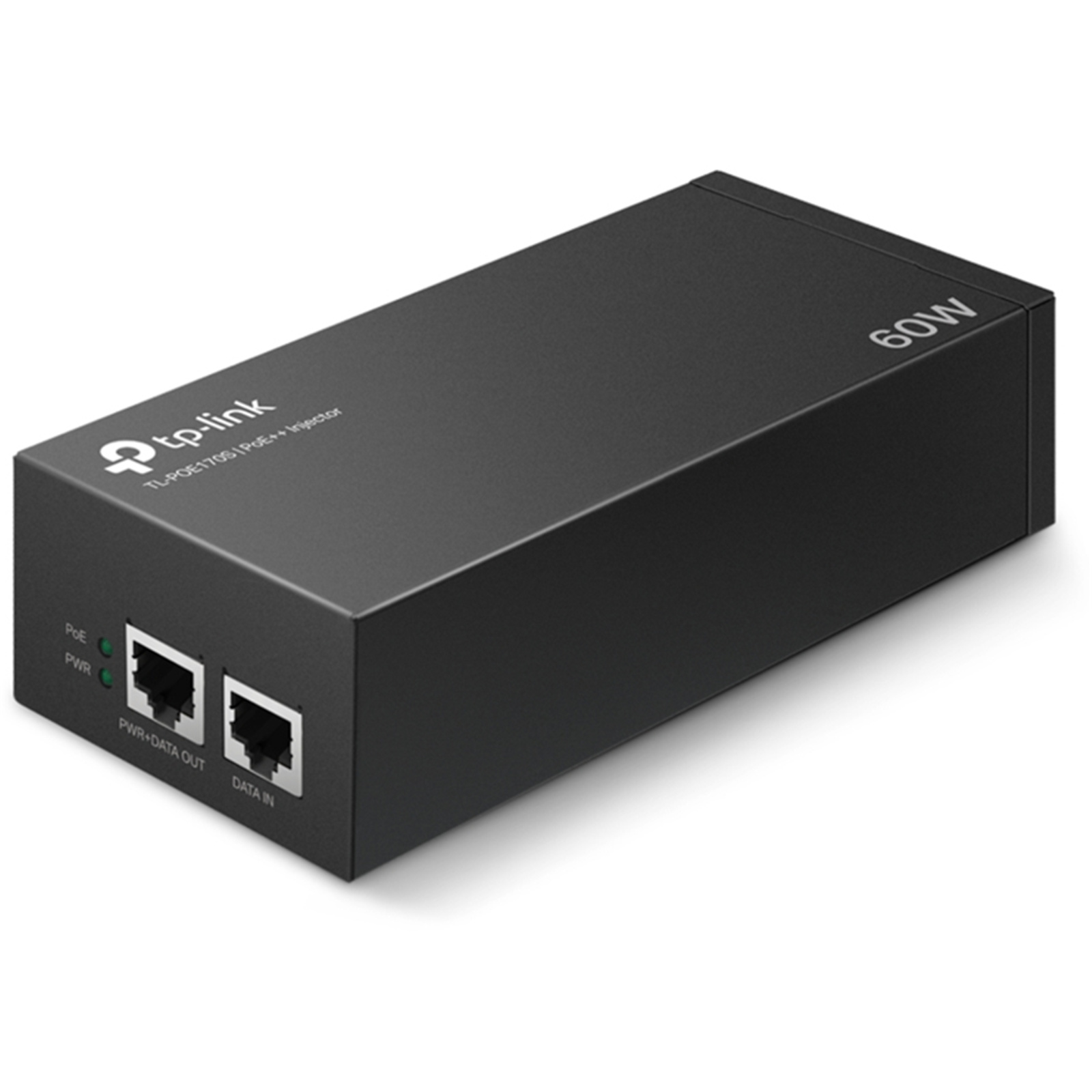

TL-POE170S PoE++ Injector
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation requires no configuration
- Integrated power supply
- Durable metal casing
What This Product Does
The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
Specifications
NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
GENERAL
Certification
FCC, CE, RoHS
Environment
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
Material
Metal Casing
HARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
Dimensions ( W x D x H )
6.1*2.8*1.7 in (155*70*42 mm)
