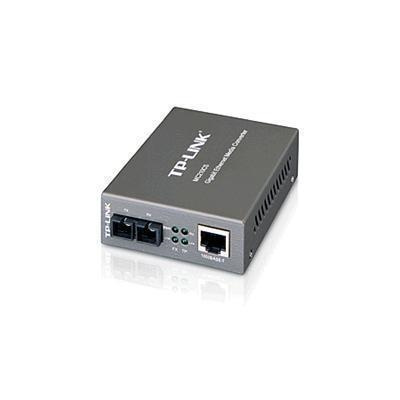

TP-Link MC210CS Gigabit Media Converter - Fiber SC - RJ45, Single-mode, Up to 15km

  • Brand: TP-Link
  • MPN: MC210CS
  • Part #: NETTPL0210
  • UPC: 845973030445
Normally $78.26
Normally $86.09
You save 6%
You save 6%
PB Tech price
$ 73 .21 $ 80 .53
 +GST  inc GST


Delivery: Order now and it ships on 03 May
Estimated Delivery Times
NSW, VIC, ACT, QLD - Within 4-8 working days
SA, WA, TAS, NT - Within 8-12 working days

View all shipping info
$73.21  +GST
$80.53  inc GST

Six easy payments of $13.42 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Features

Gigabit Ethernet Media Converter
MC210CS



Highlights:

- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 15km


What This Product Does

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK�s 19��system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.

Specifications

MEDIA CONVERTER & MODULE

Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 15km

Ports 1 1000M SC port
1 1000M RJ45 port (Auto MDI/MDIX)

Network Media 1000BASE-FX
Single-mode Fiber

Network Media 1000BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

LED Indicators
PWR, LINK, RX

Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply
External Power Adapter

Safety & Emission
FCC, CE

Environment Operating Temperature:
0~40 (32~104)

Storage Temperature:
-40~70 (-40~158)

Operating Humidity:
10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Manufacturer Part No:
MC210CS
Brand:
Product Type:
Gigabit Media Converter
UPC
845973030445
Product Family:
-
Shipping Weight:
0.509 kg
PB Part No:
NETTPL0210
Product Model:
MC210CS
Warranty: 36 months *
