TP-Link POE260R 2.5G PoE+ Splitter
- Brand: TP-Link
- MPN: POE260R
- Part #: NETTPL0261
Product URL: https://www.pbtech.com/au/product/NETTPL0261/TP-Link-POE260R-25G-PoE-Splitter
Features

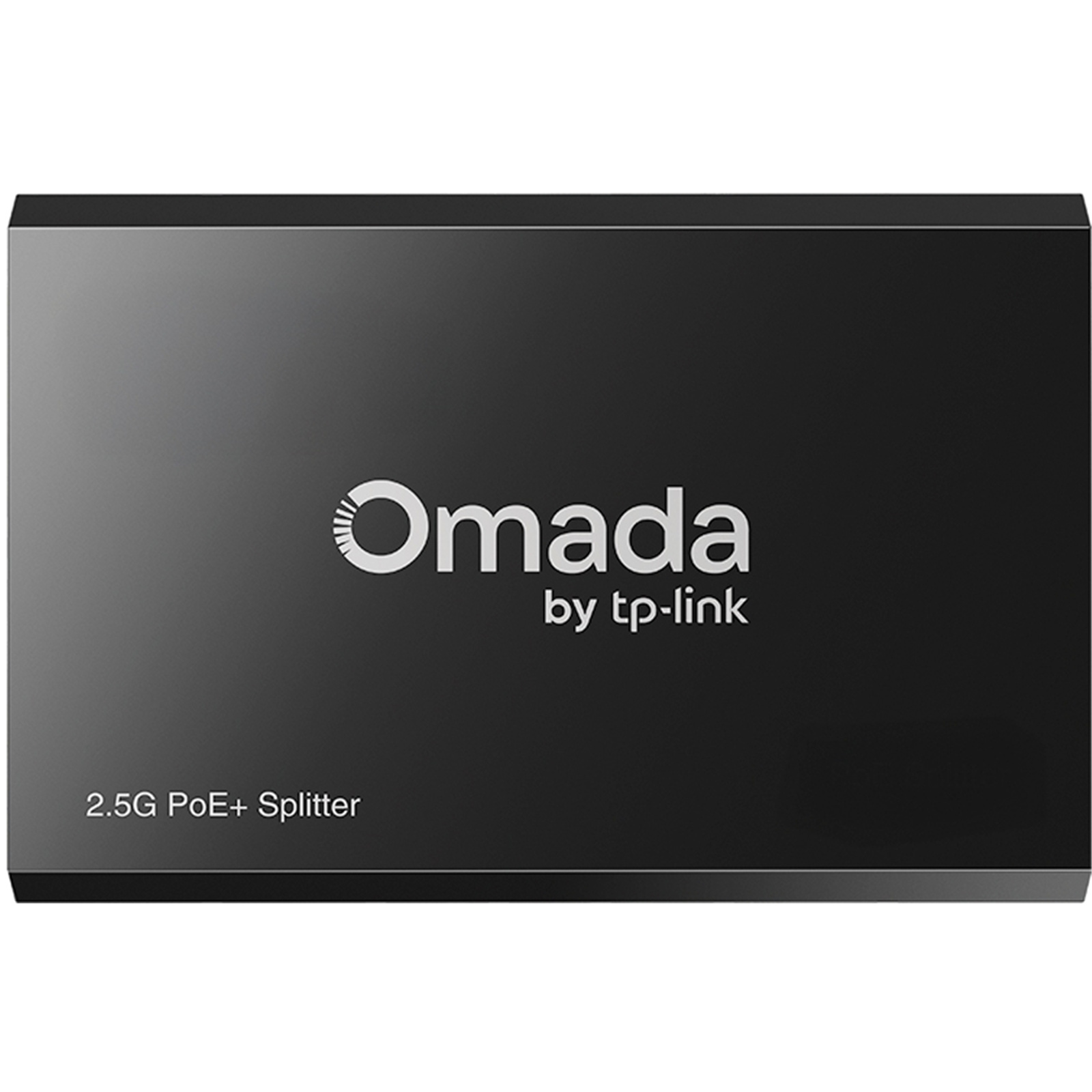

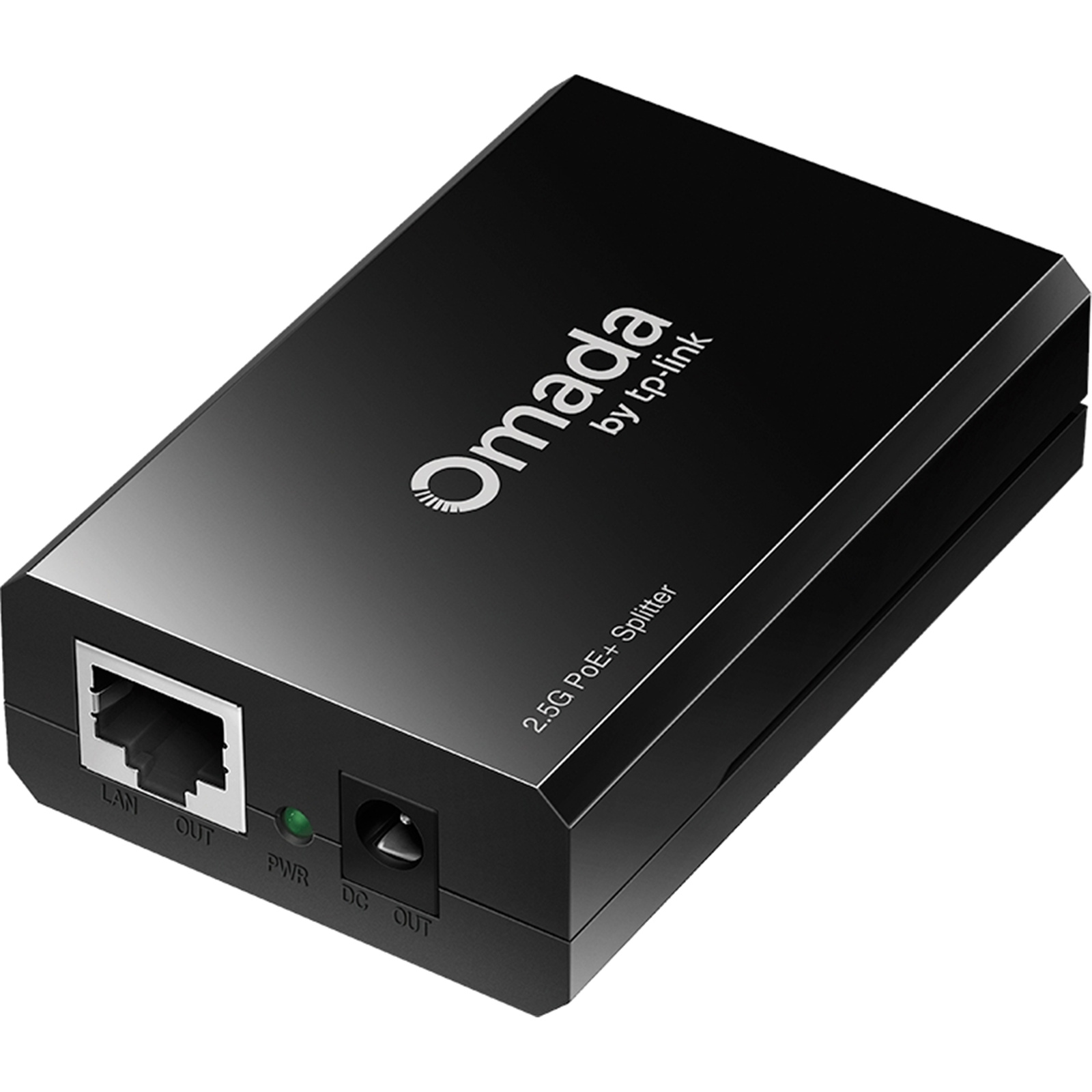

POE260R - Omada 2.5G PoE+ Splitter
- IEEE 802.3af/at compliant
- Selectable power output
- 2.5 Gigabit speed support
- Plug-and-Play, no configuration required
What This Product Does
The POE260R is a 2.5 Gigabit PoE+ splitter that delivers high-speed data and converts standard PoE+ input into a flexible 12V/9V/5V DC output, powering various devices over existing network cables without requiring a separate power adapter.
Specifications
HARDWARE FEATURES
Interface
10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port
10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port
12V / 9V / 5V DC OUT Power Output Port
Network Media
10BASE-T: 2-pair UTP/STP of Cat. 3,4,5 (maximum 100 m)
100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (maximum 100 m)
1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (maximum 100 m)
2.5GBASE-T: 4-pair UTP/STP of Cat. 5e or above (maximum 100 m)
Power Supply
12VDC/ 2A, 9VDC/ 2A or 5VDC/ 2A
Basic Function
Compatible With IEEE 802.3af/at Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Output
LED
PWR
Dimensions ( W x D x H )
3.2 × 2.1 × 0.9 in. (80.8 × 54 × 24 mm)
SOFTWARE FEATURES
Basic Function
Compatible With IEEE 802.3af/at Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply
OTHERS
Certification
FCC, CE, RoHS
Package Content
POE260R
Power Cord
Installation Guide
Environment
Operating Temperature: -5℃~45℃ (23℉~113℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
