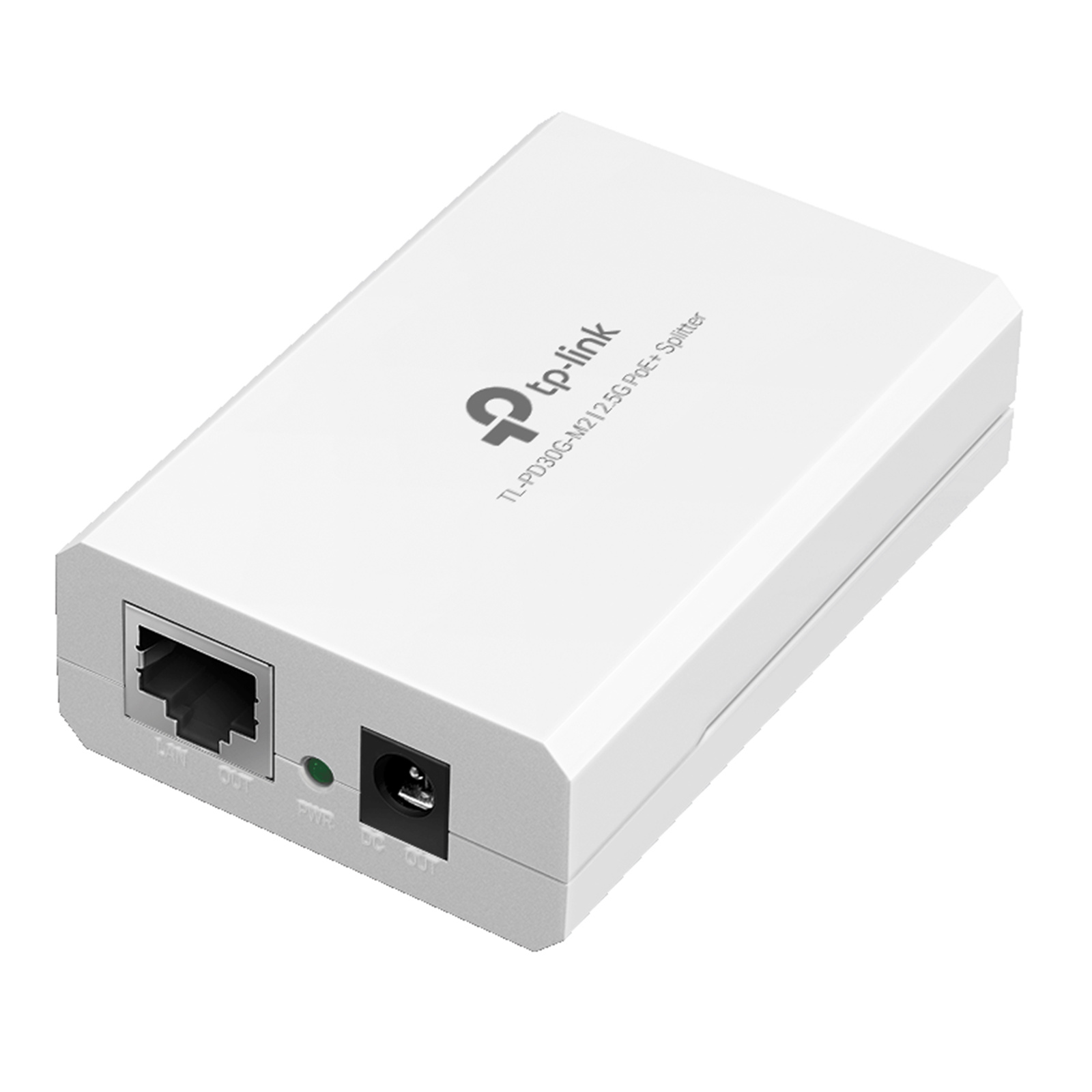

TP-Link TL-PD30G-M2 2.5G PoE+ Splitter 2.5 Gbps RJ45 x 2
- Brand: TP-Link
- MPN: TL-PD30G-M2
- Part #: NETTPL03021

Product URL: https://www.pbtech.com/au/product/NETTPL03021/TP-Link-TL-PD30G-M2-25G-PoE-Splitter-25-Gbps-RJ45
Features
2.5G PoE+ Splitter
- IEEE802.3af/at compliant
- Selectable power output
- Plug-and-Play, requires no configuration
Specifications
Hardware
Interface
1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port
1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port
1 12V / 9V / 5V DC OUT Power Output Port
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
2.5GBASE-T: UTP category 5e, 6 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Power Supply
12VDC 2A, 9VDC 2A, 5VDC 2A
Basic Function
Compatible with IEEE 802.3af/at compliant PSEs
Delivers power up to 100 meters
Optional 12VDC, 9VDC or 5VDC power supply
LED
ON: Connected to PSE correctly
Off: No PSE is connected
Dimensions ( W x D x H )
3.2*2.1*0.9 in (80.8*54*24 mm)
Software
Basic Function
Compatible with IEEE 802.3af/at compliant PSEs
Delivers power up to 100 meters
Optional 12VDC, 9VDC or 5VDC power supply
Others
Certification
FCC, CE, RoHS
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: -5°C~45°C (23°F~113°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
