Features

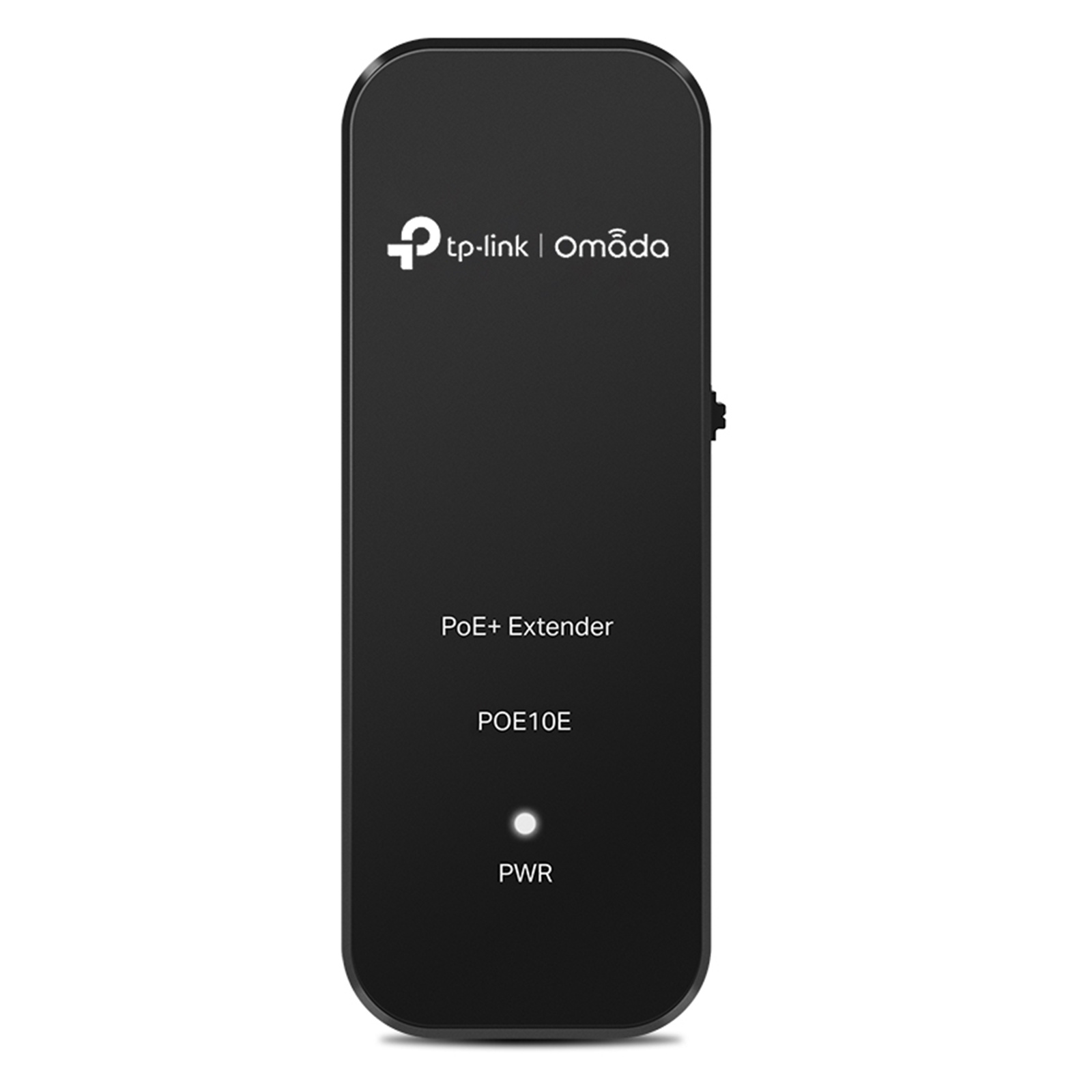

Omada Fast Ethernet PoE+ Extender
- 2×10/100 Mbps ports
- Compliance with 802.3af/at devices
- Supplies up to 20 W, which meets the power consumption requirements of most IP cameras
- Extends a PoE/PoE+ network connection an additional 100 m/250 m (10 Mbps mode) from the PoE power sourcing equipment
- Plug and Play, no configuration required
Specifications
NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u
HARDWARE FEATURES
Network Media
UTP/STP of Cat.5E or above (based on the standards that the connected devices comply with)
Ports
- 1× 10 Mbps /100 Mbps RJ45 PoE IN Port
- 1× 10 Mbps /100 Mbps RJ45 PoE OUT Port, up to 20 W
Basic Function
- Complaince with 802.3af/at devies
- Up to 250 m data and power transmitting range under 10Mbps mode
- Plug and Play
Dimensions ( W x D x H )
2.33*0.85*0.52 in (71*26*16 mm)
OTHERS
Certification
FCC, CE, RoHS
Package Contents
- POE10E
- Installation Guide
Environment
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90%RH non-condensing
- Storage Humidity: 5% to 90%RH non-condensing
